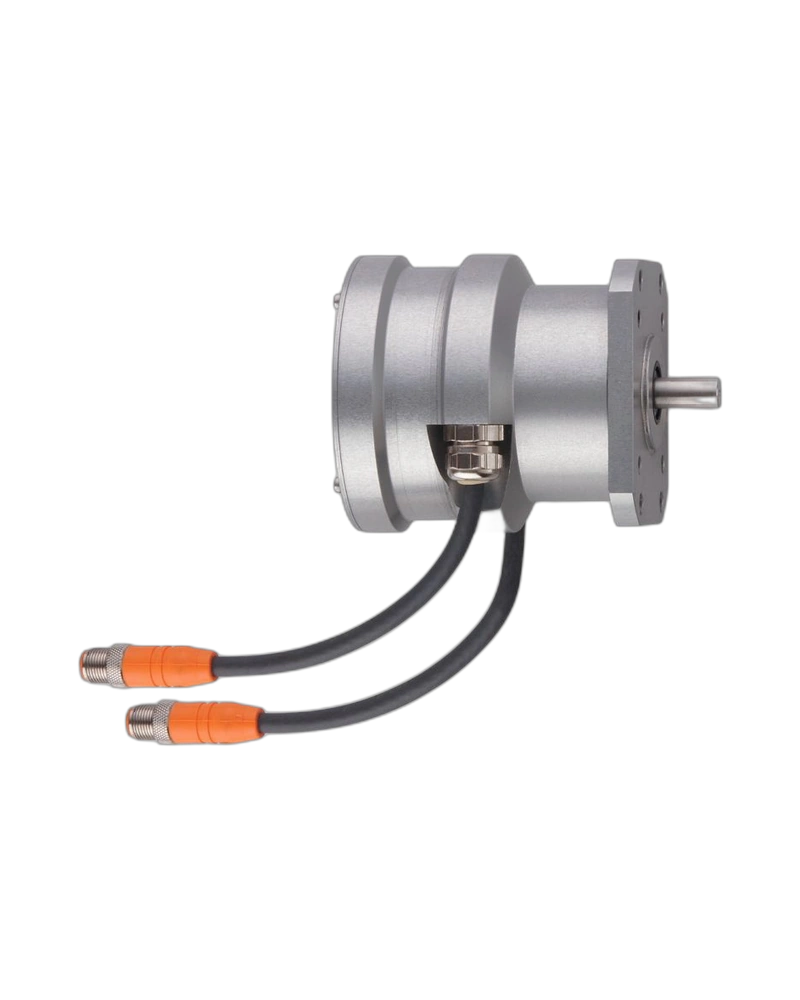

The RN6065 is an absolute singleturn encoder with a double-shaft configuration for precise rotary position measurement. It uses an SSI data interface and a 10 mm solid shaft arrangement. The encoder provides 8,192-step position resolution for accurate angular feedback. Its aluminium housing measures 89 mm in diameter and 116 mm in length. The robust design supports industrial motion-control and positioning applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The RN6065 measures absolute angular position within a single revolution. Its high-resolution position output supports precise machine positioning. SSI provides synchronous digital communication with the controller. Absolute feedback simplifies machine restart and position recovery. This makes it suitable for automated motion systems.
The double-shaft configuration provides mechanical flexibility for specialised machine installations. The shaft arrangement can support applications requiring access to both sides of the encoder. Solid mechanical coupling provides stable rotary feedback. The industrial housing supports continuous operation. Correct shaft alignment is important for reliable measurement.
The encoder uses an SSI data interface. Position information is transmitted synchronously to compatible control systems. The digital interface supports precise machine-axis feedback. Industrial connectors simplify electrical integration. This architecture is suitable for servo and motion-control applications.
Absolute singleturn
Double-shaft design
High-resolution position feedback
SSI interface
Solid-shaft construction
Industrial housing
Rotary position measurement
Digital position output
Servo-system compatibility
Motion-control applications
Machine axes
Servo positioning
Rotary tables
Robotics
Industrial drives
Motion control
Position feedback
Automated machinery
Absolute measurement provides a direct position value within the measured revolution. This reduces dependence on reference movements. The encoder can be integrated into precision machine axes. SSI communication supports deterministic data transfer. This is useful for positioning and motion-control applications.
The double-shaft design provides additional installation flexibility. It can be integrated into specialised rotary mechanisms. The encoder is suitable for continuous machine operation. Proper mechanical mounting reduces shaft loading and alignment errors. Its industrial construction supports demanding applications.
| Specification | Value |
|---|---|
| Model | RN6065 |
| Encoder type | Absolute singleturn |
| Resolution | 8,192 steps |
| Interface | SSI |
| Shaft design | Double shaft |
| Shaft diameter | 10 mm |
| Shaft material | Stainless steel 303 |
| Housing material | Aluminium |
| Flange material | Anodised aluminium |
| Diameter | 89 mm |
| Length | 116 mm |
| Max. mechanical speed | 6,000 rpm |
| Starting torque | 0.04 Nm |
| Axial shaft load | 40 N |
| Radial shaft load | 110 N |
| Shock resistance | <50 g / 6 ms |
| Vibration resistance | <10 g |
| MTTF | 289 years |
| Connection | M12 |
| Cable | 0.15 m PUR |
| Position type | Absolute |
| Measurement | Singleturn |
| Data transmission | Synchronous serial |
| Output | SSI |
| Mounting | Solid shaft |
| Application | Rotary position |
| Housing shape | Cylindrical |
| Environmental design | Industrial |
| Manufacturer | IFM |
