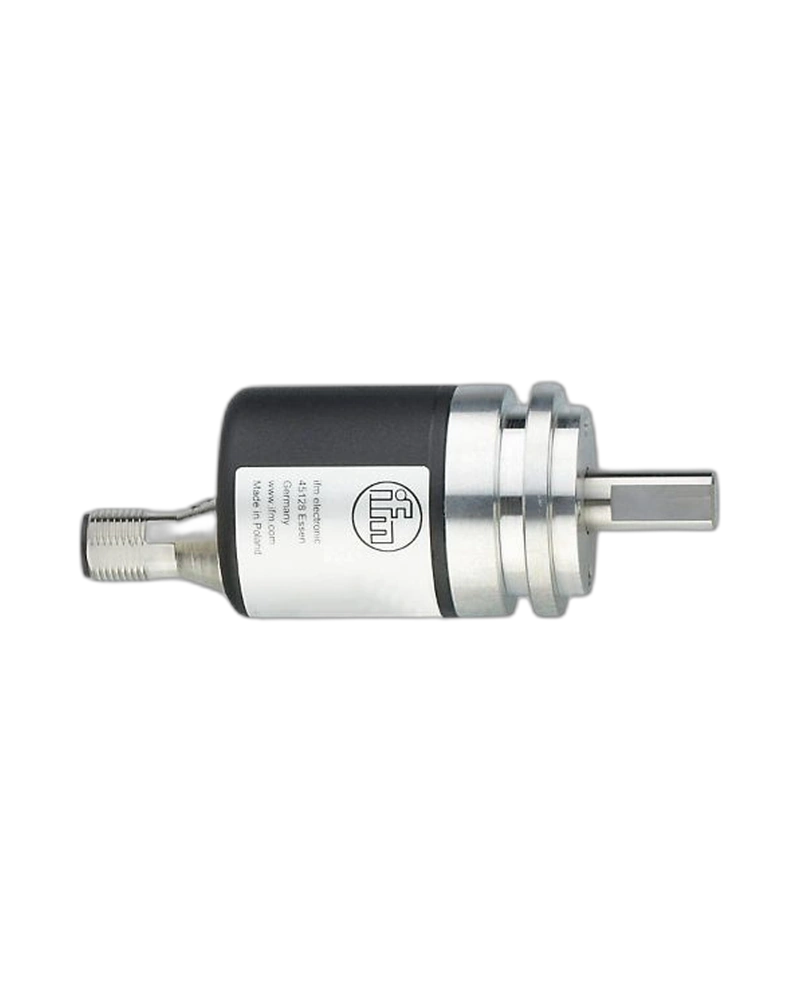

The RM9001 is an absolute multiturn encoder with a solid shaft designed for rotary position measurement in mobile and industrial machinery. It provides 4,096 steps per revolution and 4,096 revolutions, corresponding to 24-bit total resolution. CANopen communication enables integration with distributed control systems. The encoder uses a 10 mm solid shaft and M12 connector. It is suitable for angle, speed and position monitoring in demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The RM9001 provides absolute position feedback over multiple revolutions. This allows extended rotary movement to be monitored without relying solely on incremental pulse counting. Position information can be integrated into CANopen-based control systems. Absolute measurement supports reliable machine restart. The encoder is suitable for demanding rotary positioning tasks.
The RM9001 uses CANopen communication for digital machine integration. CANopen allows position and configuration data to be exchanged with the controller. The encoder is part of IFM's multiturn encoder range supported for CANopen systems. This makes it suitable for distributed automation architectures. Digital communication simplifies system integration.
The solid shaft provides a conventional mechanical mounting interface. It can be connected to motors, drives and machine axes. The encoder is designed for continuous rotary operation. Proper shaft alignment helps protect measurement accuracy. The industrial construction supports demanding machine environments.
Absolute multiturn measurement
Solid shaft
CANopen interface
Digital position feedback
Rotary position measurement
Multiturn tracking
Speed monitoring
Angle measurement
Industrial construction
Machine-control compatibility
Mobile machinery
Machine positioning
Motor feedback
Conveyors
Material handling
Rotary equipment
Industrial automation
Motion-control systems
The RM9001 provides absolute position information for automated machine axes. Multiturn measurement supports applications involving extended rotary travel. CANopen allows position data to be transferred to compatible controllers. This supports coordinated machine movement. The encoder is suitable for positioning and feedback applications.
The encoder can be incorporated into CANopen networks. Digital communication supports parameterisation and machine diagnostics. The solid shaft simplifies mechanical integration. Its position feedback can be used by PLC and motion controllers. This makes the RM9001 suitable for connected industrial equipment.
| Specification | Value |
|---|---|
| Model | RM9001 |
| Encoder type | Absolute multiturn |
| Resolution/revolution | 4,096 steps |
| Multiturn range | 4,096 revolutions |
| Total resolution | 24 bit |
| Communication | CANopen |
| Shaft design | Solid shaft |
| Shaft diameter | 10 mm |
| Connector | M12 |
| Position output | CANopen |
| Speed measurement | Yes |
| Angle measurement | Yes |
| Preset function | Yes |
| Resolution setting | Programmable |
| Total resolution setting | Programmable |
| Counting direction | Programmable |
| Limit switches | Programmable |
| Cam functions | Programmable |
| Position data | 32-bit capable |
| Measurement type | Multiturn |
| Position type | Absolute |
| Application | Mobile machinery |
| Application | Industrial automation |
| Mechanical mounting | Solid shaft |
| Electrical interface | CAN |
| Network protocol | CANopen |
| Shaft coupling | Direct |
| Control integration | Controller/PLC |
| Rotary measurement | Yes |
| Manufacturer | IFM |
