Product Overview

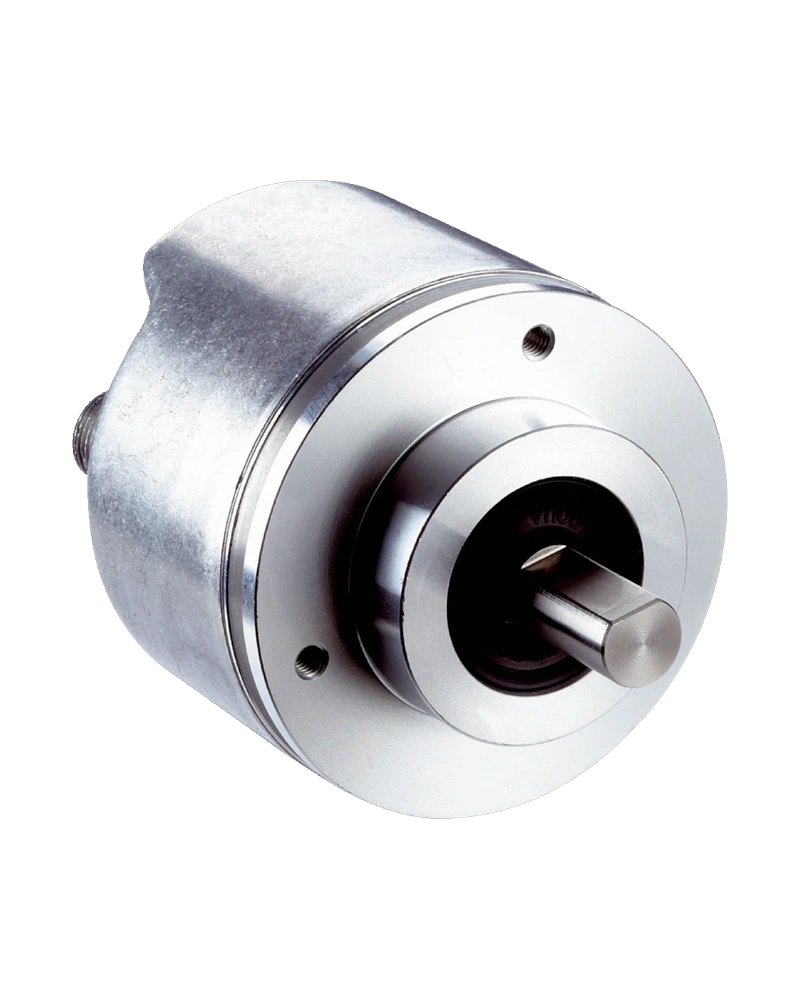

The SICK A3M60 is a high-resolution absolute encoder designed for precise position measurement in industrial automation environments. It delivers reliable, repeatable positioning data with a maximum resolution of 8,192 steps per revolution (13-bit), enabling accurate feedback in demanding applications. The encoder features a robust aluminum housing and stainless steel shaft, ensuring durability under continuous operation. With an IP65 rating on the shaft side and IP67 on the housing side, it offers excellent protection against dust and water ingress. Designed for integration with PROFIBUS DP (DPV0) communication, the A3M60 provides real-time position data at up to 12 MBaud transmission rates. Its compact design, weighing 0.28 kg, makes it suitable for space-constrained installations while maintaining high performance and reliability in dynamic industrial settings.

Key Features and Technology

The A3M60 leverages a 13-bit resolution system to achieve up to 8,192 steps per revolution, with a maximum resolution of 8,192 × 8,192 steps over full revolutions. This high-resolution capability ensures precise position feedback even under varying operational conditions. The encoder exhibits excellent repeatability, with a standard deviation σr of 0.25° at room temperature, meeting stringent accuracy requirements. It includes reverse polarity protection to safeguard against electrical damage during installation or operation. Self-warming occurs at maximum operating speed, reaching a 30 K increase in temperature, which ensures stable performance under high-speed conditions. After self-heating, the device must remain energized when ambient temperatures fall below 0°C to maintain operational integrity and accuracy.

Technical Characteristics

The SICK A3M60 absolute encoder operates within a supply voltage range of 10 to 32 V DC and supports reverse polarity protection. It features a 10 mm shaft diameter made from stainless steel, with a permissible radial load of 80 N and axial load of 40 N. The housing is constructed from aluminum, providing mechanical strength and thermal stability. Communication is achieved via PROFIBUS DP (DPV0) at a maximum data transmission rate of ≤12 MBaud. The device has a unit weight of 0.334 kg, with a total weight of 0.28 kg including the shaft. It complies with DIN ISO 1319-1 for error limit positioning, where upper and lower deviations are symmetrical under standard installation conditions. All electronic failures are considered hazardous per SICK’s safety definition.

Configuration and Integration

The A3M60 integrates seamlessly into PROFIBUS DP networks using a DPV0 interface with a maximum data rate of 12 MBaud. It features two male M12, 5-pin, axial connectors for power and signal transmission, along with one female M12, 5-pin, axial connector for communication. This configuration allows flexible wiring options while maintaining signal integrity. The device is designed as a standard product and does not constitute a safety component under the Machinery Directive. Installation requires proper grounding and adherence to voltage specifications (10–32 V). For optimal performance, especially at low temperatures, continuous power supply is required when ambient temperatures fall below 0°C due to self-warming characteristics. The encoder’s communication interface supports real-time position feedback, making it ideal for integration into motion control systems with minimal setup complexity.

Operating Environment

The A3M60 operates within a temperature range of –10 °C to +70 °C and can withstand storage conditions from –40 °C to +100 °C. It is rated for 95% relative humidity, with condensation strictly prohibited. The IP65 rating on the shaft side ensures protection against dust and water jets, while the IP67 rating on the housing side provides full immersion protection in water up to 1 meter for 30 minutes. These environmental ratings ensure reliable performance in harsh industrial settings such as manufacturing lines or outdoor automation systems. Operation at temperatures below 0°C requires continuous energization due to self-warming behavior, ensuring consistent accuracy and functionality under cold conditions.

Industrial Applications

The SICK A3M60 is ideal for use in precision motion control applications requiring high positional accuracy and environmental resilience. It is commonly deployed in automated assembly lines, robotic arms, and CNC machines where reliable feedback is essential. Its robust construction and high resolution support accurate positioning over extended cycles. The encoder’s compatibility with PROFIBUS DP makes it suitable for integration into existing industrial automation systems without major modifications. Applications include linear actuators, rotary tables, and position monitoring in packaging or material handling equipment. Its ability to maintain performance under varying temperatures and humidity levels ensures consistent operation across diverse industrial environments.
