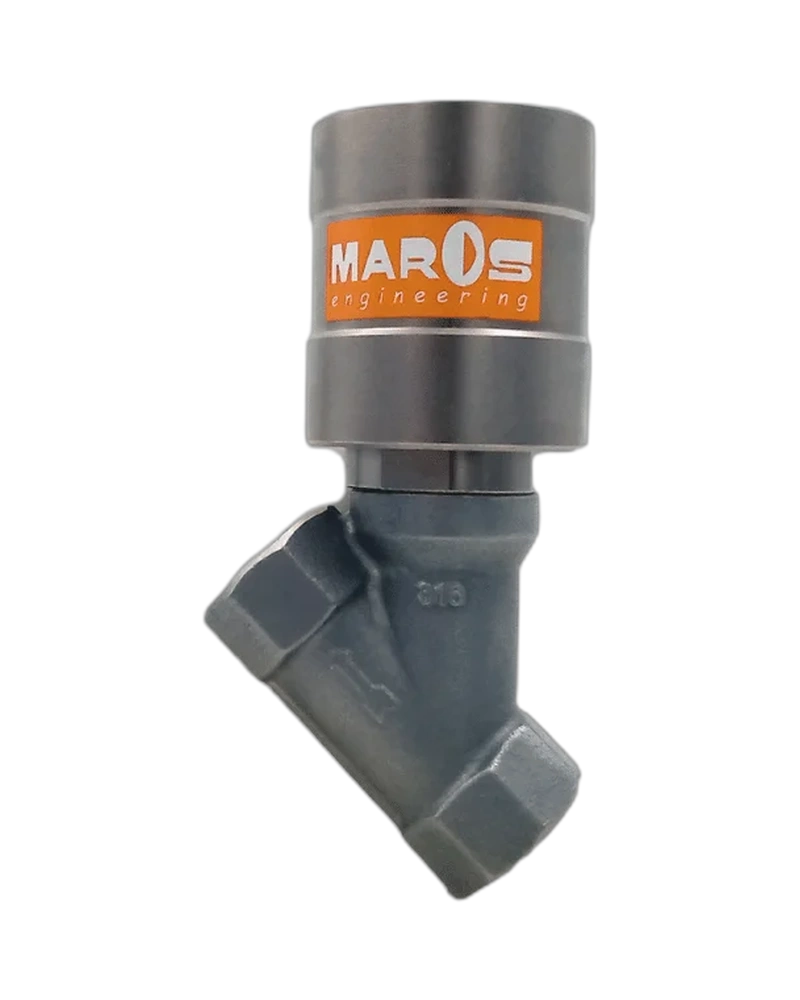

YCXA Fluxa Valve - Compact 2 - way inclined valve - 53114 - 1"1/4

YCXA Fluxa Valve - Compact 2 - way inclined valve - 53114 - 1"1/4 is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: 53114; Selected size: 4. The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: compact 2-way angle-seat valve with AISI 316 stainless-steel body. Size: 1/2"–1" (PN40). Pipe threads: F/F gas ISO228. Actuator types: Normally Open (NO) and Double Acting (DA). Flow: unidirectional 1→2. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

MAROS code: 53114; Selected size: 4. The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: compact 2-way angle-seat valve with AISI 316 stainless-steel body. Size: 1/2"–1" (PN40). Pipe threads: F/F gas ISO228. Actuator types: Normally Open (NO) and Double Acting (DA). Flow: unidirectional 1→2. Ambient temperature: -20°/+60°C. Pilot pressure: min. 4.0 bar–max. 8.0 bar. Valve body: stainless steel AISI 316. Spacer: yes. Rotable cylinder: yes. Seal holder: stainless steel. Piston: aluminium. Cylinder: nickel-plated aluminium. Piston rod: stainless steel AISI 304. Rod wiper: yes. Rod guide: no. Internal O-ring: FKM. Shutter seal: FKM. PTFE/EPDM seal and ATEX options are available on request. Maximum temperature: +100°C.

Construction and Materials

Type: compact 2-way angle-seat valve with AISI 316 stainless-steel body. Size: 1/2"–1" (PN40). Pipe threads: F/F gas ISO228. Actuator types: Normally Open (NO) and Double Acting (DA). Flow: unidirectional 1→2. Ambient temperature: -20°/+60°C. Pilot pressure: min. 4.0 bar–max. 8.0 bar. Valve body: stainless steel AISI 316. Spacer: yes. Rotable cylinder: yes. Seal holder: stainless steel. Piston: aluminium. Cylinder: nickel-plated aluminium. Piston rod: stainless steel AISI 304. Rod wiper: yes. Rod guide: no. Internal O-ring: FKM. Shutter seal: FKM. PTFE/EPDM seal and ATEX options are available on request. Maximum temperature: +100°C.

Applications

YCXA Fluxa Valve - Compact 2 - way inclined valve - 53114 - 1"1/4 YCXA Fluxa Valve - Compact 2 - way inclined valve - 53114 - 1"1/4 is an for industrial automation and pneumatic fluid or vacuum control. These details are important when matching the valve or actuator to the working medium, pneumatic circuit, vacuum system, temperature range and available installation space. Applications MAROS Engineering pneumatic valves are used across industrial automation applications including automated handling, vacuum gripping and release, palletizing, pneumatic conveying, packaging, food processing, chemical and cosmetic equipment, thermotechnical systems, plastic and rubber processing, thermoforming and other fluid-control installations.

Available Options

• MAROS Engineering FLUXA YCXA family
• MAROS configuration code 53114; nominal size 4
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
