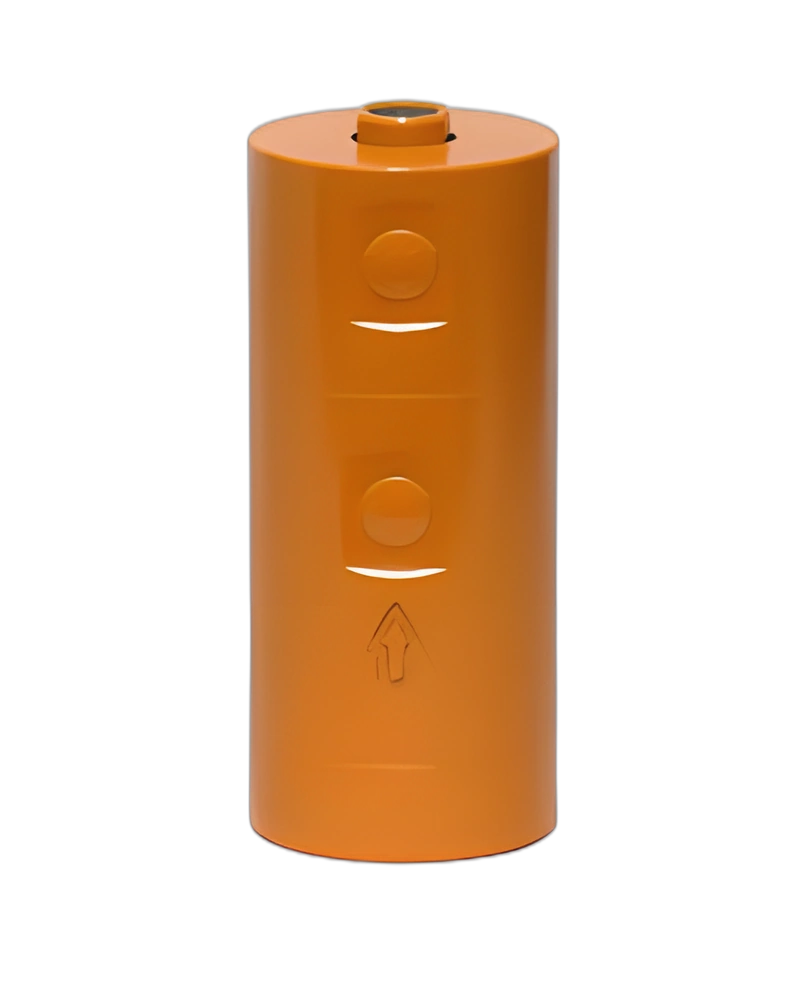

Findeva VTL-165 is a pneumatic piston vibrator for linear vibration with continuously adjustable frequency and force. The FAL range uses lubrication-free operation and is suited to food, pharmaceutical and bulk-material handling applications.
The VTL-165 generates vibration with a freely oscillating, self-reversing piston. The design provides linear vibration and allows frequency and amplitude to be adjusted continuously through the compressed-air supply.
At 2, 4 and 6 bar, the model produces 1.9, 2.5 and 2.7 ×10³ vibrations per minute, with force of 43, 76 and 96 N.
The published model data gives a piston stroke of 35.0 mm and a weight of 1.51 kg.
| Brand | Findeva |
|---|---|
| Product family | FAL / VTL Piston Vibrator |
| Model | VTL-165 |
| Rated frequency @ 2 / 4 / 6 bar | 1.9 / 2.5 / 2.7 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 43 / 76 / 96 N |
| Air consumption @ 2 / 4 / 6 bar | 17 / 37 / 70 l/min |
| Dimension A | 111 mm |
| Diameter / width | 49 mm |
| Mounting / connections | M10 / G 1/8" / G 1/8" |
| Weight | 1.51 kg |
| Piston stroke | 35.0 mm |
| Maximum temperature | FAL up to 120°C; VTL-165 up to 150°C |
Food and pharmaceutical equipment, conveyor and discharge chutes, loosening or compacting bulk solids, activating mechanical processes and filling facilities.
The VTL-165 is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | FAL / VTL Piston Vibrator |
| Model | VTL-165 |
| Rated frequency @ 2 / 4 / 6 bar | 1.9 / 2.5 / 2.7 ×10³ min⁻¹ |
| Force @ 2 / 4 / 6 bar | 43 / 76 / 96 N |
| Air consumption @ 2 / 4 / 6 bar | 17 / 37 / 70 l/min |
| Dimension A | 111 mm |
| Diameter / width | 49 mm |
| Mounting / connections | M10 / G 1/8" / G 1/8" |
| Weight | 1.51 kg |
| Piston stroke | 35.0 mm |
| Maximum temperature | FAL up to 120°C; VTL-165 up to 150°C |
