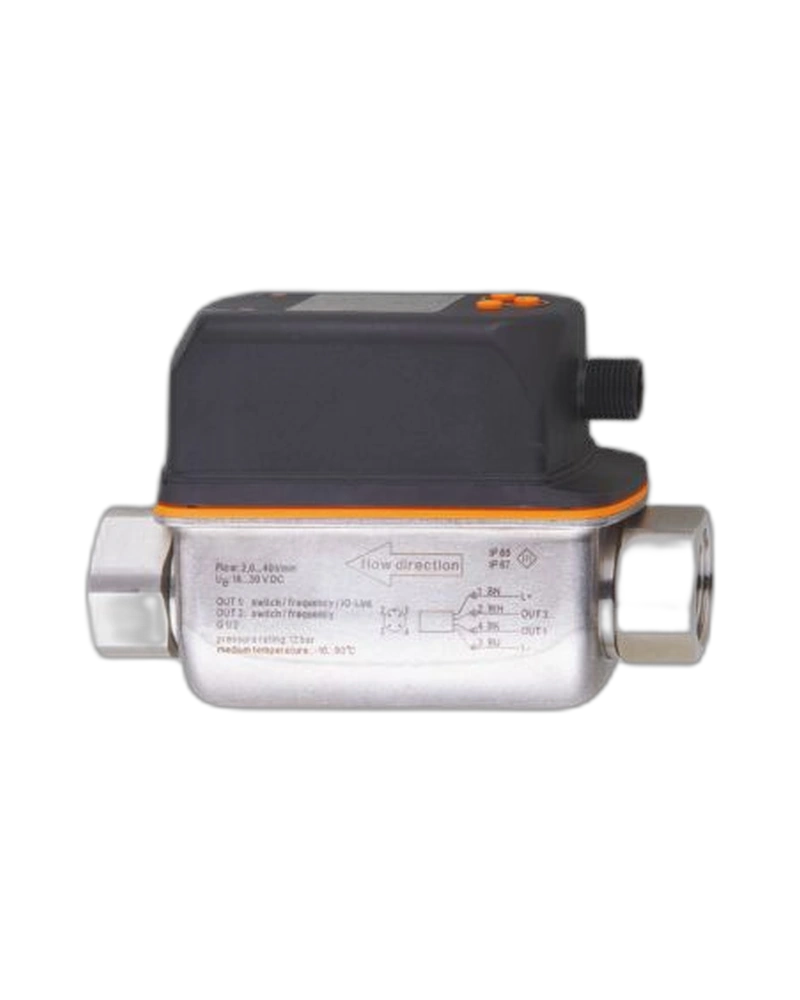

The IFM SV4200 is a vortex flow meter with display designed for monitoring water-based media in industrial applications. It combines flow measurement, temperature monitoring, configurable outputs and local display functionality. With switching, frequency and IO-Link capabilities, it is suitable for automated process monitoring and machine control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The SV4200 uses vortex measurement technology to monitor flow and process temperature. It provides local display functionality and configurable output signals for integration into automation systems. The unit is designed for water-based media and industrial process applications requiring continuous measurement and control.
The SV4200 measures flow within a defined range and provides configurable switching, frequency and IO-Link-related output functionality. Its integrated display supports local process visibility, while the temperature-monitoring capability provides additional information for process supervision.
The SV4200 combines flow measurement, temperature monitoring, display functionality and flexible automation connectivity. Its compact industrial design and configurable outputs make it suitable for water-based process systems, machine monitoring and factory automation.
Vortex flow measurement
Integrated display
Flow measurement range 1...20 l/min
Temperature monitoring
Two digital outputs
Switching signal capability
Frequency signal capability
IO-Link functionality
PNP/NPN electrical design
Short-circuit and overload protection
Water-flow monitoring
Cooling systems
Industrial machinery
Process automation
Pump systems
Machine tools
Water-based process systems
Factory automation
Flow control
Temperature and flow supervision
| Specification | Details |
|---|---|
| Product Code | SV4200 |
| Model | SV4200 |
| Product Type | Vortex flow meter with display |
| Sensing Range | 1...20 l/min |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC; switching, frequency, IO-Link configurable |
| Operating Voltage | 18...30 V DC |
| Current Consumption | <30 mA |
| Housing Material | Model-specific |
| Housing Design | Compact vortex flow meter |
| Connection | Electrical connector |
| Connector | Model-specific |
| Protection Rating | Model-specific |
| Protection Class | III |
| Switching Frequency | Frequency output configurable |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | In-line |
| Mounting | Process connection |
| LED Indicator | Integrated display |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Weight | Model-specific |
| Additional Information | Flow display range 0...24 l/min; temperature measuring range -10...90 °C; two digital outputs. (media.ifm.com) |
