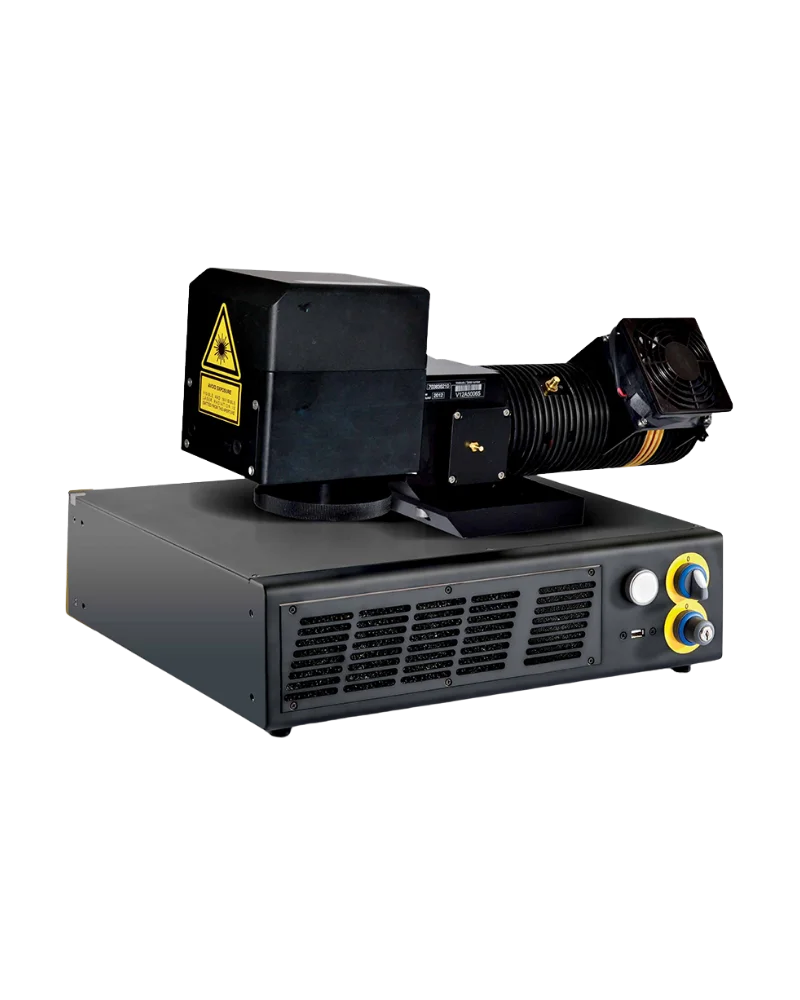

VLASE Industrial Laser Marking System

Datasensing's VLASE is a compact, industrial-grade semiconductor laser marking system engineered for precision applications. It features a dedicated M12 connector interface for photocell and encoder inputs, ensuring reliable signal transmission. The system includes an optical fiber detachable connection (3m standard, 5m optional) for flexible integration with industrial machinery.

• Embedded Controller: Windows Embedded Standard 7 OS with 100-240 VAC power supply (600 W max), operating within a temperature range of 5°C to 40°C
• Drive Capabilities: Supports up to 4 mechanical axes (stepper motors) with 10 digital inputs and 10 digital outputs for system flexibility

Performance

The documented configuration includes Aiming Beam Semiconductor Laser - 630 – 670 nm: Power Supply 100- 240 VAC 50/60Hz – 600 W max; Faucets Marking – High resolutions marking on high reflectivity: Accurate color change of nickel coating, nickel Glass Marking; VLASE SERIES (WAVELENGTH): New VLASE Family is available in three wavelength to satisfy all a wide range of application types and materials, where high peak; power, short pulse width and high beam quality is required.: VL-IR (INFRARED) VL – GREEN VL – UV (ULTRA VIOLET).

Electrical and Interface

The documented configuration includes • I/O connections, fiber delivery and IEC power inlet are: dedicated M12 connectors for Photocell and Encoder.; Interface Ethernet, RS 232, USB: Optical Fiber Detachable – 3 meters standard- 5 meters OPT; controller, with embedded 100-240 VAC power supply, diode power.: • Embedded controller with Windows Embedded Standard 7 installation and maintenance; Nominal Power [W] 10 20 10 3: Repetition Rate Range [KHz] 10 ÷ 100 20 ÷ 200 20 ÷ 100 20 ÷80; power level. available in tow power size: 4W and 10W MARKING PRODUCT WITH EMISSION @ 355 NM; VLASE Series is available in a variety of different power levels and: in three wavelengths to cover a wide range of application types and; Peak power [kW] 32@10KHz 65@20KHZ 28@20KHz 14@25KHZ: Marking capabilities Standing, Rotary axis, On the fly (marking in motion).

Mechanical and Environmental

The documented configuration includes of materials. materials such as plastics that do not interact footprint for ablative damage free marking: High peak power and short pulse width ensures with the infrared wavelength, as well as with applications on various materials, including; marking on non additivated thermoplastic copper, gold & silver. and other sensitive materials.: coated materials or low absorption materials.

General

The documented configuration includes easy setup embedded controller, providing to machine builders, system with removable dust filter, that enhance: system integrators and end users a compact, full features operative temperature range up to 40°C @ full; State Hard Disk for data storage. compliant with EN 60825.1: • Embedded 90-240 VAC power supply. • Completely sealed, bending free, long lifetime laser; • Local and Remote ActiveXMASTER-SLAVE mode with a with supervising computer for: • Ethernet protocol for easy integration in PLC and industrial environmentsadvanced network-oriented Laser Marking Applications.; Up to 4 mechanical axis driving capabilities (stepper motor): Integration Up to 10 digital inputs and 10 digital output fully programmable dedicated connectors Encoder and Photocell; Cooling System Air cooled: Temperature Range 5°C TO 40°C (41°F TO 104°F); 985110073 VLASE 1109-1343 IR Marker VLASE 10W@1064nm with F160S-M39 Lens W10: 985110074 VLASE 1109-1443 IR Marker VLASE 10W@1064nm with F160L-M85 Lens W10; 985110075 VLASE 1109-1643 IR Marker VLASE 10W@1064nm with F254S-M39 Lens W10: 985110076 VLASE 1109-1743 IR Marker VLASE 10W@1064nm with F254L-M85 Lens W10; 985110079 VLASE 1109-1943 IR Marker VLASE 10W@1064nm with F100L-M85 Lens W10: 985110080 VLASE 1209-1343 IR Marker VLASE 20W@1064nm with F160S-M39 Lens W10.

General – Additional Details

The documented configuration includes 985110081 VLASE 1209-1443 IR Marker VLASE 20W@1064nm with F 160L-M85 Lens W10: 985110082 VLASE 1209-1643 IR Marker VLASE 20W@1064nm with F254S-M39 Lens W10; 985110083 VLASE 1209-1743 IR Marker VLASE 20W@1064nm with F254L-M85 Lens W10: 985110084 VLASE 1209-1A43 IR Marker VLASE 20W@1064nm with F 330L-M85 Lens W10; 985110085 VLASE 1209-1B43 IR Marker VLASE 20W@1064nm with F 420L-M85 Lens W10: 985110086 VLASE 1209-1943 IR Marker VLASE 20W@1064nm with F100L-M85 Lens W10; 985110089 VLASE 3034-1443 UV Marker VLASE 3W@355nm with F160L-M85 Lens W10: 985110090 VLASE 2104-1443 GR Marker VLASE 10W@532nm with F160L-M85 Lens W10; VLASE Series of solid state laser markers combines a state- • Front panel now offer main laser commands key: of –the-art Solid State laser source with a high flexibility and and enable, USB port an new improved air cooling; FLEXIBLE PROGRAMMING CONTROL MAIN VLASE SERIES FEATURES ARE: LIGHTER Suite, with its Intuitive and easy-to-learn interface,; • Local and Remote I/O & axis controlVLASE Series is thought to be used in both a STAND ALONE: • Local and Remote laser test & setupMODE with built-in control and software resources, and in a.
