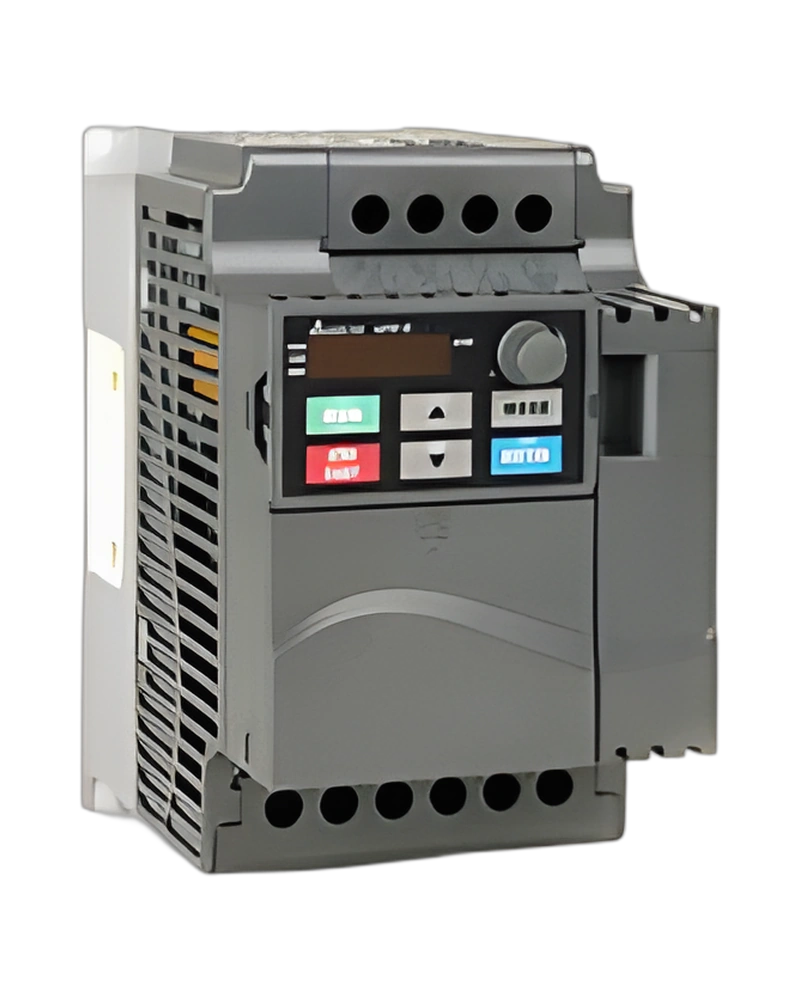

The DELTA VFD220E43A is a 3-phase servo motor inverter designed for precise motion control applications. It operates within a wide voltage range of 200-240 V (50/60 Hz) and delivers output frequencies from 0.1 to 599 Hz with 0.01 Hz resolution. This inverter features advanced torque compensation capabilities, including 150% starting torque at 3.0 Hz, and supports multi-step control, jog functions, and DC braking for smooth motor operation in industrial environments.
The DELTA VFD220E43A is a high-performance 3-phase servo motor inverter engineered for demanding industrial motion control applications. This inverter delivers precise speed regulation across a broad frequency range (0.1–599 Hz) with 0.01 Hz resolution, ensuring smooth acceleration and deceleration of motors. Its advanced torque characteristics, including 150% starting torque at 3.0 Hz, make it ideal for applications requiring high initial torque without mechanical stress. The VFD220E43A operates within a robust temperature range of -10°C to +50°C (40°C for side-by-side mounting) and supports multi-function inputs for flexible control integration, such as jog, acceleration/deceleration inhibition, and DC braking. With a wide voltage tolerance of ±10% (180–264 V) and frequency tolerance of ±5% (47–63 Hz), this inverter ensures reliable performance in diverse industrial settings.
The DELTA VFD220E43A operates within a rated voltage range of 200–240 V (50/60 Hz) with a voltage tolerance of ±10% (180–264 V) and frequency tolerance of ±5% (47–63 Hz). It delivers output frequencies from 0.1 to 599 Hz with a resolution of 0.01 Hz. The inverter supports skip frequency settings across three zones and includes DC braking functionality with adjustable start and stop times (0–60 seconds).
The VFD220E43A features multi-function input signals for flexible control integration, including jog functions, acceleration/deceleration inhibition, and external base block (NC/NO) inputs. It supports multi-step selection (0–15), counter functions, and sink/source (NPN/PNP) signal selection, enabling precise motor control in complex industrial systems.
This inverter provides advanced torque characteristics with auto-torque/auto-slip compensation, achieving 150% starting torque at 3.0 Hz. The DC braking system operates within the frequency range of 0.1–599 Hz, delivering output currents up to 100% of rated current with adjustable start and stop times (0–60 seconds) for smooth motor deceleration.
The DELTAVFD220E43A is an industrial Servo Motor. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Rated Voltage/Frequency | Single / 3-phase, 200 - 240 V, 50 / 60 Hz 3-phase, 200 - 240 V, 50 / 60 Hz |
| Multi-function Input Signal | Multi-step selection 0 to 15, Jog, accel/decel inhibit, 2 accel/decel switches, counter, external Base Block (NC, NO), auxiliary motor control is invalid, ACI / AVI / AUI selections, driver reset, UP/DOWN key settings, sink/source (=NPN / PNP) selection |
| 115V Voltage Class | 115 V |
| Output Frequency (Hz) | 0.1 ~ 599 Hz |
| Input Rating | Rated Input Current (A) Single / 3-phase 3-phase |
| Voltage Tolerance | ±10% (180 - 264 V) |
| Frequency Tolerance | ±5% (47 - 63 Hz) |
| 230V Voltage Class | 230 V |
| Voltage Class 460V | 460 V |
| Frequency Setting Resolution | 0.01 Hz |
| Output Frequency Resolution | 0.01 Hz |
| Torque Characteristics | Including the auto-torque/auto-slip compensation; starting torque can be 150% at 3.0 Hz |
| Skip Frequency | Three zones, setting range 0.1 ~ 599 Hz |
| DC Braking | Operation frequency 0.1 ~ 599.0 Hz, output 0~100% rated current Start time 0~60 seconds, stop time 0~60 seconds |
