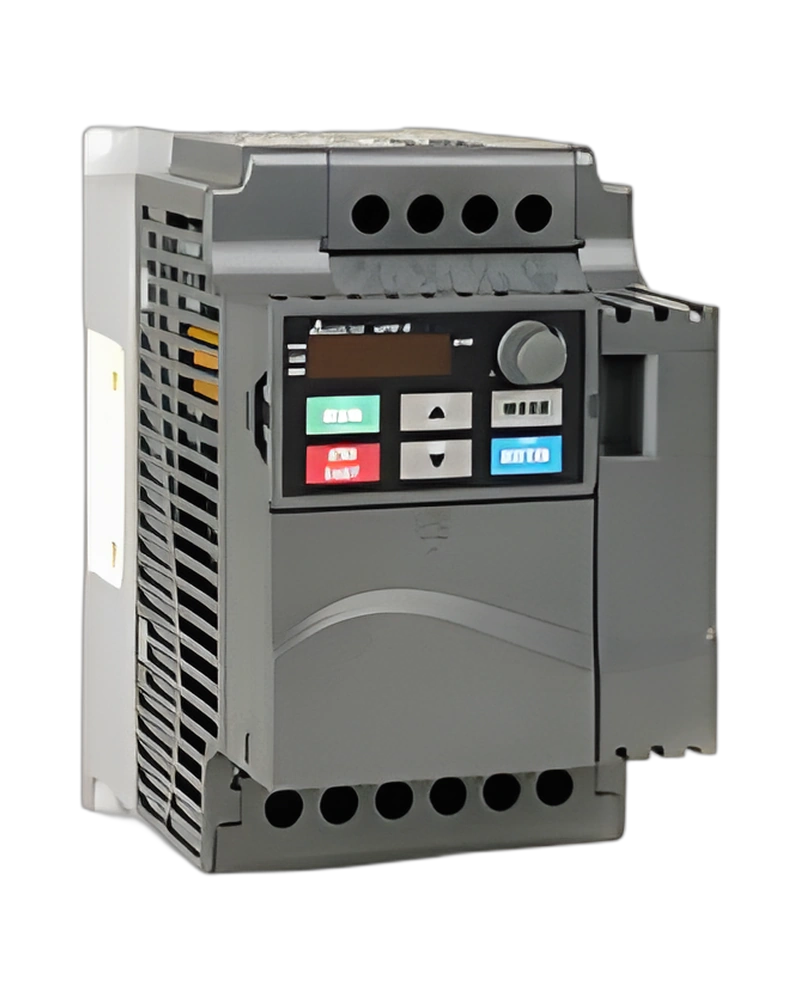

The DELTA VFD150E43A is a 3-phase servo motor inverter designed for precise motion control applications. It supports 200-240V, 50/60Hz operation with a frequency range of 0.1-599Hz and features multi-function inputs for advanced control. This inverter delivers high starting torque (150% at 3.0Hz) and includes DC braking capabilities for smooth operation in industrial machinery.
The DELTA VFD150E43A is a high-performance 3-phase servo motor inverter engineered for demanding industrial motion control applications. This product delivers precise speed regulation and robust operational flexibility across a wide range of industrial environments. With a rated voltage range of 200-240V and frequency compatibility of 50/60Hz, the VFD150E43A ensures reliable performance in both standard and specialized industrial settings. Its advanced features, including auto-torque compensation and DC braking capabilities, make it ideal for applications requiring high starting torque and smooth acceleration/deceleration.
The DELTA VFD150E43A operates within an ambient temperature range of -10°C to +50°C (40°C for side-by-side mounting). It supports a rated output frequency range of 0.1-599Hz with 0.01Hz resolution. The inverter is designed for 200-240V 3-phase input with a voltage tolerance of ±10% (180-264V) and frequency tolerance of ±5% (47-63Hz). The product includes DC braking capabilities with adjustable start and stop times (0-60 seconds each).
The VFD150E43A provides comprehensive control options through its multi-function input signals, including jog, acceleration/deceleration inhibition, counter functions, and external base block (NC/NO) connections. It supports ACI/AVI/AUI selections and driver reset functions for flexible integration with various control systems. The inverter also allows for sink/source (NPN/PNP) signal selection to accommodate different interface requirements.
This inverter features auto-torque/auto-slip compensation to maintain optimal performance across varying load conditions. The starting torque capability of 150% at 3.0Hz ensures strong initial acceleration for heavy-duty applications. Additionally, the skip frequency functionality allows for three adjustable zones within the 0.1-599Hz range, enabling precise speed control in complex motion sequences.
The DELTAVFD150E43A is an industrial Servo Motor. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Rated Voltage/Frequency | Single / 3-phase, 200 - 240 V, 50 / 60 Hz 3-phase, 200 - 240 V, 50 / 60 Hz |
| Multi-function Input Signal | Multi-step selection 0 to 15, Jog, accel/decel inhibit, 2 accel/decel switches, counter, external Base Block (NC, NO), auxiliary motor control is invalid, ACI / AVI / AUI selections, driver reset, UP/DOWN key settings, sink/source (=NPN / PNP) selection |
| 115V Voltage Class | 115 V |
| Output Frequency (Hz) | 0.1 ~ 599 Hz |
| Input Rating | Rated Input Current (A) Single / 3-phase 3-phase |
| Voltage Tolerance | ±10% (180 - 264 V) |
| Frequency Tolerance | ±5% (47 - 63 Hz) |
| 230V Voltage Class | 230 V |
| Voltage Class 460V | 460 V |
| Frequency Setting Resolution | 0.01 Hz |
| Output Frequency Resolution | 0.01 Hz |
| Torque Characteristics | Including the auto-torque/auto-slip compensation; starting torque can be 150% at 3.0 Hz |
| Skip Frequency | Three zones, setting range 0.1 ~ 599 Hz |
| DC Braking | Operation frequency 0.1 ~ 599.0 Hz, output 0~100% rated current Start time 0~60 seconds, stop time 0~60 seconds |
