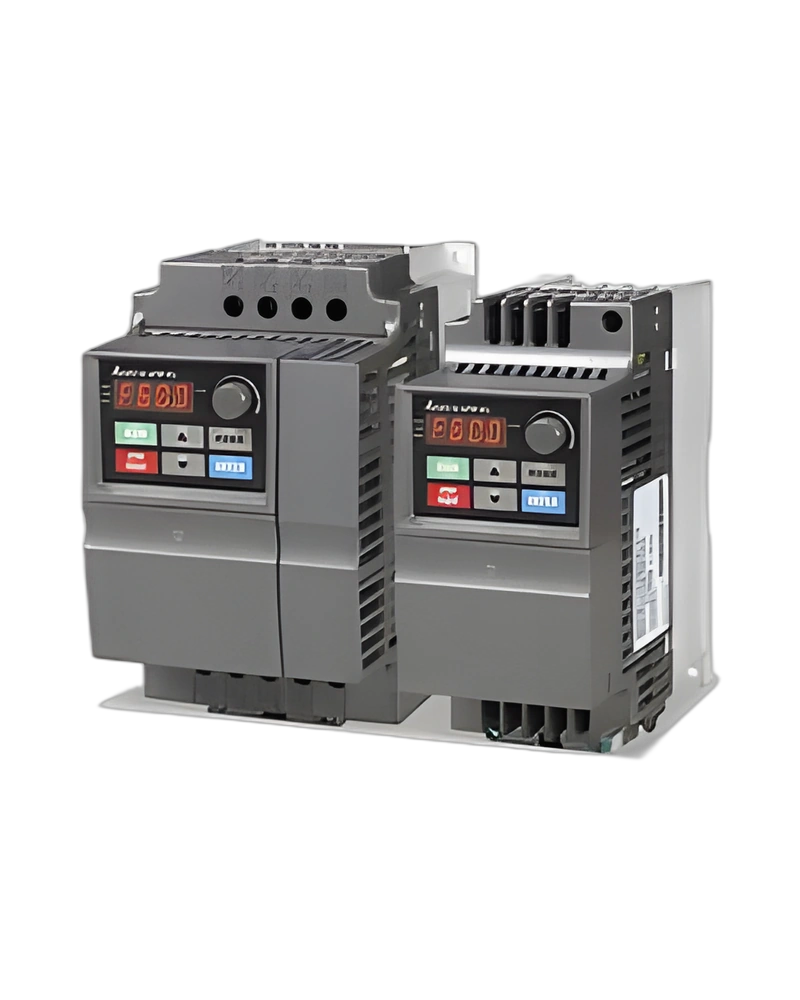

The DELTA VFD022EL43W-1 is a servo motor inverter designed for precise motion control applications. This model supports both single-phase (200-240V, 50/60Hz) and three-phase (380-480V, 50/60Hz) power inputs with a rated output capacity of up to 4.0 kVA. It offers versatile cooling options and is suitable for industrial machinery requiring high precision and reliability.
The DELTA VFD022EL43W-1 is a high-performance servo motor inverter engineered for demanding industrial applications where precise speed and torque control are essential. This model delivers robust performance across a wide voltage range (230V to 460V) and supports both single-phase and three-phase AC power inputs, making it ideal for machinery requiring smooth, accurate motion control. Its compact design with natural or fan-cooled options ensures reliable operation in diverse industrial environments while maintaining high efficiency and compatibility with a range of motor loads.
The VFD022EL43W-1 operates on single-phase AC 200-240V or three-phase AC 380-480V at 50/60Hz. It delivers a rated output capacity of up to 4.0 kVA, supporting motors with a maximum output of 4.0 kW (5.5 HP). The system maintains stable performance within a voltage tolerance of ±10% and frequency tolerance of ±5%.
This inverter features two cooling options: natural cooling for 230V models (0.2-0.75 kW) and fan cooling for 460V models (1.5 kW). The natural cooling option operates within a temperature range of -10°C to 50°C, ensuring reliable performance in standard industrial environments without additional cooling components.
The VFD022EL43W-1 is designed to work with motors up to 4.0 kW (5.5 HP) in output. It supports a wide range of motor types, including induction motors, and is compatible with both single-phase and three-phase applications, making it suitable for diverse industrial machinery such as conveyor systems, robotic arms, and precision manufacturing equipment.
With a frequency tolerance of ±5% (47Hz-63Hz), the VFD022EL43W-1 ensures stable operation across varying grid conditions. The system maintains high efficiency within its rated voltage and frequency ranges, minimizing energy loss while delivering precise control for critical motion applications.
The DELTAVFD022EL43W-1 is an industrial Servo Motor. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Voltage | 230 V 460 V |
| Rated Voltage / Frequency | Single Phase, AC 200 V ~ 240 V，50 / 60 Hz Three Phase, AC 380 V ~ 480 V，50 / 60 H |
| Input Rating | Rated Input Current (A) 4.9 6.5 9.3 15.7 24.0 1.8 3.2 4.3 7.1 10.0 |
| Voltage Tolerance | ±10 % (180 V ~ 264 V) ±10 % (342 V ~ 528 V) |
| Frequency Tolerance | ±5 % (47 Hz ~ 63 Hz) |
| Frame A1 | Natural Cooling -10°C ~ 50°C 230 V: 0.2 ~ 0.75 kW 460 V: 0.4 ~ 0.75 kW |
| Frame A2 | Fan Cooling 460 V: 1.5 kW |
| Frame B | 230 V: 1.5 ~ 2.2 kW 460 V: 2.2 ~ 4.0 kW |
| Max. Applicable Motor Output (kW) | 0.2 0.4 0.75 1.5 2.2 0.4 0.75 1.5 2.2 4.0 |
| Max. Applicable Motor Output (HP) | 0.25 0.5 1.0 2.0 3.0 0.5 1.0 2.0 3.0 5.5 |
| Output Rating | Rated Output Capacity (kVA) 0.6 1.0 1.6 2.9 4.2 1.2 2.0 3.3 4.4 7.4 |
