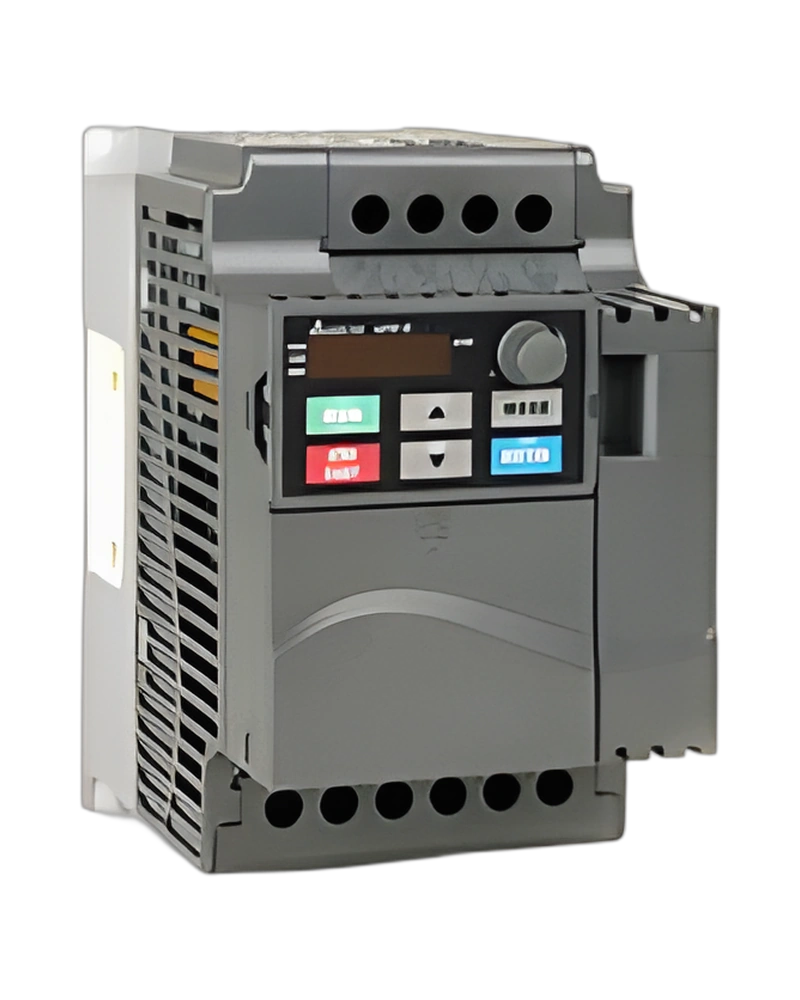

The DELTA VFD022E21A is a 3-phase servo motor inverter designed for precise speed control in industrial applications. It supports 200-240V, 50/60Hz inputs with a frequency range of 0.1-599Hz and includes advanced features like multi-step selection, jog control, and auto-torque compensation. This inverter ensures reliable operation across ambient temperatures from -10°C to +50°C.
The DELTA VFD022E21A is a high-performance 3-phase servo motor inverter engineered for demanding industrial environments. This product delivers precise speed control with a robust 200-240V input range and a frequency output capability spanning 0.1 to 599Hz. Its advanced features, including multi-function input signals, auto-torque compensation, and DC braking capabilities, make it ideal for applications requiring smooth acceleration, deceleration, and precise torque management. The VFD022E21A operates reliably within an ambient temperature range of -10°C to +50°C, ensuring consistent performance in diverse industrial settings.
The DELTA VFD022E21A operates within a rated voltage range of 200-240V for 3-phase inputs at 50/60Hz. It features a frequency output range of 0.1-599Hz with 0.01Hz resolution. The inverter supports a voltage tolerance of ±10% (180-264V) and frequency tolerance of ±5% (47-63Hz). It includes auto-torque compensation for starting torque up to 150% at 3.0Hz and DC braking with adjustable start and stop times (0-60 seconds). The product is rated for ambient temperatures from -10°C to +50°C, with a non-condensing design that prevents freezing.
The VFD022E21A offers multi-step selection (0-15), jog control, and accel/decel inhibit functions for precise motor control. It supports two external acceleration/deceleration switches and includes counter functionality. The inverter also provides base block inputs (NC/NO) and auxiliary motor control options, allowing flexible integration with external systems. The product supports sink/source (NPN/PNP) signal selection and ACI/AVI/AUI configurations for enhanced control versatility.
With a starting torque capability of 150% at 3.0Hz, the VFD022E21A ensures strong initial acceleration for heavy loads. Its skip frequency feature allows three adjustable zones for smooth speed transitions, reducing mechanical stress during operation. The DC braking system provides rapid deceleration with adjustable start and stop times (0-60 seconds), making it suitable for applications requiring precise speed control and minimal vibration.
The DELTAVFD022E21A is an industrial Servo Motor. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Rated Voltage/Frequency | Single / 3-phase, 200 - 240 V, 50 / 60 Hz 3-phase, 200 - 240 V, 50 / 60 Hz |
| Multi-function Input Signal | Multi-step selection 0 to 15, Jog, accel/decel inhibit, 2 accel/decel switches, counter, external Base Block (NC, NO), auxiliary motor control is invalid, ACI / AVI / AUI selections, driver reset, UP/DOWN key settings, sink/source (=NPN / PNP) selection |
| 115V Voltage Class | 115 V |
| Output Frequency (Hz) | 0.1 ~ 599 Hz |
| Input Rating | Rated Input Current (A) Single / 3-phase 3-phase |
| Voltage Tolerance | ±10% (180 - 264 V) |
| Frequency Tolerance | ±5% (47 - 63 Hz) |
| 230V Voltage Class | 230 V |
| Voltage Class 460V | 460 V |
| Frequency Setting Resolution | 0.01 Hz |
| Output Frequency Resolution | 0.01 Hz |
| Torque Characteristics | Including the auto-torque/auto-slip compensation; starting torque can be 150% at 3.0 Hz |
| Skip Frequency | Three zones, setting range 0.1 ~ 599 Hz |
| DC Braking | Operation frequency 0.1 ~ 599.0 Hz, output 0~100% rated current Start time 0~60 seconds, stop time 0~60 seconds |
