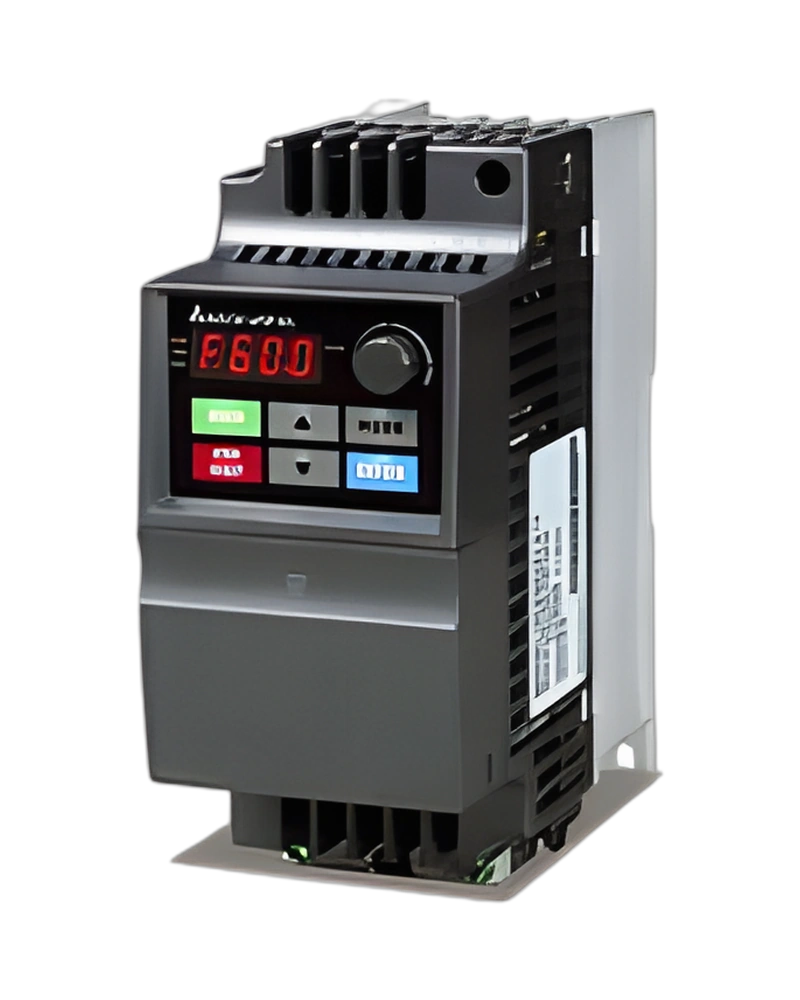

The DELTA VFD015E43A is a high-performance servo motor inverter designed for precise motion control applications. This 3-phase inverter operates within 200-240 V, 50/60 Hz ranges, delivering output frequencies from 0.1 to 599 Hz with 0.01 Hz resolution. It features advanced torque compensation for 150% starting torque at 3.0 Hz and robust multi-function input signals for flexible control integration.
The DELTA VFD015E43A is a specialized servo motor inverter engineered for demanding industrial motion control applications requiring precise speed regulation and high torque output. This 3-phase inverter operates across a wide voltage range (200-240 V) and frequency range (50/60 Hz), delivering output frequencies from 0.1 to 599 Hz with 0.01 Hz resolution. Its advanced torque compensation capabilities ensure 150% starting torque at 3.0 Hz, making it ideal for applications where rapid acceleration and precise positioning are critical. The VFD015E43A also supports multi-step selection, jog functions, and advanced braking control to enhance operational flexibility and reliability in industrial environments.
The DELTA VFD015E43A operates within a rated voltage range of 200-240 V (±10% tolerance) and frequency range of 50/60 Hz (±5% tolerance). It delivers output frequencies from 0.1 to 599 Hz with 0.01 Hz resolution. The inverter supports 115V and 230V voltage classes, with a 460V voltage tolerance. Starting torque reaches 150% at 3.0 Hz, and DC braking can be configured for start and stop times between 0-60 seconds.
The VFD015E43A provides extensive control options through multi-function input signals, including jog, acceleration/deceleration inhibition, counter functions, and external base block connections (NC/NO). It supports both NPN and PNP signal types, enabling flexible integration with a variety of industrial control systems and sensors.
Designed for industrial use, the VFD015E43A operates within an ambient temperature range of -10°C to +50°C (with 40°C for side-by-side mounting). It is non-condensing and does not freeze, ensuring reliable performance in diverse environmental conditions.
This inverter features skip frequency functionality for three adjustable zones within the 0.1-599 Hz range, allowing precise speed control in applications requiring step changes. The DC braking system provides adjustable start and stop times (0-60 seconds) to ensure smooth deceleration and safe stopping of motor loads.
The DELTAVFD015E43A is an industrial Servo Motor. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Rated Voltage/Frequency | Single / 3-phase, 200 - 240 V, 50 / 60 Hz 3-phase, 200 - 240 V, 50 / 60 Hz |
| Multi-function Input Signal | Multi-step selection 0 to 15, Jog, accel/decel inhibit, 2 accel/decel switches, counter, external Base Block (NC, NO), auxiliary motor control is invalid, ACI / AVI / AUI selections, driver reset, UP/DOWN key settings, sink/source (=NPN / PNP) selection |
| 115V Voltage Class | 115 V |
| Output Frequency (Hz) | 0.1 ~ 599 Hz |
| Input Rating | Rated Input Current (A) Single / 3-phase 3-phase |
| Voltage Tolerance | ±10% (180 - 264 V) |
| Frequency Tolerance | ±5% (47 - 63 Hz) |
| 230V Voltage Class | 230 V |
| Voltage Class 460V | 460 V |
| Frequency Setting Resolution | 0.01 Hz |
| Output Frequency Resolution | 0.01 Hz |
| Torque Characteristics | Including the auto-torque/auto-slip compensation; starting torque can be 150% at 3.0 Hz |
| Skip Frequency | Three zones, setting range 0.1 ~ 599 Hz |
| DC Braking | Operation frequency 0.1 ~ 599.0 Hz, output 0~100% rated current Start time 0~60 seconds, stop time 0~60 seconds |
