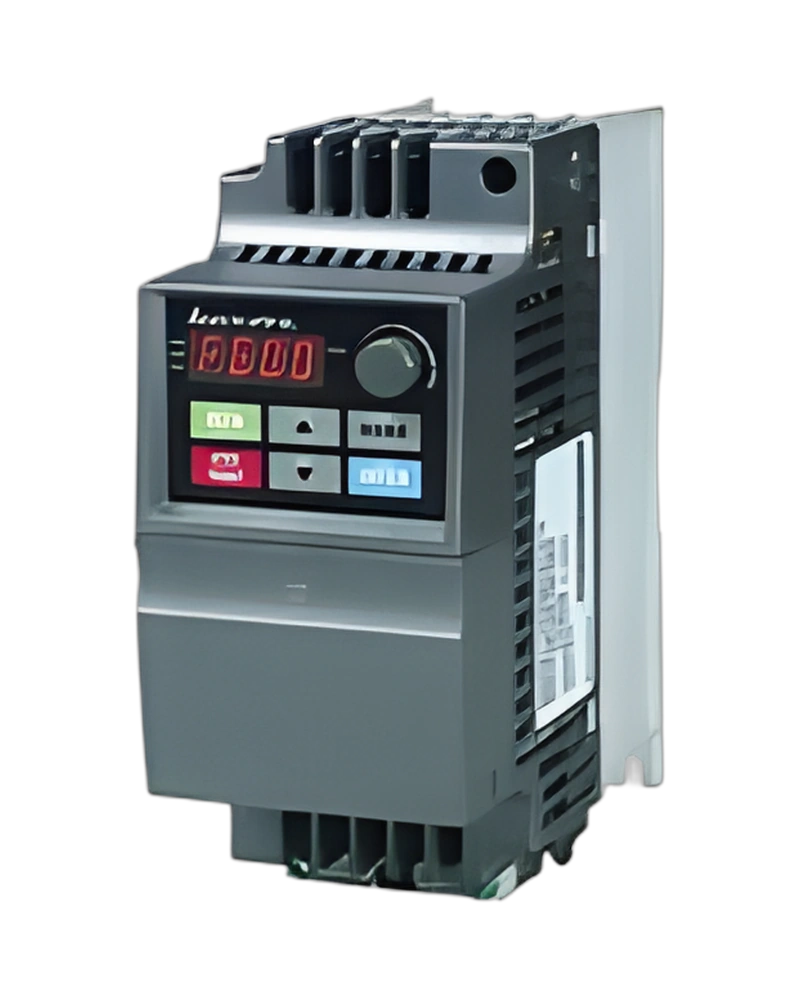

The DELTA VFD007EL43A is a servo motor inverter designed for precise motion control applications. This model supports both single-phase (200-240V, 50/60Hz) and three-phase (380-480V, 50/60Hz) power inputs with a rated output capacity of up to 4.0 kVA. It offers versatile cooling options and is suitable for industrial machinery requiring high precision and reliability.
The DELTA VFD007EL43A is a high-performance servo motor inverter engineered for demanding industrial applications where precise speed and torque control are critical. This model delivers robust power conversion capabilities across a wide voltage range (230V to 460V) and supports both single-phase and three-phase AC inputs, making it ideal for machinery requiring smooth, accurate motion control. With a maximum output capacity of 4.0 kVA and multiple cooling configurations, the VFD007EL43A ensures reliable operation in diverse industrial environments while maintaining compliance with stringent electrical standards.
The VFD007EL43A operates across a wide voltage range (230V to 460V) with single-phase (200-240V, 50/60Hz) and three-phase (380-480V, 50/60Hz) AC inputs. It delivers a maximum output capacity of 4.0 kVA, supporting motors up to 4.0 kW (5.5 HP) with precise speed and torque control. The system maintains stable operation within ±10% voltage tolerance and ±5% frequency tolerance.
The VFD007EL43A features dual cooling options: natural cooling for lower power ranges (0.2-0.75 kW) and fan cooling for higher loads (up to 1.5 kW). This ensures reliable thermal performance across operating temperatures of -10°C to 50°C, making it suitable for environments with varying thermal conditions.
With a frequency tolerance of ±5% (47Hz-63Hz), the VFD007EL43A maintains stable operation across a broad frequency range. The product is engineered to deliver precise motion control for applications requiring high accuracy, such as CNC machines, robotics, and automated assembly lines.
The VFD007EL43A is ideal for industrial applications where precise motor control is essential, including CNC machines, robotics, and automated assembly lines. Its compatibility with a wide range of motor sizes (up to 4.0 kW) and power inputs ensures flexibility in diverse industrial settings.
The DELTAVFD007EL43A is an industrial Servo Motor. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Voltage | 230 V 460 V |
| Rated Voltage / Frequency | Single Phase, AC 200 V ~ 240 V，50 / 60 Hz Three Phase, AC 380 V ~ 480 V，50 / 60 H |
| Input Rating | Rated Input Current (A) 4.9 6.5 9.3 15.7 24.0 1.8 3.2 4.3 7.1 10.0 |
| Voltage Tolerance | ±10 % (180 V ~ 264 V) ±10 % (342 V ~ 528 V) |
| Frequency Tolerance | ±5 % (47 Hz ~ 63 Hz) |
| Frame A1 | Natural Cooling -10°C ~ 50°C 230 V: 0.2 ~ 0.75 kW 460 V: 0.4 ~ 0.75 kW |
| Frame A2 | Fan Cooling 460 V: 1.5 kW |
| Frame B | 230 V: 1.5 ~ 2.2 kW 460 V: 2.2 ~ 4.0 kW |
| Max. Applicable Motor Output (kW) | 0.2 0.4 0.75 1.5 2.2 0.4 0.75 1.5 2.2 4.0 |
| Max. Applicable Motor Output (HP) | 0.25 0.5 1.0 2.0 3.0 0.5 1.0 2.0 3.0 5.5 |
| Output Rating | Rated Output Capacity (kVA) 0.6 1.0 1.6 2.9 4.2 1.2 2.0 3.3 4.4 7.4 |
