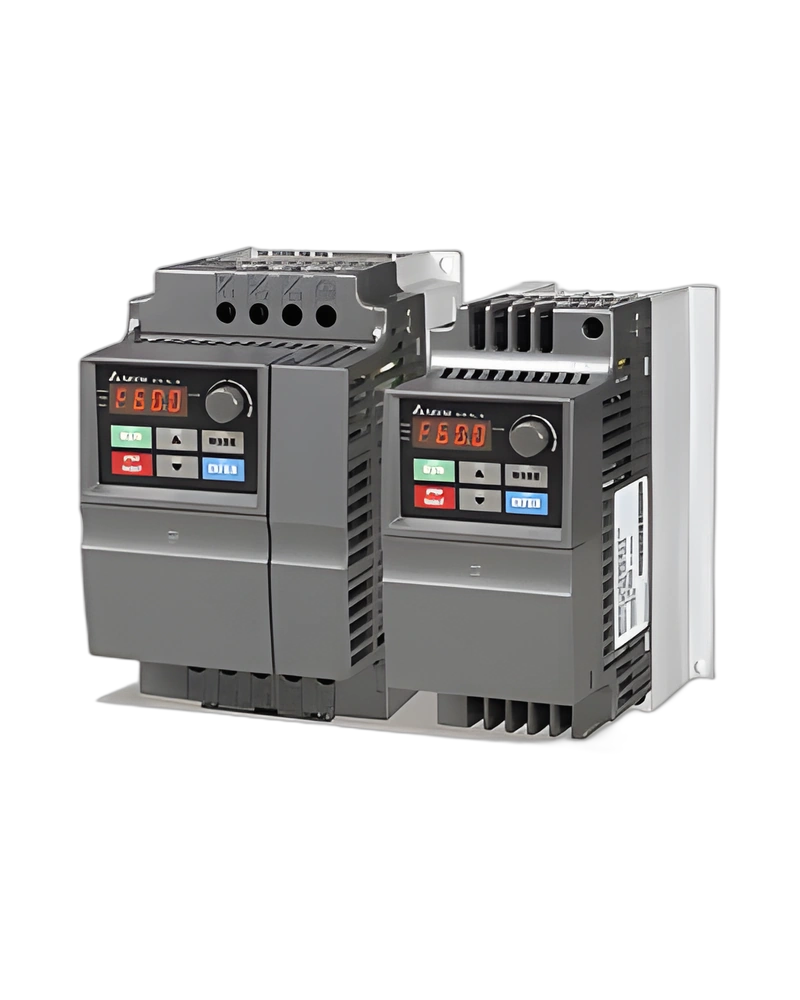

The DELTA VFD-EL-W Series is an industrial VFD intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Voltage: 230 V 460 V; Rated Voltage / Frequency: Single Phase, AC 200 V ~ 240 V，50 / 60 Hz Three Phase, AC 380 V ~ 480 V，50 / 60 H; Frame: W W1 H H1 D D1 S1 S2.
The VFD-EL-W Series is a VFD intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The VFD-EL-W Series can be considered for industrial systems and equipment requiring a VFD. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The DELTAVFD-EL-W Series is an industrial VFD. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Voltage | 230 V 460 V |
| Rated Voltage / Frequency | Single Phase, AC 200 V ~ 240 V，50 / 60 Hz Three Phase, AC 380 V ~ 480 V，50 / 60 H |
| Input Rating | Rated Input Current (A) 4.9 6.5 9.3 15.7 24.0 1.8 3.2 4.3 7.1 10.0 |
| Voltage Tolerance | ±10 % (180 V ~ 264 V) ±10 % (342 V ~ 528 V) |
| Frequency Tolerance | ±5 % (47 Hz ~ 63 Hz) |
| Frame A1 | Natural Cooling -10°C ~ 50°C 230 V: 0.2 ~ 0.75 kW 460 V: 0.4 ~ 0.75 kW |
| Frame A2 | Fan Cooling 460 V: 1.5 kW |
| Frame B | 230 V: 1.5 ~ 2.2 kW 460 V: 2.2 ~ 4.0 kW |
| Max. Applicable Motor Output (kW) | 0.2 0.4 0.75 1.5 2.2 0.4 0.75 1.5 2.2 4.0 |
| Max. Applicable Motor Output (HP) | 0.25 0.5 1.0 2.0 3.0 0.5 1.0 2.0 3.0 5.5 |
| Output Rating | Rated Output Capacity (kVA) 0.6 1.0 1.6 2.9 4.2 1.2 2.0 3.3 4.4 7.4 |
