The UNID UM-N-D family is the company's smart and multifunction quarter-turn actuator range for automated valve control. The series is designed around brushless DC motors and supports both ON-OFF and modulating operation, making it suitable for applications where a valve must be opened, closed or positioned to regulate process flow.
UNID specifies 75% duty-cycle operation for modulating service and 30% duty cycle for on/off service on the detailed smart actuator documentation. The actuator can control valve opening angle for flow regulation, with modulation available through current or voltage signals on applicable configurations. The BLDC motor is intended for frequent operation with reduced heat generation.
The official smart family includes UM1-N-D, UM2-5-N-D, UM2-7-N-D, UM3-N-D, UM3-1-N-D, UM4-N-D, UM5-N-D, UM6-N-D, UM8-N-D, UM10-N-D, UM11-N-D and UM12-N-D. The family selection table identifies torque coverage from approximately 6 Nm to 2500 Nm rated torque, while individual pages expose maximum torque values such as 35 Nm, 50 Nm, 70 Nm, 150 Nm, 300 Nm, 450 Nm, 600 Nm, 1100 Nm, 1350 Nm, 1450 Nm and 3500 Nm depending on model.

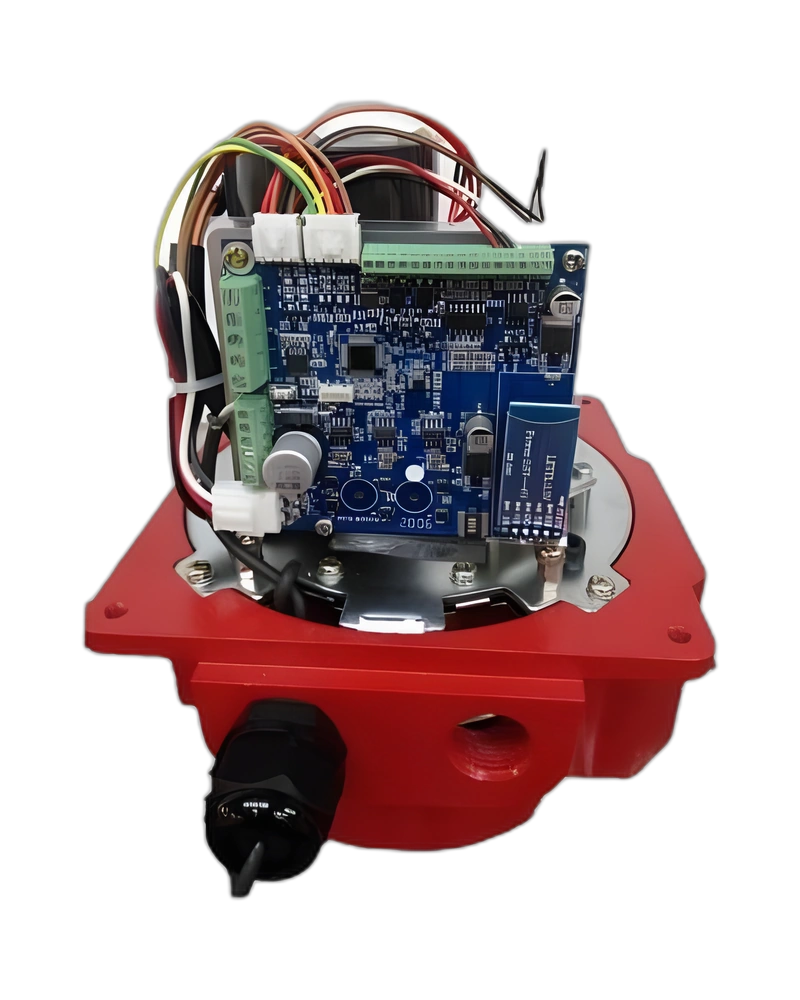

UNID specifies IP67 nylon housing as standard on many smart configurations and IP68 aluminum housing as an option. The smart actuator incorporates overload protection, double limit-position protection, valve-stuck protection, self-lock/mechanical locking and speed control. Plug-and-play modular construction is intended to simplify maintenance and function upgrades.
The smart family supports battery-type failsafe operation. UNID describes failsafe as moving the valve to a previously specified position when power fails. Backup power provides a related emergency function while allowing the end user to operate the valve to the desired position after power loss rather than using only a factory preset position.
| Feature | Specification |
|---|---|
| Product family | UM-N-D Smart Type Modulating |
| Representative models | UM1-N-D through UM12-N-D |
| Application | quarter-turn ball valves, butterfly valves, dampers and related rotary valves |
| Maximum torque across detailed family | up to 3500 Nm |
| Rated torque coverage in official selection | approximately 6–2500 Nm |
| Operating modes | ON-OFF and Modulating |
| Duty cycle | 30% ON-OFF; 75% Modulating |
| Motor | Brushless DC (BLDC) |
| Supply | AC100–240 V and DC24 V; model-dependent voltage details apply |
| Mounting | ISO5211, with F03/F04/F05/F07/F10/F12/F14/F16 selections by model |
| Protection | IP67 nylon housing standard on applicable models; IP68 aluminum housing option |
| Ambient temperature | -10°C to +60°C on detailed smart models |
| Humidity condition | <90% at 25°C on detailed models |
| Motor insulation | Class F |
| Control | modulating input options including 4–20 mA and voltage on applicable versions |
| Communication | RS-485 / Modbus option |
| Wireless control | Bluetooth/Wi-Fi function on applicable configurations |
| Feedback | voltage-free position feedback is standard on detailed smart models |
| Protection | overload, double limit position, valve stuck, mechanical lock/self-lock and speed control |
| Options | failsafe, modulation, extra limit switch, heater, backup power, RS-485, aluminum housing |
