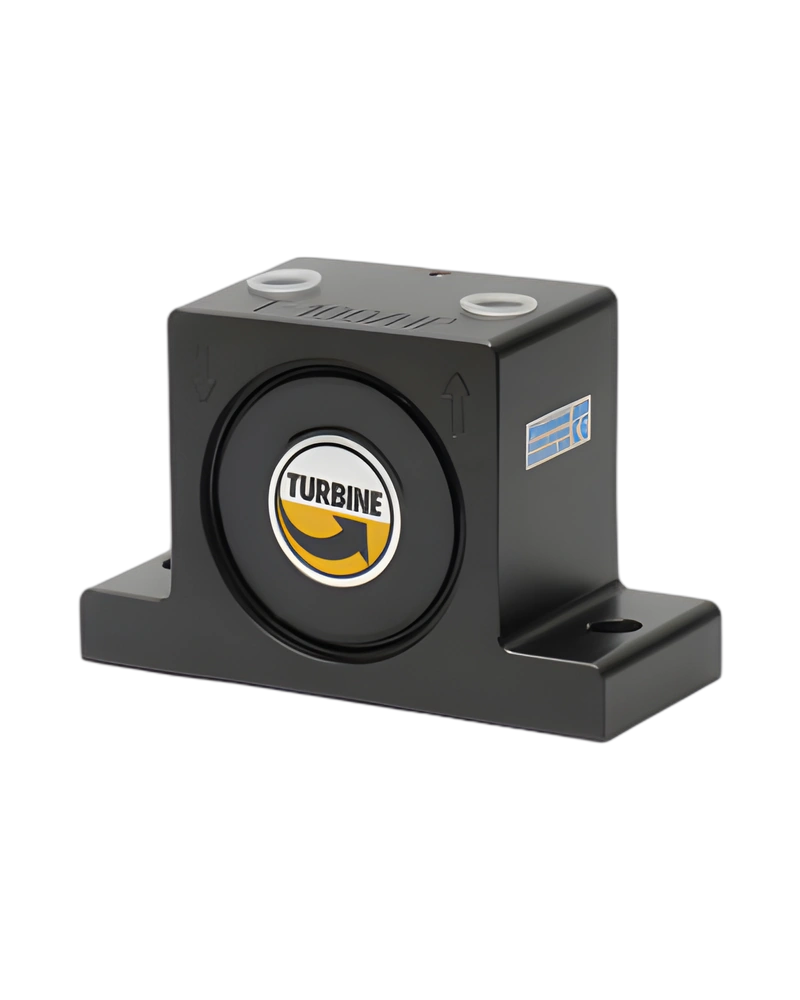

Findeva Turbine Vibrators T-80 / HP is a pneumatic turbine vibrator designed to generate strong vibration at large amplitude. The T-series uses a high-eccentric-torque rotor and continuously variable speed to match vibration output to the material and process.
The frequency, force and air-consumption figures shown are Findeva published technical data measured under the manufacturer's specified test conditions. Actual vibration on an installed structure depends on the mounting and the mass/stiffness of the equipment.
The Turbine Vibrators T-80 / HP generates vibration from the rotor's imbalance and high eccentric working torque. The T-series is designed for strong vibration at relatively high working torque and provides continuously variable operation.
At 2, 4 and 6 bar, the model operates at –, 9.0 and 10.5 ×10³ min⁻¹, with centrifugal force of –, 3470 and 4740 N.
The model uses an anodized extruded aluminium alloy housing, synthetic caps and a rotor supported by paired ball bearings. Published weight is 1.56 kg.
| Brand | Findeva |
|---|---|
| Product family | T Turbine Vibrator |
| Model | Turbine Vibrators T-80 / HP |
| Rated frequency @ 2 / 4 / 6 bar | – / 9.0 / 10.5 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | – / 3470 / 4740 N |
| Air consumption @ 2 / 4 / 6 bar | – / 260 / 385 l/min |
| Dimensions A / Width / C / D / E / F | 80 / 70 / 128 / 104 / 16 / 11 mm |
| Air connections | G 1/4" / G 3/8" |
| Weight | 1.56 kg |
| Maximum operating temperature | 100°C |
Emptying bunkers, screen filters, vibrating tables, preventing adhesion in pipelines and silos, transporting fine powders and moving bulk materials.
The Turbine Vibrators T-80 / HP is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | T Turbine Vibrator |
| Model | Turbine Vibrators T-80 / HP |
| Rated frequency @ 2 / 4 / 6 bar | – / 9.0 / 10.5 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | – / 3470 / 4740 N |
| Air consumption @ 2 / 4 / 6 bar | – / 260 / 385 l/min |
| Dimensions A / Width / C / D / E / F | 80 / 70 / 128 / 104 / 16 / 11 mm |
| Air connections | G 1/4" / G 3/8" |
| Weight | 1.56 kg |
| Maximum operating temperature | 100°C |
