Explore performance details, construction highlights, applications, and technical information in one clear overview.

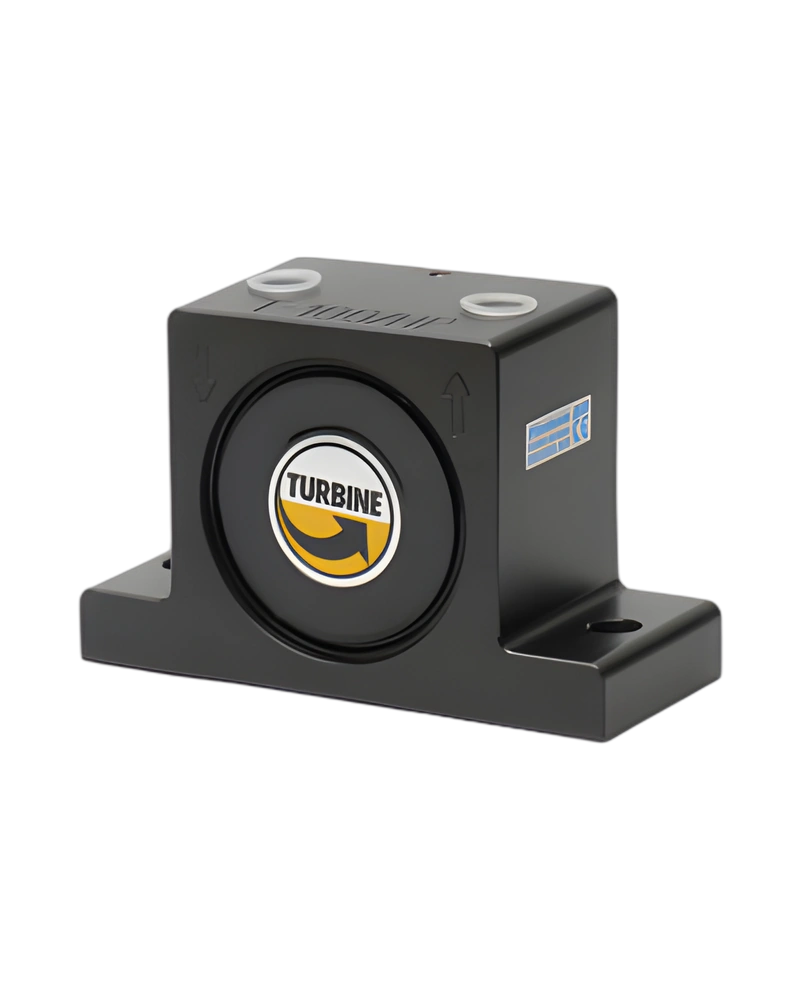

Findeva Turbine Vibrators T-50 / LP is a pneumatic turbine vibrator designed to generate strong vibration at large amplitude. The T-series uses a high-eccentric-torque rotor and continuously variable speed to match vibration output to the material and process.
The frequency, force and air-consumption figures shown are Findeva published technical data measured under the manufacturer's specified test conditions. Actual vibration on an installed structure depends on the mounting and the mass/stiffness of the equipment.
The Turbine Vibrators T-50 / LP generates vibration from the rotor's imbalance and high eccentric working torque. The T-series is designed for strong vibration at relatively high working torque and provides continuously variable operation.
At 2, 4 and 6 bar, the model operates at 17.0, 21.5 and 23.0 ×10³ min⁻¹, with centrifugal force of 700, 1240 and 1710 N.
The model uses an anodized extruded aluminium alloy housing, synthetic caps and a rotor supported by paired ball bearings. Published weight is 0.38 kg.
| Brand | Findeva |
|---|---|
| Product family | T Turbine Vibrator |
| Model | Turbine Vibrators T-50 / LP |
| Rated frequency @ 2 / 4 / 6 bar | 17.0 / 21.5 / 23.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 700 / 1240 / 1710 N |
| Air consumption @ 2 / 4 / 6 bar | 67 / 115 / 165 l/min |
| Dimensions A / Width / C / D / E / F | 50 / 46 / 86 / 68 / 12 / 7 mm |
| Air connections | G 1/8" / G 1/4" |
| Weight | 0.38 kg |
| Maximum operating temperature | 100°C |
Emptying bunkers, screen filters, vibrating tables, preventing adhesion in pipelines and silos, transporting fine powders and moving bulk materials.
The Turbine Vibrators T-50 / LP is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | T Turbine Vibrator |
| Model | Turbine Vibrators T-50 / LP |
| Rated frequency @ 2 / 4 / 6 bar | 17.0 / 21.5 / 23.0 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 700 / 1240 / 1710 N |
| Air consumption @ 2 / 4 / 6 bar | 67 / 115 / 165 l/min |
| Dimensions A / Width / C / D / E / F | 50 / 46 / 86 / 68 / 12 / 7 mm |
| Air connections | G 1/8" / G 1/4" |
| Weight | 0.38 kg |
| Maximum operating temperature | 100°C |
