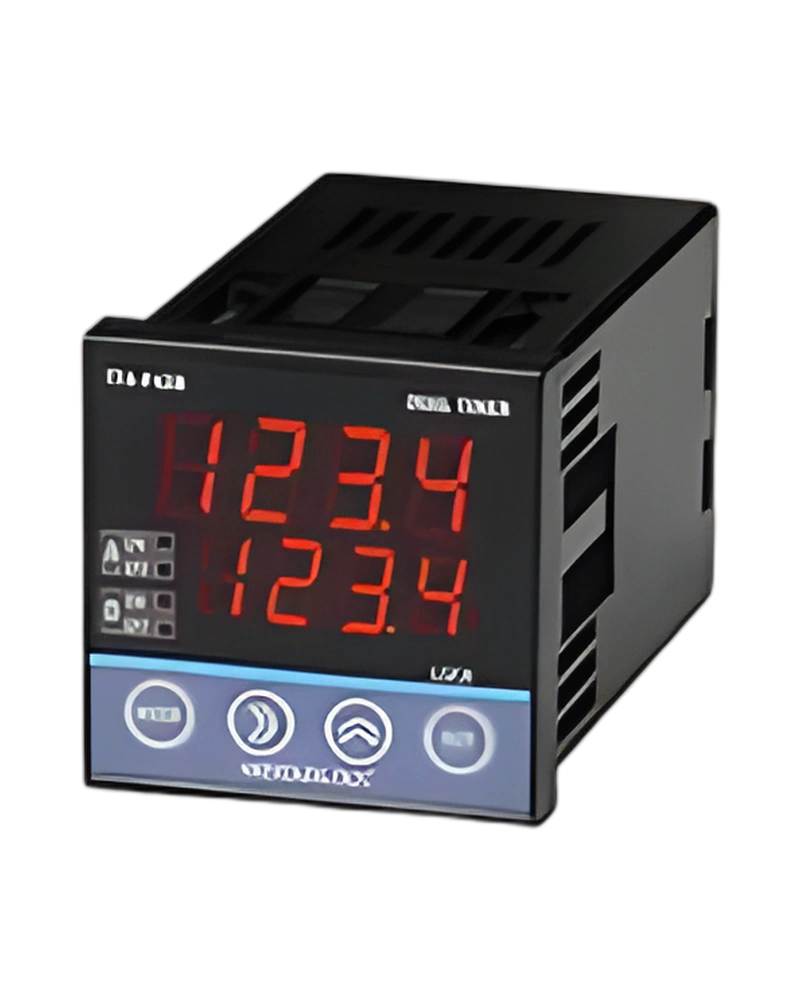

TT7H is a Hanyoung NUX counter / timer for counting events and controlling time-based operations. Its model configuration determines the input method, timing or counting range, display and output functions, with model information of TT7H - P41A. Input type: Non-voltage input | Impedance when disconnected : Max 1 KΩ, Remaining voltage when disconnected : Max 2 V Impedance when opened: Min 100 KΩ; Display type: ON time display : Red FND 4 digits (character height 18.7mm) OFF time display : Red FND 4 digits (character height 14.5mm); ON time display: Red FND 4 digits (character height 18.7mm); OFF time display: Red FND 4 digits (character height 14.5mm).
The operating range, signal conditions, display format, computation speed and connection method should be checked against the machine sequence before installation. External Connection type: Terminal type; Weight: Approx. 300g (Included the weight of box); Insulation resistance: Min 100 MΩ (500 V d.c. Megger standard, conductive part terminal and exposed non-charged metal part); Dielectric strength: 2000 V a.c. 50 / 60Hz for 2 min (between current-carrying terminals and exposed non-current-carrying metal parts).
Key strengths of the TT7H come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Input type: Non-voltage input | Impedance when disconnected : Max 1 KΩ, Remaining voltage when disconnected : Max 2 V Impedance when opened: Min 100 KΩ; Power voltage: 220 V a.c. 60 Hz; Display type: ON time display : Red FND 4 digits (character height 18.7mm) OFF time display : Red FND 4 digits (character height 14.5mm); Control output: Contact composition | Output : Instantaneous SPDT (1c); External Connection type: Terminal type.
The TT7H technical characteristics define the supported input conditions, counting or timing range, display resolution, computation speed and output behaviour. These values determine how the unit responds to machine signals. Power voltage: 220 V a.c. 60 Hz; Voltage fluctuation: ±10 % of the power voltage; Power consumption: About 9.6 VA (220 V a.c. 60 Hz); Control output: Contact composition | Output : Instantaneous SPDT (1c).
Additional technical characteristics include Contact capacity: NO contact : 250V a.c. 5 A resistive load, NC contact : 250 V a.c. 2 A resistive load; Output: Instantaneous SPDT (1c).
The physical design of TT7H should be considered together with the installation environment and the available mounting or display arrangement. Noise immunity: Square wave noise due to the noise simulator(pulse width : 1 us), ±2 kV (within operation power terminal); Vibration: Resistance | 10 - 55 Hz (cycle for 1min) Peak amplitude 0.75 mm for 1 hour each in X, Y and Z direction; Shock: Resistance | 300 m/s² 3 times each in X, Y and Z direction; Ambient temperature: -10 ~ 55 ℃ (without icing).
Further construction and environmental details include Storage temperature: -20 ~ 65 ℃ (without icing); Ambient humidity: 35 ~ 85 % RH.
Integration of TT7H begins with matching its connection, input or control signal and output requirements to the surrounding equipment. Input type: Non-voltage input | Impedance when disconnected : Max 1 KΩ, Remaining voltage when disconnected : Max 2 V Impedance when opened: Min 100 KΩ; Power voltage: 220 V a.c. 60 Hz; Display type: ON time display : Red FND 4 digits (character height 18.7mm) OFF time display : Red FND 4 digits (character height 14.5mm); Control output: Contact composition | Output : Instantaneous SPDT (1c).
Additional operating and interface details include External Connection type: Terminal type; ON time display: Red FND 4 digits (character height 18.7mm); OFF time display: Red FND 4 digits (character height 14.5mm). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose TT7H by confirming the exact model or configuration against the required operating conditions. The available model information is TT7H - P41A. Model: TT7H - P41A; Input type: Non-voltage input | Impedance when disconnected : Max 1 KΩ, Remaining voltage when disconnected : Max 2 V Impedance when opened: Min 100 KΩ; Power voltage: 220 V a.c. 60 Hz; Display type: ON time display : Red FND 4 digits (character height 18.7mm) OFF time display : Red FND 4 digits (character height 14.5mm).
Before installation, confirm Control output: Contact composition | Output : Instantaneous SPDT (1c); External Connection type: Terminal type; ON time display: Red FND 4 digits (character height 18.7mm). Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | TT7H - P41A |
| Power voltage | 220 V a.c. 60 Hz |
| Voltage fluctuation | ±10 % of the power voltage |
| Power consumption | About 9.6 VA (220 V a.c. 60 Hz) |
| Display type | ON time display : Red FND 4 digits (character height 18.7mm) OFF time display : Red FND 4 digits (character height 14.5mm) |
| External Connection type | Terminal type |
| Control output | Contact composition | Output : Instantaneous SPDT (1c) |
| Contact capacity | NO contact : 250V a.c. 5 A resistive load, NC contact : 250 V a.c. 2 A resistive load |
| Input type | Non-voltage input | Impedance when disconnected : Max 1 KΩ, Remaining voltage when disconnected : Max 2 V Impedance when opened: Min 100 KΩ |
| Minimum Signal Time | START | Min. 1 sec |
| Setting type | Recognized at all times (possible to modify when applying electric current) |
| Time error | ±0.01 % ±0.05 seconds or less |
| Relay life expectancy | Machinery | Min. 1,000 million |
| Electronic | Min. 10 million (250 V a.c. 3 A resistive load) |
| Insulation resistance | Min 100 MΩ (500 V d.c. Megger standard, conductive part terminal and exposed non-charged metal part) |
| Dielectric strength | 2000 V a.c. 50 / 60Hz for 2 min (between current-carrying terminals and exposed non-current-carrying metal parts) |
| Noise immunity | Square wave noise due to the noise simulator(pulse width : 1 us), ±2 kV (within operation power terminal) |
| Vibration | Resistance | 10 - 55 Hz (cycle for 1min) Peak amplitude 0.75 mm for 1 hour each in X, Y and Z direction |
| Error | 10 - 55 Hz (cycle for 1 min) Peak amplitude 0.5 mm for 10 min each in X, Y and Z direction |
| Shock | Resistance | 300 m/s² 3 times each in X, Y and Z direction |
| Error | 100 m/s² 3 times each in X, Y and Z direction |
| Ambient temperature | -10 ~ 55 ℃ (without icing) |
| Storage temperature | -20 ~ 65 ℃ (without icing) |
| Ambient humidity | 35 ~ 85 % RH |
| Weight | Approx. 300g (Included the weight of box) |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Counter / Timer | TT7H Instruction manual |
| 1 | CAD > 2D | Counter / Timer | TT7H (2D) |
| ON time display | Red FND 4 digits (character height 18.7mm) |
| OFF time display | Red FND 4 digits (character height 14.5mm) |
| Output | Instantaneous SPDT (1c) |
| NO contact | 250V a.c. 5 A resistive load, |
| NC contact | 250 V a.c. 2 A resistive load |
| voltage when disconnected | Max 2 V |
