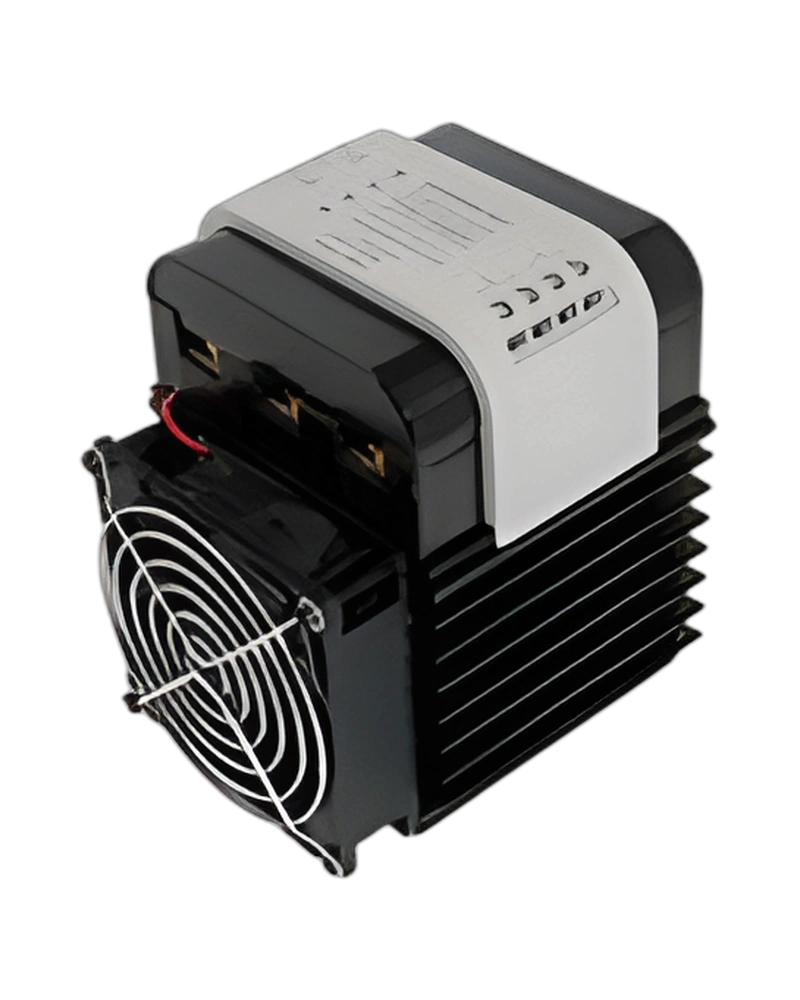

TPR-3M is a Hanyoung NUX thyristor power regulator for controlled power regulation of resistive loads. The configuration covers multiple current and voltage options, with model information of TPR-3M25L | TPR-3M45L | TPR-3M55L. Load voltage: 90 - 240 V a.c.; Circuit input power: 24 V d.c. 8 W; Power frequency: 50 / 60 Hz; Rated current: 25 A | 45 A | 55 A.
The selected rating should be matched to the load, control input, regulation method, cooling arrangement and operating environment of the installation. Display method: 4 LED display status and alarm status; Control method: Phase control (Fixed Cycle control, Variable Cycle control Option); Weight: 1,756 g; Insulation resistance: Min 100 MΩ (Base on 500 V d.c. mega).
Key strengths of the TPR-3M come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Rated current: 25 A | 45 A | 55 A; Load voltage: 90 - 240 V a.c.; Control method: Phase control (Fixed Cycle control, Variable Cycle control Option); Output voltage: More than 98 % of the power supply voltage (In case of maximum current input); Power frequency: 50 / 60 Hz.
The TPR-3M technical profile covers load rating, current input, power-control method, output voltage and cooling requirements. Together these parameters define the regulator configuration for resistive-load control. Output voltage: More than 98 % of the power supply voltage (In case of maximum current input); Dielectric strength: 2,500 V a.c. 50 / 60 Hz for 1 min; Storage temperature: -30 ~ 90 ℃; Ambient temperature: -20 ~ 80 ℃ (Without Condensation).
Additional technical characteristics include Ambient Humidity: 45 ~ 85 % R.H..
The physical design of TPR-3M should be considered together with the installation environment and the available mounting or display arrangement. Rated current: 25 A | 45 A | 55 A; Load voltage: 90 - 240 V a.c.; Control method: Phase control (Fixed Cycle control, Variable Cycle control Option); Output voltage: More than 98 % of the power supply voltage (In case of maximum current input).
Further construction and environmental details include Power frequency: 50 / 60 Hz; Applying load: Resistive load; Cooling method: Forced cooling (24 V d.c. FAN).
Integration of TPR-3M begins with matching the current input, control method, load voltage and cooling arrangement to the power circuit. Rated current: 25 A | 45 A | 55 A; Load voltage: 90 - 240 V a.c.; Control method: Phase control (Fixed Cycle control, Variable Cycle control Option); Output voltage: More than 98 % of the power supply voltage (In case of maximum current input).
Additional operating and interface details include Power frequency: 50 / 60 Hz; Applying load: Resistive load; Cooling method: Forced cooling (24 V d.c. FAN). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose TPR-3M by confirming the exact model or configuration against the required operating conditions. The available model information is TPR-3M25L | TPR-3M45L | TPR-3M55L. Model: TPR-3M25L | TPR-3M45L | TPR-3M55L; Rated current: 25 A | 45 A | 55 A; Load voltage: 90 - 240 V a.c.; Control method: Phase control (Fixed Cycle control, Variable Cycle control Option).
Before installation, confirm Output voltage: More than 98 % of the power supply voltage (In case of maximum current input); Power frequency: 50 / 60 Hz; Applying load: Resistive load. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | TPR-3M25L | TPR-3M45L | TPR-3M55L |
| Load voltage | 90 - 240 V a.c. |
| Circuit input power | 24 V d.c. 8 W |
| Power frequency | 50 / 60 Hz |
| Rated current | 25 A | 45 A | 55 A |
| Applying load | Resistive load |
| Control Input | 4 - 20 mA d.c. (Impedance : 100 Ω) |
| Control method | Phase control (Fixed Cycle control, Variable Cycle control Option) |
| Output voltage | More than 98 % of the power supply voltage (In case of maximum current input) |
| Cooling method | Forced cooling (24 V d.c. FAN) |
| Display method | 4 LED display status and alarm status |
| Insulation resistance | Min 100 MΩ (Base on 500 V d.c. mega) |
| Dielectric strength | 2,500 V a.c. 50 / 60 Hz for 1 min |
| Line noise | Noise by noise simulator (2,000 V) |
| Storage temperature | -30 ~ 90 ℃ |
| Ambient temperature | -20 ~ 80 ℃ (Without Condensation) |
| Ambient Humidity | 45 ~ 85 % R.H. |
| Weight | 1,756 g |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Thyristor Power Regulator | TPR-3M |
| 1 | CAD > 2D | Thyristor Power Regulator | TPR-3M (2D) |
| 2 | CAD > 3D | Thyristor Power Regulator | TPR-3M (3D) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Thyristor Power Regulator | TPR-3M (EMC) |
| 2 | Certification > CE | Thyristor Power Regulator | TPR-3M (LVD) |
| 4 - 20 mA d.c. (Impedance | 100 Ω) |
