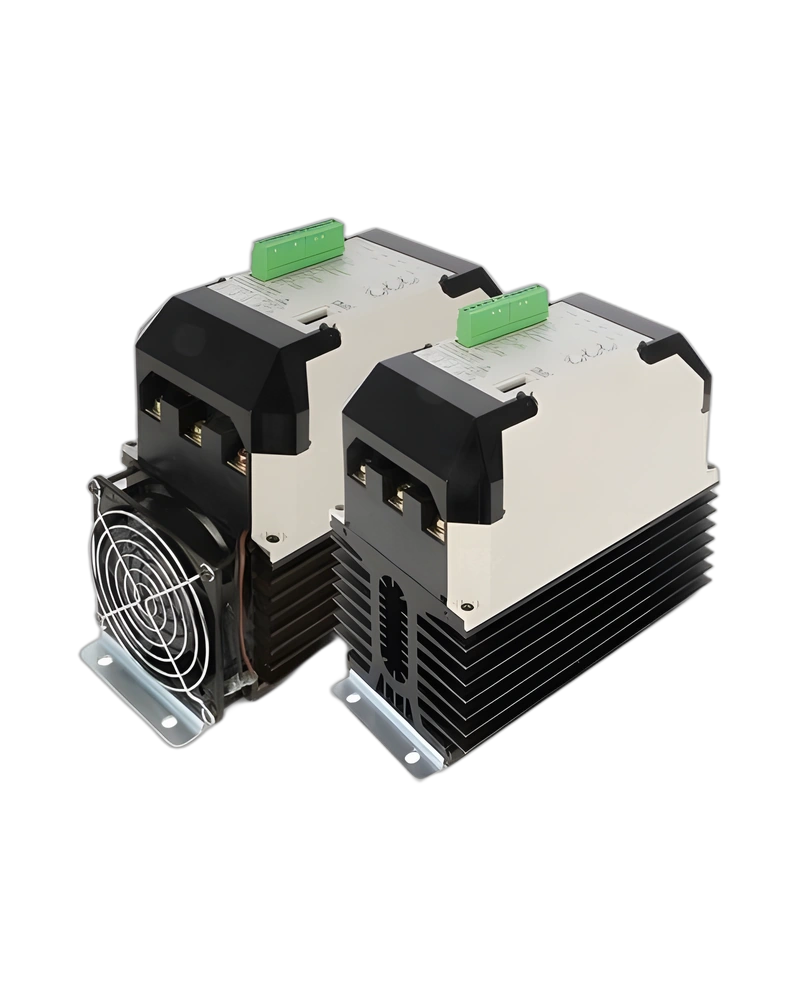

TPR-2SL is a Hanyoung NUX thyristor power regulator for controlled power regulation of resistive loads. The configuration covers multiple current and voltage options, with model information of Low | 2SL 040L | 2SL 055L | 2SL 070L. Circuit input power: 100 - 240 V a.c.; Power supply voltage: Low | 100 - 240 V a.c.; Power frequency: 50 Hz / 60 Hz (Dual usage); Power supply voltage: L | 100 - 240 V a.c. (Low).
The selected rating should be matched to the load, control input, regulation method, cooling arrangement and operating environment of the installation. Display method: Display by LED; Control method: Phase control, Fixed Cycle control, Variable Cycle control, ON / OFF control; Movement type: SOFT START, SOFT UP / DOWN; Weight: 1388g | 1478 g.
Key strengths of the TPR-2SL come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Rated current (40 ℃ Standard): 40 A | 55 A | 70 A; Control method: Phase control, Fixed Cycle control, Variable Cycle control, ON / OFF control; Movement type: SOFT START, SOFT UP / DOWN; Output voltage: More than 98 % of the power supply voltage (In case of maximum current input); Power frequency: 50 Hz / 60 Hz (Dual usage).
The TPR-2SL technical profile covers load rating, current input, power-control method, output voltage and cooling requirements. Together these parameters define the regulator configuration for resistive-load control. Rated current (40 ℃ Standard): 40 A | 55 A | 70 A; Rated current (40 ℃ Standard): 90 A | 110 A | 130 A | 160 A | 200 A; Output voltage: More than 98 % of the power supply voltage (In case of maximum current input); Output control range: 0 ~ 100 %.
Additional technical characteristics include Rated current: 040 | 40 A; Insulation resistance: Min 100 MΩ (Base on 500 V d.c. mega); Dielectric strength: 3,000 V a.c. 50 / 60 Hz for 1 min.
The physical design of TPR-2SL should be considered together with the installation environment and the available mounting or display arrangement. Weight: 2820 g; Ambient temperature & humidity: 0 ~ 40 ℃ (Without Condensation), 30 ~ 85 % RH; Storage temperature: -25 ℃ ~ 70 ℃; Rated current (40 ℃ Standard): 40 A | 55 A | 70 A.
Further construction and environmental details include Control method: Phase control, Fixed Cycle control, Variable Cycle control, ON / OFF control; Movement type: SOFT START, SOFT UP / DOWN; Output voltage: More than 98 % of the power supply voltage (In case of maximum current input).
Integration of TPR-2SL begins with matching the current input, control method, load voltage and cooling arrangement to the power circuit. Rated current (40 ℃ Standard): 40 A | 55 A | 70 A; Control method: Phase control, Fixed Cycle control, Variable Cycle control, ON / OFF control; Movement type: SOFT START, SOFT UP / DOWN; Output voltage: More than 98 % of the power supply voltage (In case of maximum current input).
Additional operating and interface details include Power frequency: 50 Hz / 60 Hz (Dual usage); Applying load: Resistive load; Cooling method: Natural cooling | Forced cooling. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose TPR-2SL by confirming the exact model or configuration against the required operating conditions. The available model information is Low | 2SL 040L | 2SL 055L | 2SL 070L. Model: Low | 2SL 040L | 2SL 055L | 2SL 070L; High: 2SL 040H | 2SL 055H | 2SL 070H; Model: Low | 2SL 090L | 2SL 110L | 2SL 130L | 2SL 160L | 2SL 200L; High: 2SL 090H | 2SL 110H | 2SL 130H | 2SL 160H | 2SL 200H.
Before installation, confirm High: 380 - 440 V a.c.; Model: Code | Content. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | Low | 2SL 040L | 2SL 055L | 2SL 070L |
| High | 2SL 040H | 2SL 055H | 2SL 070H |
| Circuit input power | 100 - 240 V a.c. |
| 6 W | 16 W |
| Rated current (40 ℃ Standard) | 40 A | 55 A | 70 A |
| Fuse installation | None |
| Cooling method | Natural cooling | Forced cooling |
| Weight | 1388g | 1478 g |
| Model | Low | 2SL 090L | 2SL 110L | 2SL 130L | 2SL 160L | 2SL 200L |
| High | 2SL 090H | 2SL 110H | 2SL 130H | 2SL 160H | 2SL 200H |
| Rated current (40 ℃ Standard) | 90 A | 110 A | 130 A | 160 A | 200 A |
| Fuse installation | Built-in Fuse |
| Weight | 2820 g |
| Power supply voltage | Low | 100 - 240 V a.c. |
| High | 380 - 440 V a.c. |
| Power frequency | 50 Hz / 60 Hz (Dual usage) |
| Applying load | Resistive load |
| Control Input | Current input | 4 - 20 mA d.c. (Impedance : 100 Ω) |
| Voltage input | 1 - 5 V d.c. (Order specification : 0 - 10 V d.c.) |
| Contact input | ON / OFF |
| External VR | External volume (10 ㏀) |
| Control method | Phase control, Fixed Cycle control, Variable Cycle control, ON / OFF control |
| Movement type | SOFT START, SOFT UP / DOWN |
| Output voltage | More than 98 % of the power supply voltage (In case of maximum current input) |
| Display method | Display by LED |
| Insulation resistance | Min 100 MΩ (Base on 500 V d.c. mega) |
| Output control range | 0 ~ 100 % |
| Dielectric strength | 3,000 V a.c. 50 / 60 Hz for 1 min |
| Line noise | Noise by noise simulator (3,000 V) |
| Ambient temperature & humidity | 0 ~ 40 ℃ (Without Condensation), 30 ~ 85 % RH |
| Storage temperature | -25 ℃ ~ 70 ℃ |
| Model | Code | Content |
| TPR-2SL | - | Slim type Single phase power regulator |
| Rated current | 040 | 40 A |
| 055 | 55 A |
| 070 | 70 A |
| 090 | 90 A | Built-in Fuse |
| 110 | 110 A |
| 130 | 130 A |
| 160 | 160 A |
| 200 | 200 A |
| Power supply voltage | L | 100 - 240 V a.c. (Low) |
| H | 380 - 440 V a.c. (High) |
| Options | C | RS485 |
| F | Built-in Fuse (Only 40/55/70 A) |
| H1 | H2 |
| 40 / 55 A | 171.0 mm | 183.0 mm |
| 70 A (With Cooling fan) | 191.0 mm | 203.0 mm |
| 90 A (Without Cooling fan) | 205.0 mm | 219.0 mm |
| 110 / 130 / 160 / 200 A | 231.5 mm | 245.5 mm |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Thyristor Power Regulator | TPR-2SL Instruction manual |
| 1 | CAD > 2D | Thyristor Power Regulator | TPR-2SL (40A~70A)_2D |
| 2 | CAD > 2D | Thyristor Power Regulator | TPR-2SL (90A~200A)_2D |
| 3 | CAD > 3D | Thyristor Power Regulator | TPR-2SL (3D) |
| 1 | Software > Program | ALL | Communication Protocol Examples |
| 2 | Software > Program | ALL | TCS Integrated Communication Program Installation file |
| 3 | Software > Communication data | ALL | TCS Integrated Communication Program Manual(EN) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Thyristor Power Regulator | TPR-2SL (LVD) |
| 2 | Certification > CE | Thyristor Power Regulator | TPR-2SL (EMC,LVD) |
| 3 | Certification > CE | Thyristor Power Regulator | TPR-2SL070H (EMC) |
| 4 - 20 mA d.c. (Impedance | 100 Ω) |
| 1 - 5 V d.c. (Order specification | 0 - 10 V d.c.) |
