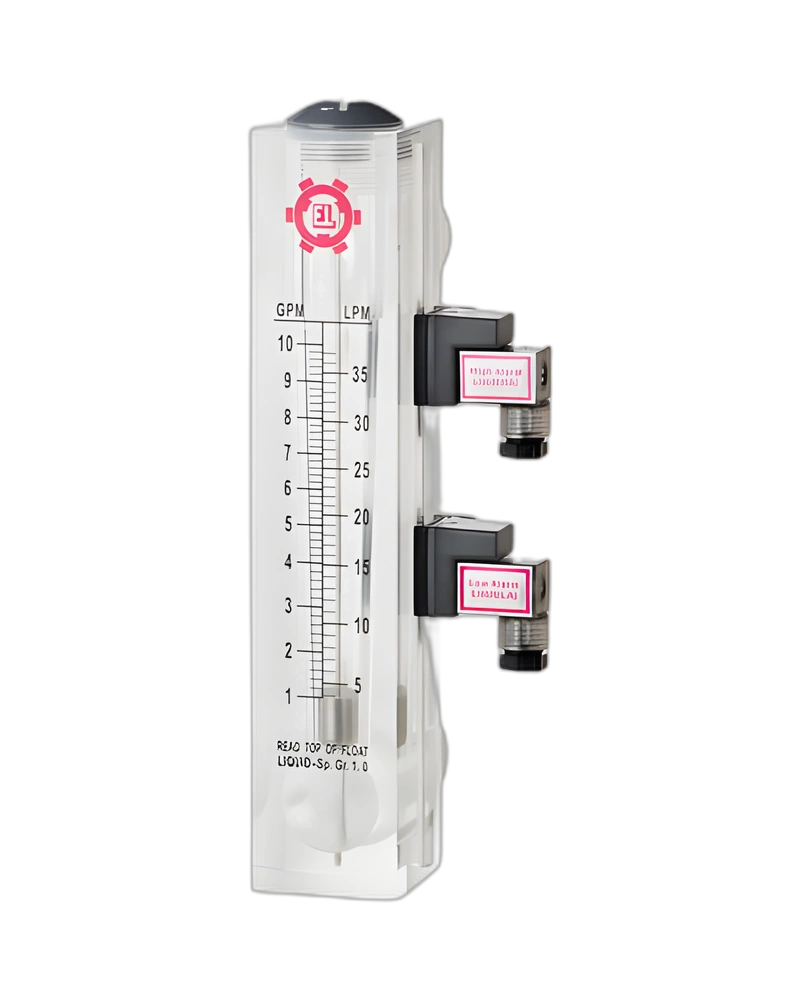

The ELETTROTEC TFM2E13VG850AF - Variable Area flow meter with two adjustable alarms - Variable Area flow meter with two adjustable alarms is a precision variable area flow meter with two adjustable alarms, designed for industrial fluid measurement. This flow meter operates reliably up to 10 bar pressure and 750 l/min flow rate, with a 4% accuracy rating and temperature range of 0°C to +60°C. It features a 24V DC power supply and is suitable for applications requiring precise flow monitoring in pipelines.
The ELETTROTEC TFM2E13VG850AF - Variable Area flow meter with two adjustable alarms - Variable Area flow meter with two adjustable alarms is a high-precision variable area flow meter engineered for demanding industrial environments. This flow meter delivers accurate measurement of liquid and gas flows across a wide range of operating conditions, featuring two adjustable alarms to provide real-time monitoring and early warning of flow anomalies. With a maximum flow rate of 750 l/min and a pressure rating of 10 bar, it is ideal for applications where precise flow control and reliable operation are critical. The device operates within a temperature range of 0°C to +60°C and maintains a 4% accuracy specification, ensuring consistent performance in both standard and challenging industrial settings.
The ELETTROTEC TFM2E15VG1400AS features a maximum operating voltage of 24V, voltage intensity of 3A, and a switching capacity of 60W DC or 60VA AC. It is designed to operate within a pressure range of 0 to 10 bar and a temperature range of 0°C to +60°C. The flow meter has a precision of 4% and supports thread connections from G1/2" to G2. The TFM2E13VG850AF - Variable Area flow meter with two adjustable alarms is rated for maximum flow rates of 750 l/min and 1400 Nm³/h, ensuring versatility across diverse industrial applications.
This flow meter operates effectively in environments with temperatures ranging from 0°C to +60°C, making it suitable for both indoor and outdoor industrial installations. The maximum pressure rating of 10 bar ensures robust performance in high-pressure systems, while the 4% accuracy specification guarantees reliable flow measurements across varying conditions. The TFM2E13VG850AF - Variable Area flow meter with two adjustable alarms is designed for continuous operation in industrial settings without requiring frequent recalibration.
The TFM2E13VG850AF - Variable Area flow meter with two adjustable alarms is compatible with a range of standard pipe threads including G1/2", G3/4", G1", G1 1/2", and G2. This versatility allows for easy integration into existing pipeline systems without the need for additional adapters. The device's 24V DC power supply and 3A current rating ensure compatibility with standard industrial power sources, while the insulation impedance of greater than 105 Ω provides excellent electrical safety.
The TFM2E13VG850AF - Variable Area flow meter with two adjustable alarms - Variable Area flow meter with two adjustable alarms is an industrial Flow. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Max. operating voltage | 24 V |
| Voltage intensity | 3 A |
| Switching voltage in DC / AC | DC 60 W – AC 60 VA |
| Threads | G1/2″ – G3/4″ – G1″ – G1 1/2″ – G2 |
| Max. flow rate | 750 l/min. – 1400 Nm 3 /h |
| Max. pressure | 10 bar |
| Working temperature | 0°C to + 60°C |
| Pressure máx. 10 bar | Max. pressure 10 bar |
| temperature range 0°C...60°C | temperature range 0°C to 60°C |
| Voltage nominal 24V | Rated voltage 24V |
| Current nominal 3A | Rated amforage 3A |
| Resistencia de aislamiento >105 Ω | Insulation impedance >105 Ω |
