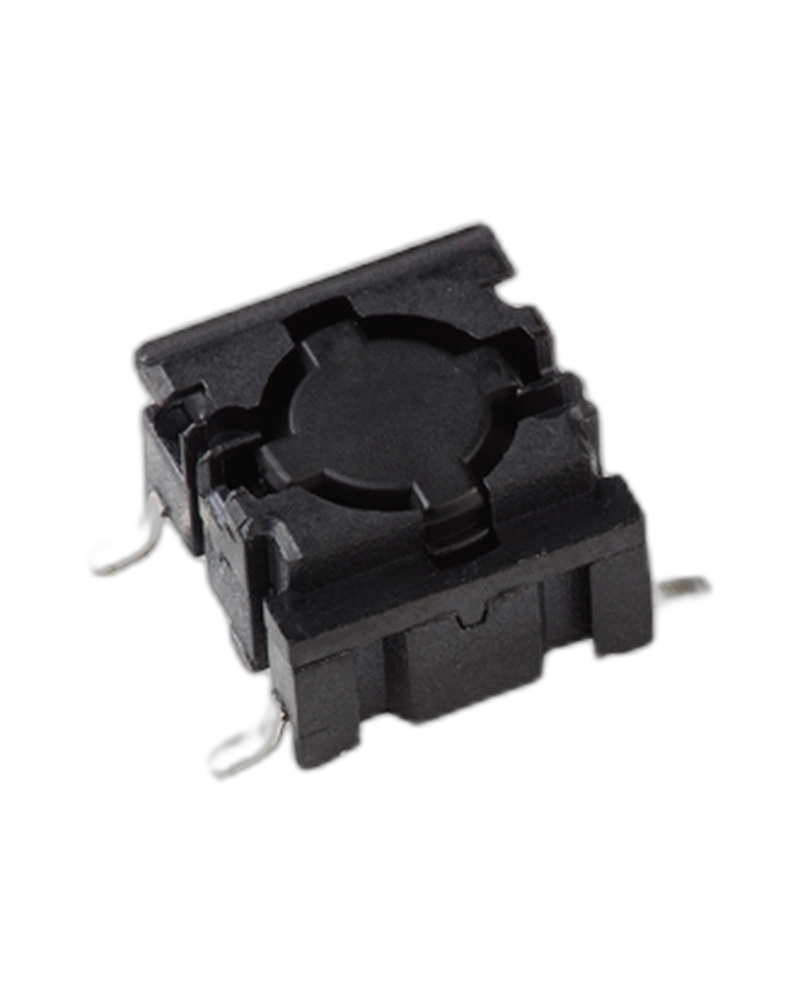

The APEM Tactile Switches Multimec™ 5G is a high-reliability, momentary single-pole switch designed for industrial applications. With a 10 x 10 mm footprint, 6.4 mm height, 10,000,000 cycle life, IP67 sealing, and 50 mA / 24 VDC operation, it delivers robust performance in demanding environments. Available in through-hole, surface mount, or right-angle through-hole configurations with optional LED illumination for enhanced visibility.

Product Overview

The APEM Multimec™ 5G Tactile Switches are engineered for extreme industrial conditions, combining high durability with precise functionality. Featuring a 10 x 10 mm footprint and 6.4 mm height, these switches deliver exceptional reliability with a rated lifetime of 10,000,000 operations (NO function) and 10,000,000 cycles. The IP67 sealed design ensures protection against dust and water immersion, while the 50 mA / 24 VDC operating current and 2.0 N actuation force make them suitable for applications requiring precise, repeatable switching. Available in both through-hole and surface mount configurations with optional LED illumination, the Multimec™ 5G series provides a versatile solution for industrial automation systems where long-term performance and environmental resilience are critical.

Electrical Specifications

The Multimec™ 5G switches operate within a 50 mA / 24 VDC current range, ensuring compatibility with standard industrial power supplies. The momentary single-pole design allows for quick activation and deactivation cycles, while the 2.0 N actuation force provides consistent user feedback without excessive effort. The switches are rated for 10,000,000 operations (NO function), making them ideal for high-cycle applications where longevity is critical.

Environmental Performance

Engineered for harsh industrial environments, the Multimec™ 5G switches feature IP67 sealing, protecting against dust ingress and water immersion up to 1 meter. The switches maintain reliable operation across a temperature range of -40°C to +160°C for the switch body and -40°C to +85°C for the LED, ensuring performance in extreme conditions. This robust environmental rating supports deployment in challenging settings such as automotive manufacturing, heavy machinery, and outdoor industrial installations.

Mounting and Configuration Options

The Multimec™ 5G switches offer flexible mounting options, including through-hole (TH), surface mount (SMD), and right-angle through-hole configurations. This versatility allows integration into a wide range of PCB layouts and mechanical assemblies. Additionally, the switches can be equipped with high-intensity green LEDs for improved visibility in low-light conditions, or configured for night vision (NVIS) applications to enhance safety in dark environments.

Application Relevance

The Multimec™ 5G tactile switches are particularly suited for applications requiring high reliability and environmental resilience, such as automotive assembly lines, industrial control panels, and machinery with frequent switching demands. Their momentary operation and long cycle life make them ideal for use in safety-critical systems where consistent performance over time is essential.

Technical Specifications

Product Summary

The APEMTactile Switches Multimec™ 5G is presented using the documented product characteristics available for this model.
