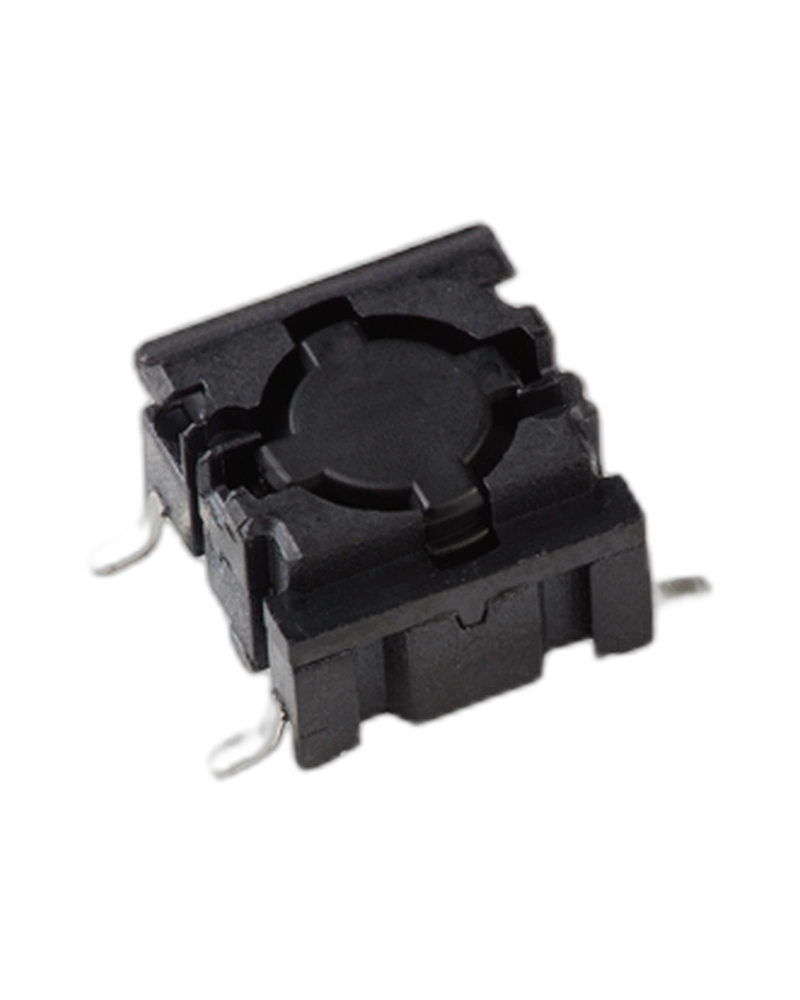

5GSH92022Q The 5GSH92022Q PCB Switch features surface mount design, 20 N actuation force, and a green LED for user feedback, ensuring reliable performance in electronic devices. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Force | 20 N |
| Temperature | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Feature | Specification |
|---|---|
| Insulation resistance | >10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Conta |
| Contact resistance | <30m Ω - typ. 10m Ω |
| Mounting | Surface Mount,LED:Green |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Temperature Range / Accuracy | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
