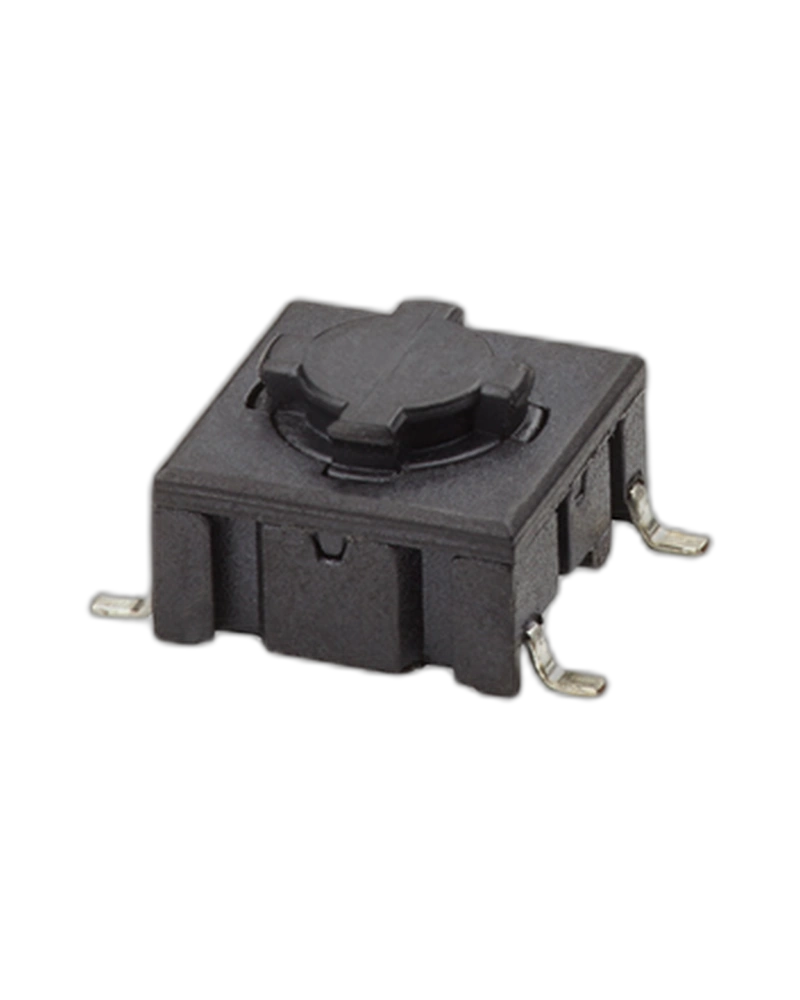

5ETH965RAS The 5ETH965RAS PCB Switch features through hole mounting and a 65 N actuation force for smooth, reliable operation and easy installation. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Force | 6.5 N |
| Temperature | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| Through-hole (TH) or surface mount (SMD) or right angel through-hole 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| Feature | Specification |
|---|---|
| Insulation resistance | >10M Ω Recommended load: Silver- 0.5-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Recommended load: Silver- 0.5-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Contact |
| Contact resistance | <30m Ω - typ. 10m Ω |
| Mounting | Through-hole |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Temperature Range / Accuracy | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
| Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5NNO or NC/NO |
