Explore performance details, construction highlights, applications, and technical information in one clear overview.

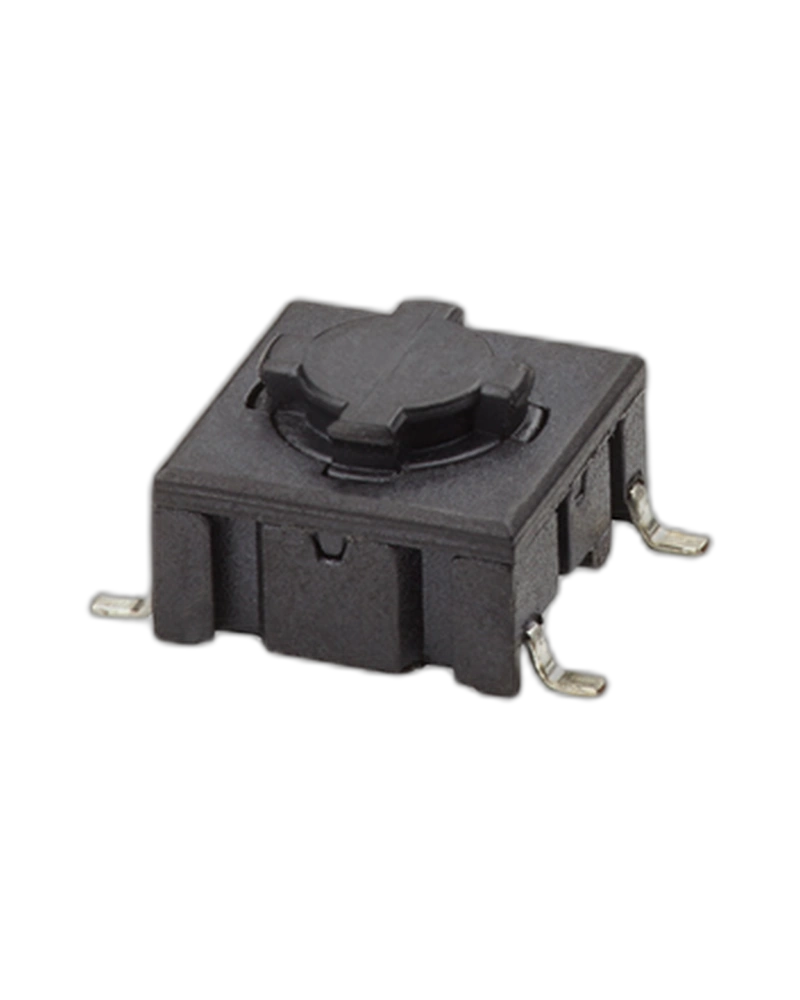

5ESH935R Multimec™ 5G switch features a snap-on cap retention system, levelled actuator, and high-temperature material with 3 standard actuation forces for durability. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Force | 6.5 N |
| Through-hole (TH) or surface mount (SMD) or right angel through-hole 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| Temperature | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| Through-hole (TH) or surface mount (SMD) or right angel through-hole 50 mA / 24 VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| 50 mA / 24 VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| Humidity | 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85 °C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC 529: IP67 |
| material | with 3 standard actuation forces for durability. |
| Feature | Specification |
|---|---|
| Insulation resistance | >10 M Ω Recommended load: Silver- 0.5 - 50 mA 24 VDC Gold - 0.5μ - 50 mA 24 VDC Contact bounce: <2 mS - typically 0.5 mS Recommended load: Silver- 0.5 - 50 mA 24 VDC Gold - 0.5μ - 50 mA 24 VDC Contact bounce: <2 mS - typ |
| Contact resistance | <30 m Ω - typ. 10 m Ω |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| Temperature Range / Accuracy | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| 50 mA / 24 VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | -40/+160 °C IP67 sealing Actuation force: 2.0 N, 3.5 N, 6.5 N NO or NC/NO (NCNO function is not sold in Japan) |
| Humidity | 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85 °C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC 529: IP67 |
| Housing Material | with 3 standard actuation forces for durability. |
