SWITCH GUARDS SG 90 Series

SG 90 Series Switch guards prevent any inadvertent lever operation. When the guard is raised, the lever can be operated freely. When the guard is fully depressed, the lever is reset/locked in a stable position. They are designed for use on switches with Ø 11,9 (.468) or Ø 12 (.472) threaded bushing and lever length 17,5 (.688) outside bushing.

Key Features

• Note : For correct switch operation, the switch guard should be adjusted properly by means of 2 nuts.
• SG 90 Series 90H52 Colors : Black Shapes : Locks in Up Position Bushing Shapes : Keyway Down
• 90H52
• SG 90 Series 90D53 Colors : Green Shapes : Locks in Up Position Bushing Shapes : Keyway Right
• 90D53
• SG 90 Series 90D52 Colors : Black Shapes : Locks in Up Position Bushing Shapes : Keyway Right
• 90D52

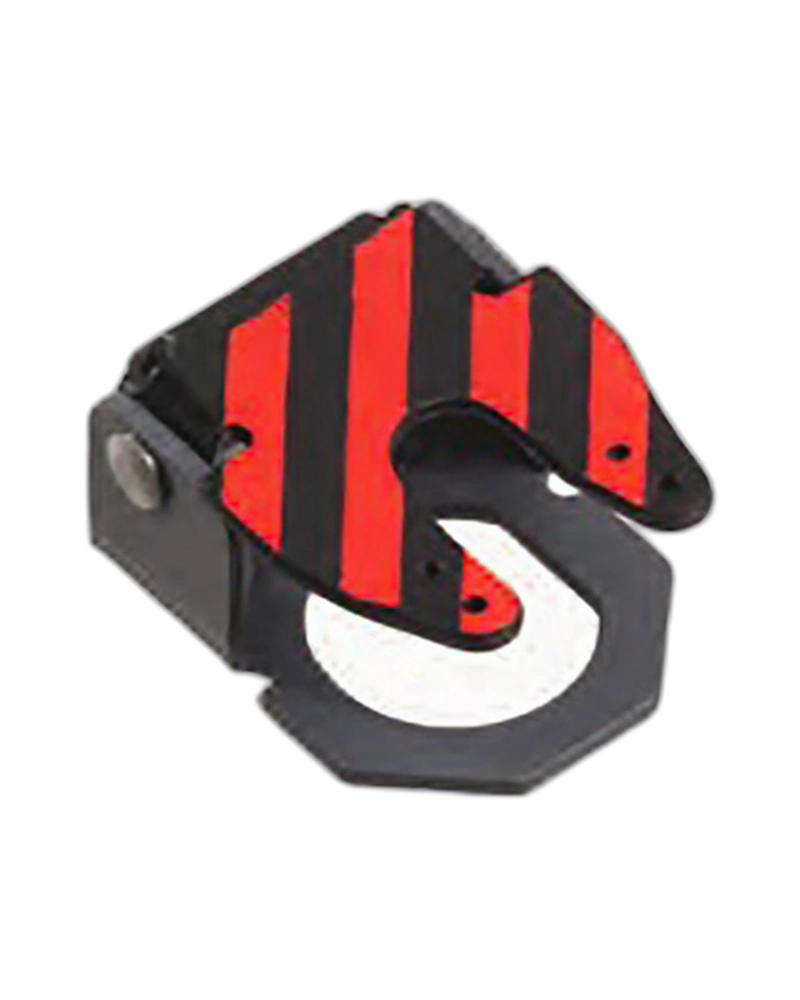

• SG 90 Series 90D50C Colors : Striped Shapes : Locks in Up Position Bushing Shapes : Keyway Right
• 90D50C
• SG 90 Series 90D50B Colors : Striped Shapes : Locks in Up Position Bushing Shapes : Keyway Right
• 90D50B
• SG 90 Series 90D45 Colors : Yellow Shapes : Locks in Down Position Bushing Shapes : Keyway Right
• Prevent accidental lever operation Holes for wiring a seal Many options available Models for 2 or 3 positions switches
• Holes for wiring a seal Many options available Models for 2 or 3 positions switches
• Aug 16, 2024 · SG 90 Series 90B56 The 90B56 Panel Switch features a sleek, durable design in vibrant red. Easy to install and operate, it's the perfect upgrade for your control panel setup.
• Aug 16, 2024 · SG 90 Series 90C36 The 90C36 Panel Switch features a sleek red design, durable construction, and easy installation, providing style and reliable protection for your panel.
• Aug 16, 2024 · SG 90 Series 90A44 The 90A44 Panel Switch features a sleek, sturdy design in grey, ensuring safety by preventing accidental switches while enhancing your setup's style.
• Many options available Models for 2 or 3 positions switches
• Models for 2 or 3 positions switches
• Datasheet 3D CAD Files Name Last Updated File Type File Size safety_guards_serie_switchguard_90 16/08/2024 .PDF 1.26MB
• Aug 16, 2024 · Datasheet 3D CAD Files Name Last Updated File Type File Size safety_guards_serie_switchguard_90 16/08/2024 .PDF 1.26MB
• Holes for wiring a seal optional
• Colors : Black
• Shapes : Locks in Up Position
• Bushing Shapes : Keyway Down
• Colors : Green
• Bushing Shapes : Keyway Right
• Colors : Striped
