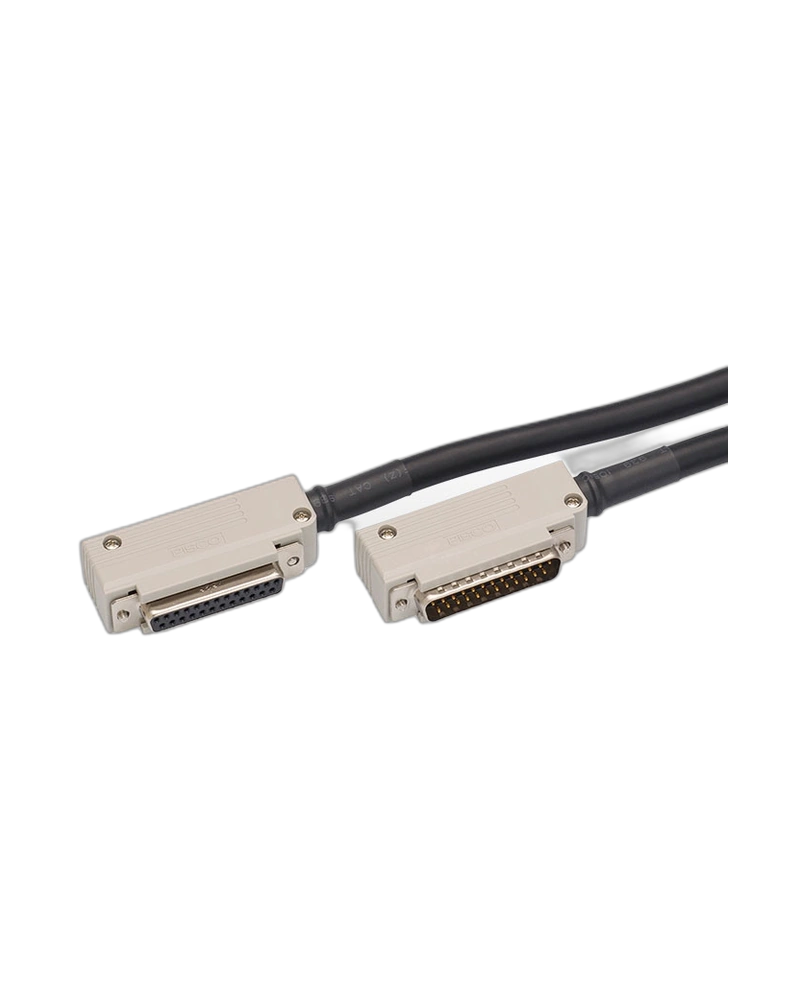

The Sub-D connector is a compact, reliable interface designed for use in industrial vacuum and control systems. It provides a secure electrical connection between solenoid valves and other control components such as vacuum generators and external vacuum controllers, ensuring stable signal transmission in demanding environments.
Constructed with stranded soft copper wire for conductors, the connector features a semi-hard vinyl insulator and a soft vinyl sheath. The sheath is uniformly black, offering durability and resistance to environmental factors while maintaining electrical integrity.
The connector offers selectable cable lead-out direction—either from the front or rear (fitting side or valve side)—allowing users to configure wiring based on installation constraints and space limitations. This flexibility ensures optimal fit within tight or complex mechanical setups.
The Sub-D connector is rated for operation at a maximum temperature of 75℃ and supports voltages up to 60 VAC or 60 VDC. It can withstand transient voltages of 350 VAC or 500 VDC for one minute, providing robust protection against voltage surges during operation.
Available in multiple core configurations—9 cores and 25 cores—the connector is designed to match specific system requirements. The approximate weights are 60 kg/km for 9-core and 135 kg/km for 25-core variants, enabling accurate weight planning during installation.
The Sub-D connector is specifically compatible with PISCO's Solenoid Valve SVR10 and SVA20 series, as well as the Vacuum Generator VZ and External Vacuum Controller VZP. Integration is straightforward when used in conjunction with these products to form a complete vacuum control system.
| Specification | Details |
|---|---|
| Conductor size | 0.3 mm 2 |
| Conductor material | Stranded Soft Copper Wire |
| Insulator material | Semi-Hard Vinyl |
| Sheath material | Soft Vinyl |
| Sheath color | Black |
| Rated Voltage | 60 VAC or 60 VDC |
| Rated Temperature | 75℃ |
| Approx.Weight | 9 cores
