Explore performance details, construction highlights, applications, and technical information in one clear overview.

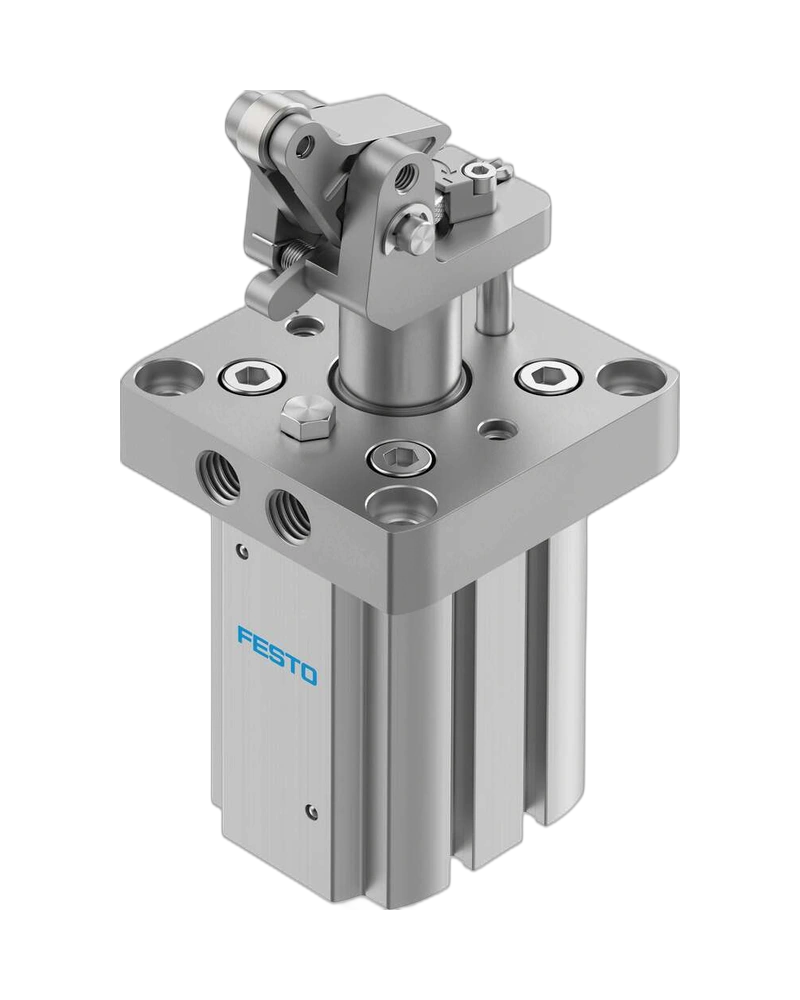

Festo DFST-32-20-D-Y4-A-G2 is a pneumatic cylinder developed for compact, repeatable operation in automated equipment. Its configuration combines the dimensional, operating and connection characteristics listed for this model, allowing the component to be selected around the available installation space and required machine function.
Function: Roller version; Operating pressure: 145 psi; Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]; Position sensing: Via proximity switch; Cushioning: Elastic cushioning rings/plates at both ends, Shock absorber, adjustable, at front; Mounting position: Vertical; Type of mounting: Switching; Mode of operation: Double-acting; Pneumatic connection: G1/8.
These characteristics determine how the component is connected, actuated, sensed and installed within an automation system. Configuration-specific options should be selected together with the complete model designation.
Operating pressure: 145 psi; Ambient temperature: 0 °C...80 °C.
The listed operating limits and performance values provide the basis for sizing and application selection. Values are presented in the units associated with the product data.
Product weight: 750 g; LABS / PWIS conformity: VDMA24364 zone III.
Material, environmental and compliance characteristics help determine suitability for the intended machine environment and installation conditions.
DFST-32-20-D-Y4-A-G2 can be integrated into automated handling, positioning, machine building and pneumatic motion systems. The most important selection points are the physical size, operating mode, connection arrangement, environmental limits and any sensing or mounting requirements listed for the product.
| Specification | Value |
|---|---|
| Function | Roller version |
| Operating pressure | 145 psi |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Position sensing | Via proximity switch |
| Cushioning | Elastic cushioning rings/plates at both ends, Shock absorber, adjustable, at front |
| Mounting position | Vertical |
| Type of mounting | Switching |
| Product weight | 750 g |
| LABS / PWIS conformity | VDMA24364 zone III |
| Mode of operation | Double-acting |
| Pneumatic connection | G1/8 |
| Ambient temperature | 0 °C...80 °C |
| Specification | Value |
|---|---|
| Function | Roller version |
| Operating pressure | 145 psi |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Position sensing | Via proximity switch |
| Cushioning | Elastic cushioning rings/plates at both ends, Shock absorber, adjustable, at front |
| Mounting position | Vertical |
| Type of mounting | Switching |
| Product weight | 750 g |
| LABS / PWIS conformity | VDMA24364 zone III |
| Mode of operation | Double-acting |
| Pneumatic connection | G1/8 |
| Ambient temperature | 0 °C...80 °C |
