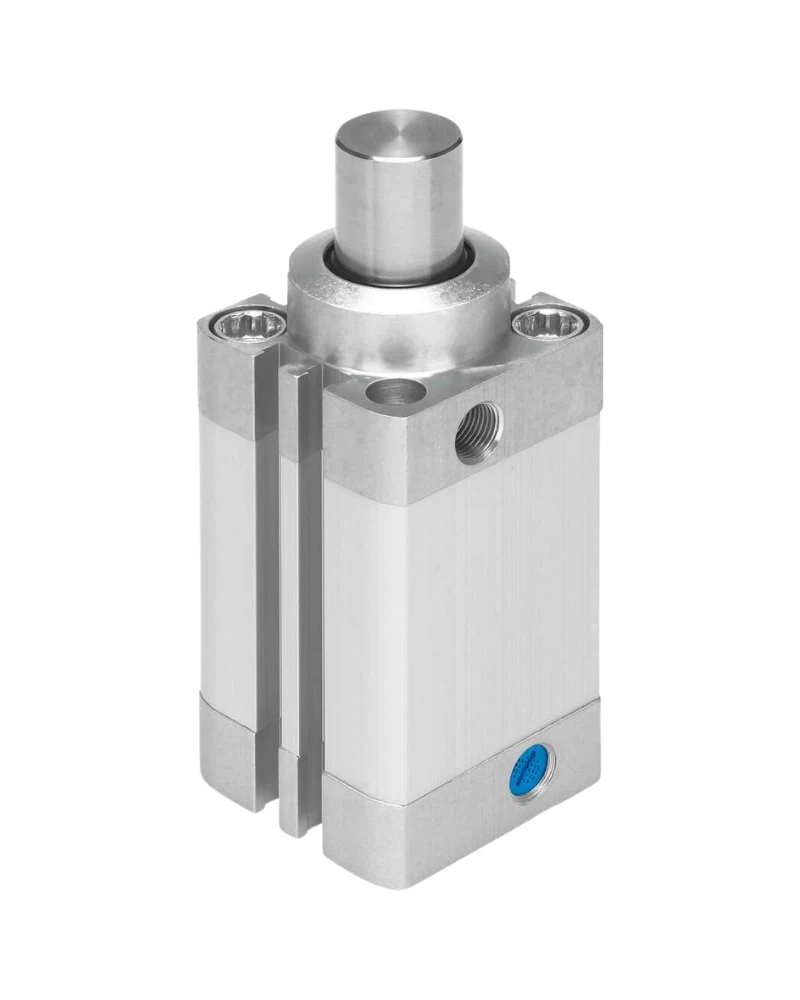

Festo DFSP-32-25-PS-PA is a pneumatic cylinder developed for compact, repeatable operation in automated equipment. Its configuration combines the dimensional, operating and connection characteristics listed for this model, allowing the component to be selected around the available installation space and required machine function.
Piston diameter: 32 mm; Stroke: 25 mm.
The dimensional and construction details above define the physical format of DFSP-32-25-PS-PA and help distinguish this configuration from other sizes, strokes or mechanical variants.
Operating pressure: 0.6 MPa; Position sensing: Via proximity switch; Cushioning: Elastic cushioning rings/plates at both ends; Mode of operation: Double-acting; Operating medium: Compressed air, filtered and lubricated or dry as required; Pneumatic connection: G1/8; Mounting position: Any.
These characteristics determine how the component is connected, actuated, sensed and installed within an automation system. Configuration-specific options should be selected together with the complete model designation.
Operating pressure: 0.6 MPa; Ambient temperature: 0 °C...80 °C.
The listed operating limits and performance values provide the basis for sizing and application selection. Values are presented in the units associated with the product data.
LABS / PWIS conformity: VDMA24364-B1/B2-L.
Material, environmental and compliance characteristics help determine suitability for the intended machine environment and installation conditions.
DFSP-32-25-PS-PA can be integrated into automated handling, positioning, machine building and pneumatic motion systems. The most important selection points are the physical size, operating mode, connection arrangement, environmental limits and any sensing or mounting requirements listed for the product.
| Specification | Value |
|---|---|
| Piston diameter | 32 mm |
| Stroke | 25 mm |
| Operating pressure | 0.6 MPa |
| Position sensing | Via proximity switch |
| Cushioning | Elastic cushioning rings/plates at both ends |
| LABS / PWIS conformity | VDMA24364-B1/B2-L |
| Mode of operation | Double-acting |
| Operating medium | Compressed air, filtered and lubricated or dry as required |
| Pneumatic connection | G1/8 |
| Mounting position | Any |
| Ambient temperature | 0 °C...80 °C |
| Specification | Value |
|---|---|
| Piston diameter | 32 mm |
| Stroke | 25 mm |
| Operating pressure | 0.6 MPa |
| Position sensing | Via proximity switch |
| Cushioning | Elastic cushioning rings/plates at both ends |
| LABS / PWIS conformity | VDMA24364-B1/B2-L |
| Mode of operation | Double-acting |
| Operating medium | Compressed air, filtered and lubricated or dry as required |
| Pneumatic connection | G1/8 |
| Mounting position | Any |
| Ambient temperature | 0 °C...80 °C |
