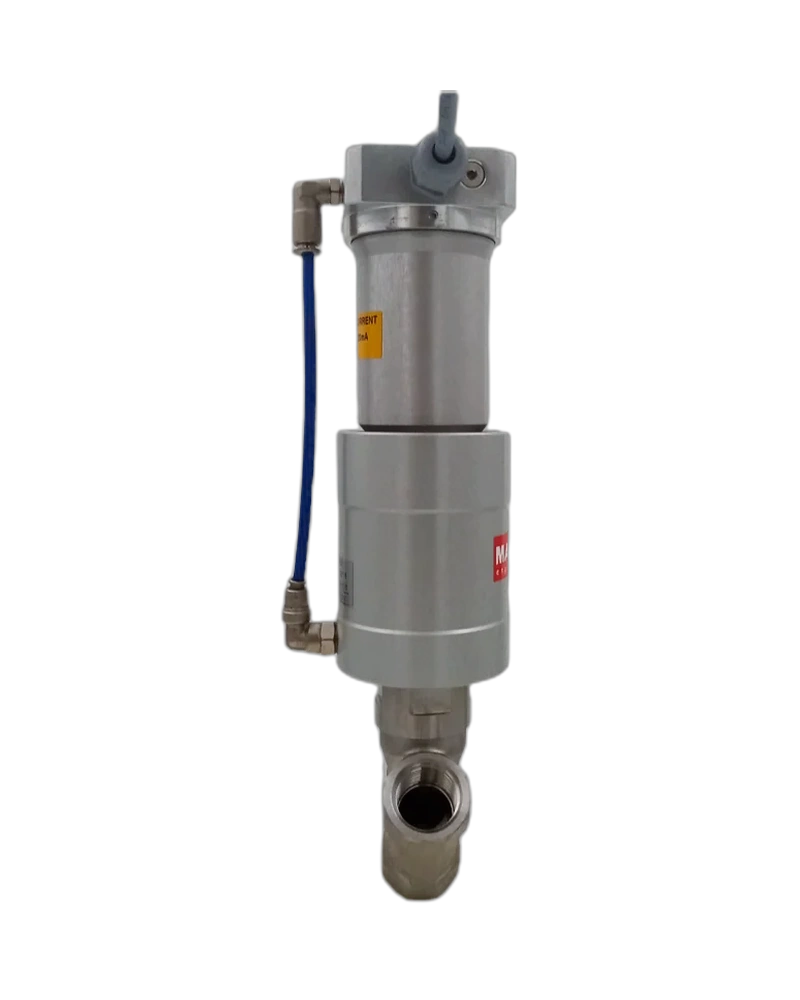

STEAM AND HIGH TEMPERATURE VALVES - MODULATING VALVE SRX/SRT

STEAM AND HIGH TEMPERATURE VALVES - MODULATING VALVE SRX/SRT is a MAROS Engineering solution for industrial automation and fluid or vacuum control. The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: 2-way modulating angle-seat valve with electronic flow control. Size: 1/2"–2" (PN40–PN16). Pipe threads: F/F gas ISO228. Actuator: Normally Closed (NC). Flow mode: bidirectional. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: 2-way modulating angle-seat valve with electronic flow control. Size: 1/2"–2" (PN40–PN16). Pipe threads: F/F gas ISO228. Actuator: Normally Closed (NC). Flow mode: bidirectional. Ambient temperature: 0°/+50°C. Air supply: min. 5.5 bar–max. 8.0 bar. Power supply: 24 VDC ±10%. Maximum power input: 6.25 W. Input signal: 4–20 mA. Output signal: 4–20 mA. Accuracy: 0.2% f.s. Linearity error: 0.2% f.s. Hysteresis: <1%. Protection: IP65. Actuation: linear. Valve body and seal holder: AISI 316 stainless steel or brass. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: AISI 304 stainless steel. Rod wiper: yes. Rod gasket: spring-loaded V-ring seal. Shutter seal: PTFE. Sensor/electronic-board enclosure: aluminium. Maximum fluid temperature: +187°C. Internal springs are designed for high-frequency operation and the cylinder rotates 360°.

Construction and Materials

Type: 2-way modulating angle-seat valve with electronic flow control. Size: 1/2"–2" (PN40–PN16). Pipe threads: F/F gas ISO228. Actuator: Normally Closed (NC). Flow mode: bidirectional. Ambient temperature: 0°/+50°C. Air supply: min. 5.5 bar–max. 8.0 bar. Power supply: 24 VDC ±10%. Maximum power input: 6.25 W. Input signal: 4–20 mA. Output signal: 4–20 mA. Accuracy: 0.2% f.s. Linearity error: 0.2% f.s. Hysteresis: <1%. Protection: IP65. Actuation: linear. Valve body and seal holder: AISI 316 stainless steel or brass. Piston: aluminium. Cylinder: anodized aluminium. Piston rod: AISI 304 stainless steel. Rod wiper: yes. Rod gasket: spring-loaded V-ring seal. Shutter seal: PTFE. Sensor/electronic-board enclosure: aluminium. Maximum fluid temperature: +187°C. Internal springs are designed for high-frequency operation and the cylinder rotates 360°.

Applications

STEAM AND HIGH TEMPERATURE VALVES - MODULATING VALVE SRX/SRT STEAM AND HIGH TEMPERATURE VALVES - MODULATING VALVE SRX/SRT is an for industrial automation and pneumatic fluid or vacuum control. These details are important when matching the valve or actuator to the working medium, pneumatic circuit, vacuum system, temperature range and available installation space. Applications MAROS Engineering pneumatic valves are used across industrial automation applications including automated handling, vacuum gripping and release, palletizing, pneumatic conveying, packaging, food processing, chemical and cosmetic equipment, thermotechnical systems, plastic and rubber processing, thermoforming and other fluid-control installations.

Available Options

• MAROS Engineering SRX/SRT MODULATING family
• This entry represents the named MAROS family configuration
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
