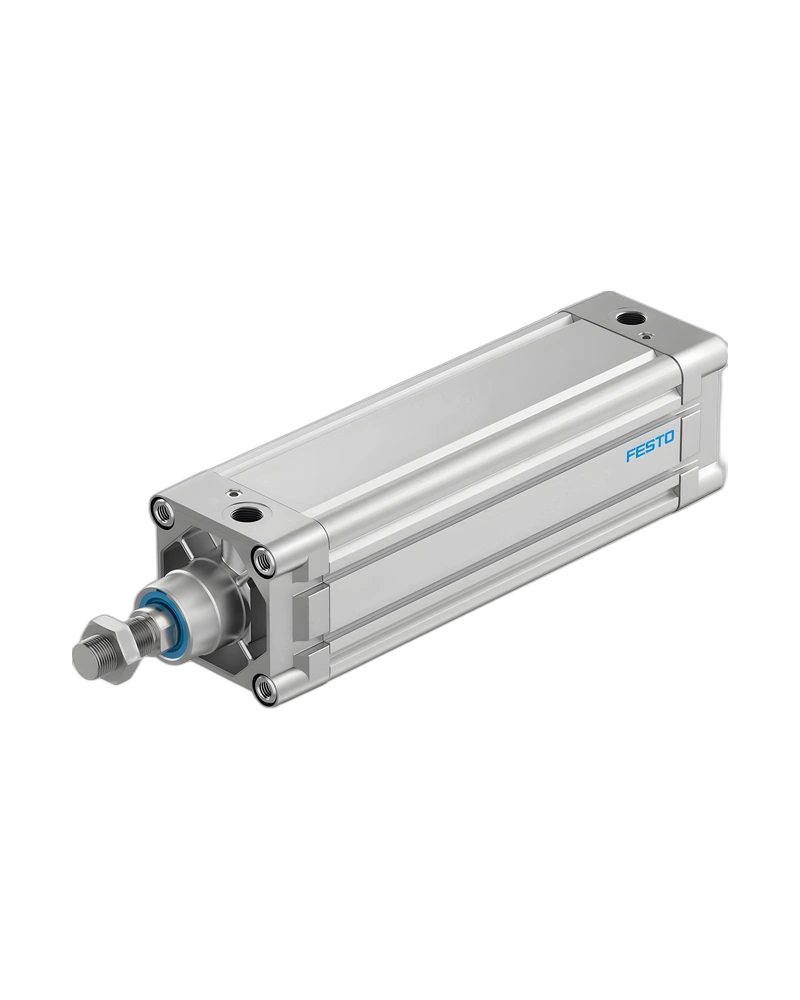

Festo DNC-63-25-PPV is a pneumatic cylinder developed for compact, repeatable operation in automated equipment. Its configuration combines the dimensional, operating and connection characteristics listed for this model, allowing the component to be selected around the available installation space and required machine function.
Piston diameter: 63 mm; Stroke: 25 mm.
The dimensional and construction details above define the physical format of DNC-63-25-PPV and help distinguish this configuration from other sizes, strokes or mechanical variants.
Function: Standards-based cylinders, double-acting, based on ISO 15552; Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Position sensing: Via proximity switch; Pneumatic connection: G1/8; Cushioning: Elastic cushioning rings/pads at both ends; Mounting position: Any; Mode of operation: Double-acting; Operating pressure: 0.1 MPa...1 MPa.
These characteristics determine how the component is connected, actuated, sensed and installed within an automation system. Configuration-specific options should be selected together with the complete model designation.
Operating pressure: 0.1 MPa...1 MPa; Ambient temperature: 0 °C...80 °C.
The listed operating limits and performance values provide the basis for sizing and application selection. Values are presented in the units associated with the product data.
LABS / PWIS conformity: VDMA24364-B1/B2-L; Corrosion resistance class CRC: 2 to Festo standard FN 940070.
Material, environmental and compliance characteristics help determine suitability for the intended machine environment and installation conditions.
DNC-63-25-PPV can be integrated into automated handling, positioning, machine building and pneumatic motion systems. The most important selection points are the physical size, operating mode, connection arrangement, environmental limits and any sensing or mounting requirements listed for the product.
| Specification | Value |
|---|---|
| Piston diameter | 63 mm |
| Stroke | 25 mm |
| Function | Standards-based cylinders, double-acting, based on ISO 15552 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Position sensing | Via proximity switch |
| Pneumatic connection | G1/8 |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| LABS / PWIS conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 to Festo standard FN 940070 |
| Mode of operation | Double-acting |
| Operating pressure | 0.1 MPa...1 MPa |
| Ambient temperature | 0 °C...80 °C |
| Specification | Value |
|---|---|
| Piston diameter | 63 mm |
| Stroke | 25 mm |
| Function | Standards-based cylinders, double-acting, based on ISO 15552 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Position sensing | Via proximity switch |
| Pneumatic connection | G1/8 |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| LABS / PWIS conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 to Festo standard FN 940070 |
| Mode of operation | Double-acting |
| Operating pressure | 0.1 MPa...1 MPa |
| Ambient temperature | 0 °C...80 °C |
