Explore performance details, construction highlights, applications, and technical information in one clear overview.

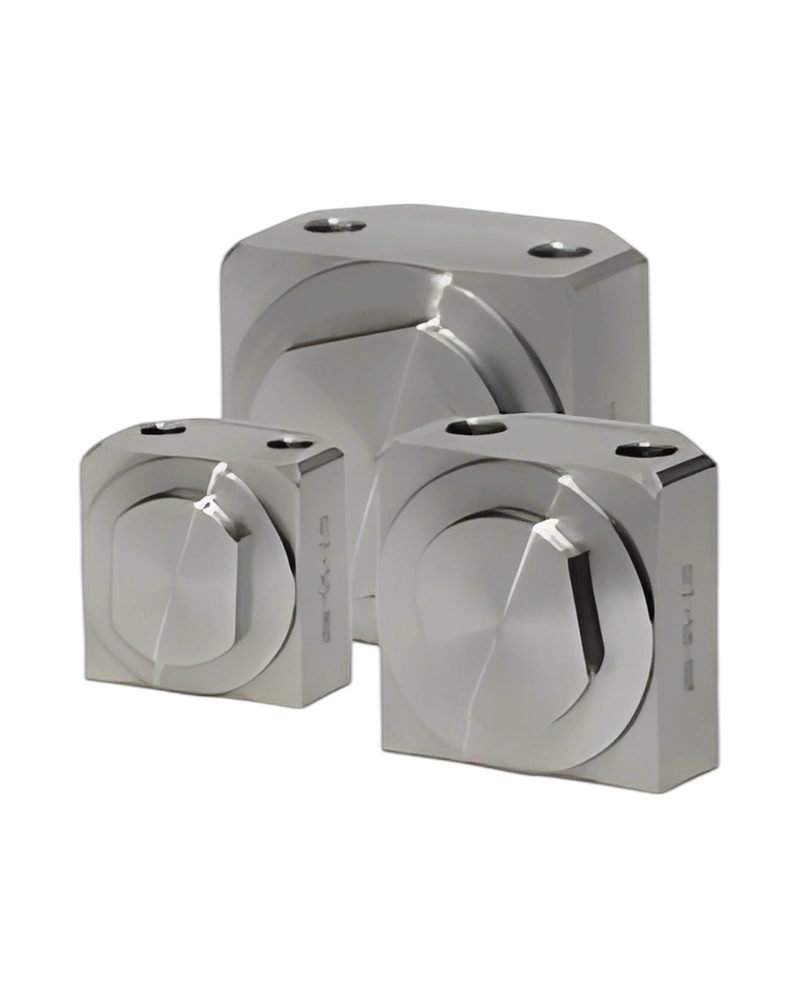

Findeva Stainless Turbine Vibrators GT-16-RF is a stainless-steel pneumatic turbine vibrator from the GTRF range. It is designed for strong, low-noise vibration in applications where stainless construction and lubrication-free operation are important.
The frequency, force and air-consumption figures shown are Findeva published technical data measured under the manufacturer's specified test conditions. Actual vibration on an installed structure depends on the mounting and the mass/stiffness of the equipment.
The GTRF design uses stainless-steel 316Ti (1.4571) for the housing and cap, with a hard-anodized aluminium rotor and imbalance weight. The rotor runs on paired pre-lubricated enclosed ball bearings.
At 2, 4 and 6 bar, the model operates at 20.0, 23.0 and 27.5 ×10³ min⁻¹ and produces 1700, 2500 and 3700 N centrifugal force.
The GTRF series is applicable up to 120°C, with HT versions available on request.
| Brand | Findeva |
|---|---|
| Product family | GTRF Stainless Turbine Vibrator |
| Model | Stainless Turbine Vibrators GT-16-RF |
| Rated frequency @ 2 / 4 / 6 bar | 20.0 / 23.0 / 27.5 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 1700 / 2500 / 3700 N |
| Air consumption @ 2 / 4 / 6 bar | 120 / 200 / 290 l/min |
| Dimensions A / Width / C / D / E | 64 / 45 / 39 / 48 / 36 mm |
| Mounting | M8 |
| Thread | G 1/4" |
| Weight | 1.00 kg |
| Construction material | Stainless steel 316Ti (1.4571) |
Food and pharmaceutical processing, bunker emptying, screening, vibrating tables, preventing adhesion in pipelines and silos, transporting fine powders and moving bulk solids.
The Stainless Turbine Vibrators GT-16-RF is designed for compressed-air operation within the published Findeva operating range. Its model-specific construction and pneumatic characteristics provide controlled vibration or impact for material-flow and process equipment.
| Brand | Findeva |
|---|---|
| Product family | GTRF Stainless Turbine Vibrator |
| Model | Stainless Turbine Vibrators GT-16-RF |
| Rated frequency @ 2 / 4 / 6 bar | 20.0 / 23.0 / 27.5 ×10³ min⁻¹ |
| Centrifugal force @ 2 / 4 / 6 bar | 1700 / 2500 / 3700 N |
| Air consumption @ 2 / 4 / 6 bar | 120 / 200 / 290 l/min |
| Dimensions A / Width / C / D / E | 64 / 45 / 39 / 48 / 36 mm |
| Mounting | M8 |
| Thread | G 1/4" |
| Weight | 1.00 kg |
| Construction material | Stainless steel 316Ti (1.4571) |
