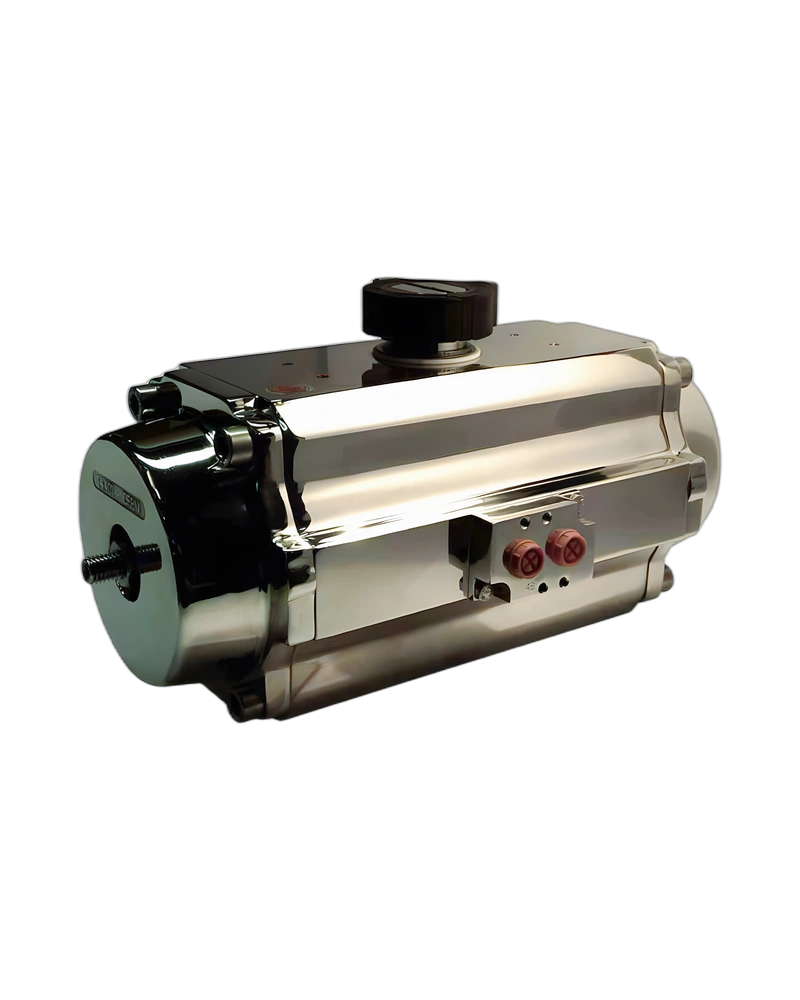

The ALPHAIR AP125-A is part of the AP-A Series range of pneumatic rack-and-pinion actuators. It is designed for rotary valve actuation and features internal adjustment system acting on pistons and covers to avoid side-loads on pistons, shaft and body. The actuator provides 90° movement.
Internal adjustment system acting on pistons and covers to avoid side-loads on pistons, shaft and body. It can be coupled with ISO 5211 compliant valves and also with valves that do not follow the standard. The lower mounting arrangement supports valve fastening and centering according to ISO 5211 / DIN 3337.
Dry or lubricated filtered compressed air; pressure minimum 1 bar, maximum 8 bar / 120 PSI. Rotation adjustment is +/- 5°. Factory-applied lubrication for a minimum of 1,000,000 operations.
The body is made from forged stainless steel a182 f316 / en 10088-3 / 1.4401. The covers use forged stainless steel a182 f316 / en 10088-3 / 1.4401, while the pistons use casted aluminium alloy astm b179, anodized; micro-casted stainless steel a182 f316 available on request. The shaft is forged stainless steel aisi 316 (a4). Seal options include nitrile rubber nbr; high-temperature fpm/fkm and low-temperature silicone available on request.
Low-friction LAT-LUB acetalic resin bearings with +20% PTFE; replaceable for maintenance. Solenoid connections follow NAMUR VDI/VDE-3845, with top mounting provisions for accessories. The standard temperature range is -20°C to +80°C. 100% seal testing and running testing with electronic equipment; each actuator is individually tested.
AP125-A has a double-acting torque at 6 bar of 361.1 Nm and an A-90° dimension of 359 mm.
| Feature | Specification |
|---|---|
| Brand | ALPHAIR |
| Series | AP-A Series |
| Model | AP125-A |
| Actuation | Pneumatic rack-and-pinion actuator |
| A-90° Dimension | 359 mm |
| Double-acting torque at 6 bar | 361.1 Nm |
| Adjustment | Internal adjustment system acting on pistons and covers to avoid side-loads on pistons, shaft and body |
| Movement | 90° movement |
| Air Supply | Dry or lubricated filtered compressed air; pressure minimum 1 bar, maximum 8 bar / 120 PSI |
| Rotation Adjustment | +/- 5° adjustment range |
| Valve Mounting | Double lower drilling for valve fastening and centering according to ISO 5211 / DIN 3337 |
| Solenoid Connection | Solenoid connections according to NAMUR VDI/VDE-3845 |
| Temperature | Standard execution from -20°C to +80°C |
| Bearings | Low-friction LAT-LUB acetalic resin bearings with +20% PTFE; replaceable for maintenance |
| Lubrication | Factory-applied lubrication for a minimum of 1,000,000 operations |
| Testing | 100% seal testing and running testing with electronic equipment; each actuator is individually tested |
| Body | Forged stainless steel A182 F316 / EN 10088-3 / 1.4401 |
| Covers | Forged stainless steel A182 F316 / EN 10088-3 / 1.4401 |
| Pistons | Casted aluminium alloy ASTM B179, anodized; micro-casted stainless steel A182 F316 available on request |
| Shaft | Forged stainless steel AISI 316 (A4) |
| Seals | Nitrile rubber NBR; high-temperature FPM/FKM and low-temperature silicone available on request |
| Feature | Specification |
|---|---|
| Brand | ALPHAIR |
| Series | AP-A Series |
| Model | AP125-A |
| Actuation | Pneumatic rack-and-pinion actuator |
| A-90° Dimension | 359 mm |
| Double-acting torque at 6 bar | 361.1 Nm |
| Adjustment | Internal adjustment system acting on pistons and covers to avoid side-loads on pistons, shaft and body |
| Movement | 90° movement |
| Air Supply | Dry or lubricated filtered compressed air; pressure minimum 1 bar, maximum 8 bar / 120 PSI |
| Rotation Adjustment | +/- 5° adjustment range |
| Valve Mounting | Double lower drilling for valve fastening and centering according to ISO 5211 / DIN 3337 |
| Solenoid Connection | Solenoid connections according to NAMUR VDI/VDE-3845 |
| Temperature | Standard execution from -20°C to +80°C |
| Bearings | Low-friction LAT-LUB acetalic resin bearings with +20% PTFE; replaceable for maintenance |
| Lubrication | Factory-applied lubrication for a minimum of 1,000,000 operations |
| Testing | 100% seal testing and running testing with electronic equipment; each actuator is individually tested |
| Body | Forged stainless steel A182 F316 / EN 10088-3 / 1.4401 |
| Covers | Forged stainless steel A182 F316 / EN 10088-3 / 1.4401 |
| Pistons | Casted aluminium alloy ASTM B179, anodized; micro-casted stainless steel A182 F316 available on request |
| Shaft | Forged stainless steel AISI 316 (A4) |
| Seals | Nitrile rubber NBR; high-temperature FPM/FKM and low-temperature silicone available on request |
