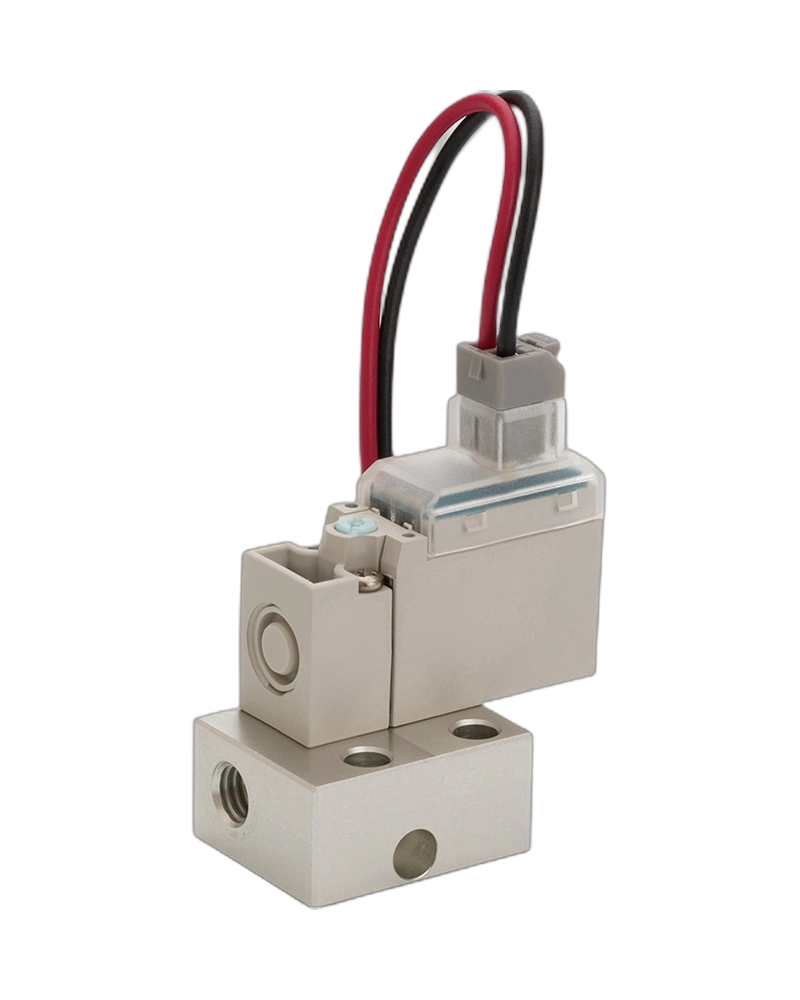

The Solenoid Valve SVB Small Direct Acting 3-way Valve is a standard solenoid valve designed for reliable, basic performance with excellent cost efficiency. It provides precise control of air flow in pneumatic systems, making it ideal for applications requiring simple on/off or directional switching of compressed air. Its direct-acting design ensures fast response and minimal lag, enabling efficient automation in industrial processes.
The valve features a robust construction with a body made from materials suitable for general industrial use. The body is available in two colors: silver and light gray. Light gray is specifically available for the 10 series models. This color selection allows users to match the valve to their environment, enhancing both aesthetics and operational safety depending on application conditions.
The SVB Small Direct Acting 3-way Valve offers flexible connection options with individual connectors. Installation can be configured using either top lead-out or side lead-out configurations, depending on the available space and system layout. This adaptability ensures compatibility across a range of industrial setups and mounting environments.
The valve operates within an allowable voltage range of 21.6 to 26.4 VDC for 24 VDC systems, or 90 to 110 VAC for 100 VAC, 99 to 121 VAC for 110 VAC, 180 to 220 VAC for 200 VAC, and 198 to 242 VAC for 220 VAC. It is designed for use with air as the fluid medium and operates within a pressure range of 0.2 to 0.7 MPa (SVB10S, D) or 0.3 to 0.7 MPa (SVB10A, R, P), depending on model variant. The maximum pressure resistance is 1.05 MPa, ensuring durability under operational stress.
The valve offers multiple port configurations and sizes. It is available in both 5-port and 3-port variants, with the 5-port version (SVB15S, D, A, R, P and SVB18S, D, A, R, P) providing greater flexibility for complex pneumatic circuits. The port thread size options include M5x0.8, M5x0.8 (*2), Rc1/8 (*2), and 1(P)
| Specification | Details |
|---|---|
| Allowable voltage range | 21.6 to 26.4 VDC (For 24 VDC), 90 to 110 VAC
