Explore performance details, construction highlights, applications, and technical information in one clear overview.

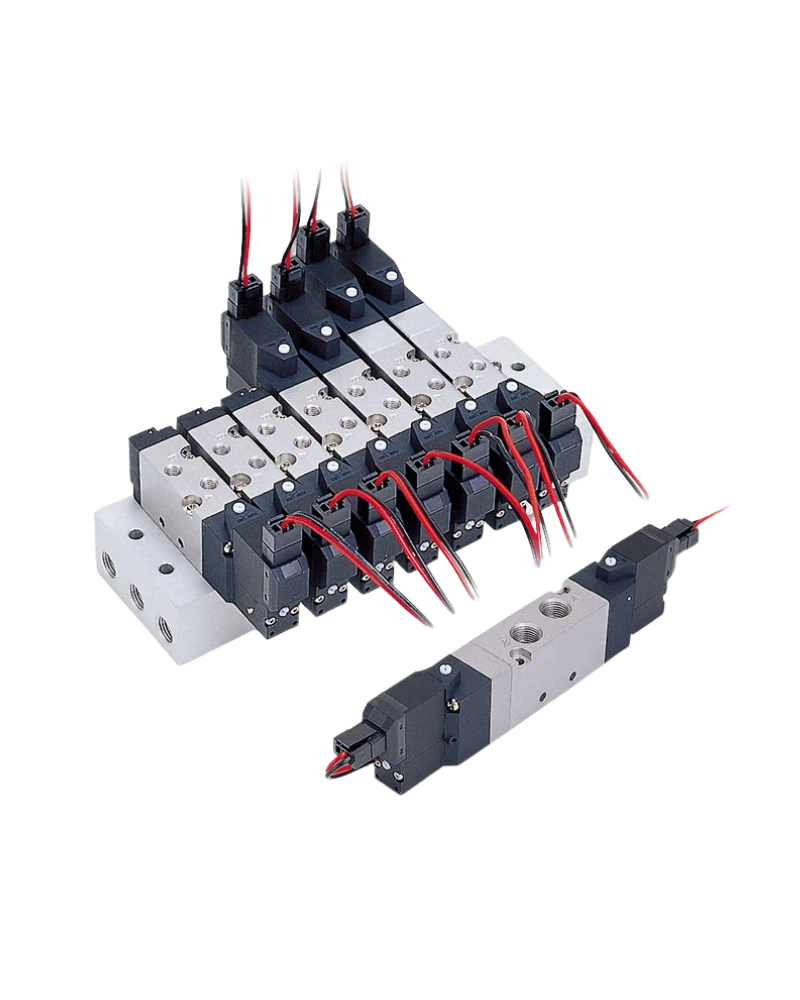

The Solenoid Valve SVB is a standard solenoid valve designed for reliable, basic performance with excellent cost efficiency. It provides precise control of air flow in industrial pneumatic systems, making it ideal for applications requiring simple on/off operation without complex features or high costs.
The valve body is constructed from durable materials suitable for continuous operation and environmental exposure. The body is available in two colors: silver and light gray. Light gray is the only option available for the 10 series models, allowing users to select a color based on their specific application environment.
The SVB offers flexible connection options with individual connectors. Installation can be configured either with top lead-out or side lead-out, depending on the space constraints and layout of the system, ensuring compatibility across various installation environments.
The valve operates within a specified voltage range: 21.6 to 26.4 VDC for 24 VDC systems, and 90 to 110 VAC for 100 VAC, 99 to 121 VAC for 110 VAC, 180 to 220 VAC for 200 VAC, or 198 to 242 VAC for 220 VAC. It is designed for use with air as the fluid medium and operates within a pressure range of 0.2 to 0.7 MPa (SVB10S, D) or 0.3 to 0.7 MPa (SVB10A, R, P), depending on the model variant. The maximum pressure resistance is 1.05 MPa, and it functions within an operating temperature range of 5 to 50℃.
The SVB series offers multiple port configurations: a 5-port design is standard for most models (SVB10S, D, A, R, P; SVB15S, D, A, R, P; SVB18S, D, A, R, P), while certain variants such as the SVB15J, L, M, N, Y, Z and SVB18J, L, M, N, Y, Z offer a 3-port configuration. Port thread sizes include M5x0.8, M5x0.8 (*2), Rc1/8 (*2), and combinations such as 1(P)
| Specification | Details |
|---|---|
| Allowable voltage range | 21.6 to 26.4 VDC (For 24 VDC), 90 to 110 VAC
