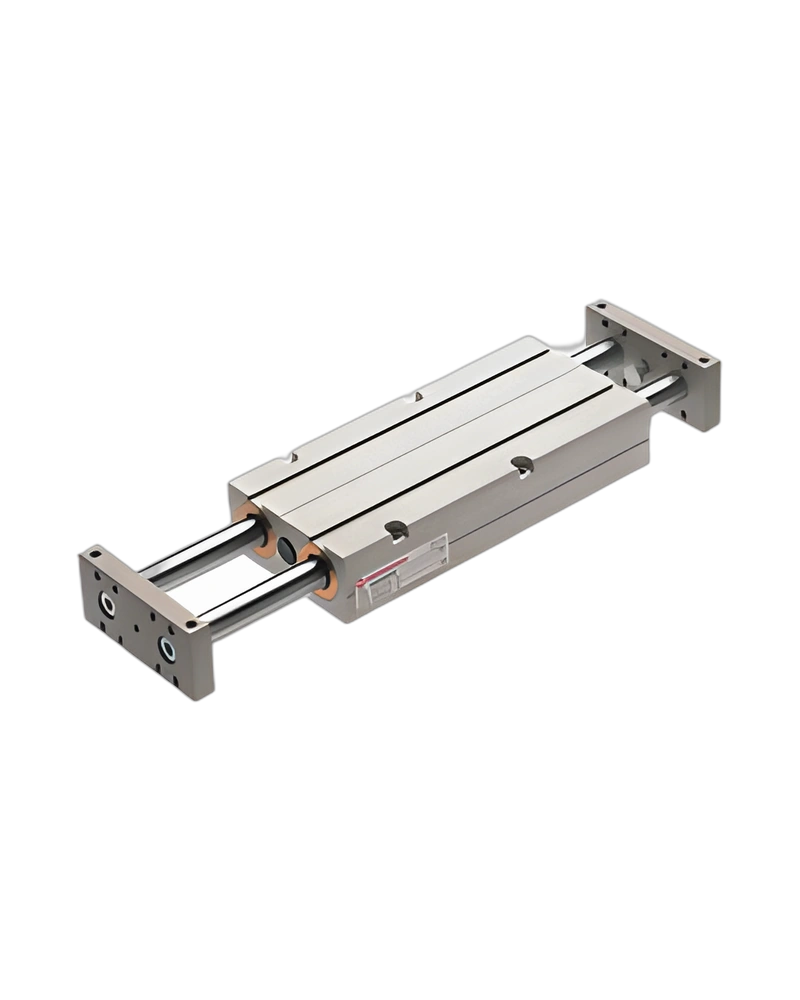

M-60140-M-175 is a NORGREN Slide unit, double acting, 40mm diameter, 175mm stroke - M/60140/M/175 configuration. The product entry brings together the stated connection, drainage, filtration and other technical characteristics for this exact listed model, so the content remains focused on the selected configuration.
The core configuration is defined by Cushioning: Buffer cushioning; Theoretical Force (6 bar): 918 N; Country of Origin: Germany; Range: M/60100/M; Gauge: ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D '; Gauge: P R F J K V U T; Model: 60140. These values identify the product configuration and distinguish the listed arrangement from other configurations in the same range.
The available operating data specifies Media: Compressed air; Port Size: 1/8" ISO G; Operating Temperature: -5 ... 80 °C, 23 ... 176 °F; Operating Pressure: 1 ... 8 bar, 15 ... 116 psi; Port Size: G1/4; Port Size: G1/2. Where pressure, temperature, flow, media, adjustment or drain information is provided, these values are included directly so the description remains aligned with the listed configuration.
The construction data records Materials - Barrel: Anodized aluminum; Materials - Piston Head Seals: Polyurethane (PU); Materials - Piston Rod: Hard chrome plated steel; Materials: cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length /; Materials: cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo); Materials: cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5; Materials: cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250; Materials: Scale. These material details describe the components and material entries associated with the listed product rather than making broader durability or compatibility claims.
Physical and additional catalogue information includes Stroke Length: 175 mm. This information can be used alongside the configuration and operating values when selecting the listed model.
Languages 0 Basket Products Industries
| Specification | Value |
|---|---|
| Media | Compressed air |
| Port Size | 1/8" ISO G |
| Stroke Length | 175 mm |
| Operating Temperature | -5 ... 80 °C, 23 ... 176 °F |
| Operating Pressure | 1 ... 8 bar, 15 ... 116 psi |
| Cushioning | Buffer cushioning |
| Theoretical Force (6 bar) | 918 N |
| Materials - Barrel | Anodized aluminum |
| Materials - Piston Head Seals | Polyurethane (PU) |
| Materials - Piston Rod | Hard chrome plated steel |
| Country of Origin | Germany |
| Range | M/60100/M |
| Materials | cable Characteristics M/50/LSU/5V ● 5 m -20 to +80 °C PVC - M/50/LSU/CP ● 0,3 m with plug M8 -20 to +80 °C PVC - M/50/LSU/5U ● 5 m -20 to +80 °C PUR cable very flexible Model LED (Am- arelo) Cable length / |
| Materials | cable Ex identification M/50/EAP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/EAP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Am- arelo) |
| Materials | cable Ex identification M/50/IOP/5V ● 5 m PNP -20 to +80 °C PVC - M/50/IOP/CP ● 0,3 m with plug M8 PNP -20 to +80 °C PVC - Model LED (Yellow) Cable length / plug - - - M/P73001/5 M/P73001/10 M/P73002/5 |
| Materials | cable Characteristics QM/32/2 ● 2 m -20 … +80°C PVC - QM/32/P ● M12 Plug -20 … +80°C - - Model Diameter Atuador QM/31/032/22 Ø32 … 63 QM/31/080/22 Ø80 … 125 QM/31/160/22 Ø160 and 200 QM/31/250/22 Ø250 |
| Gauge | ' B ' VA CUUM PORT (2X) AUXILIARY PORTS P R S 3X Ø ' D ' |
| Gauge | P R F J K V U T |
| Materials | Scale |
| Model | 60140 |
| Port Size | G1/4 |
| Port Size | G1/2 |
