The APEM Slide Switches GN36S010011 is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 1,000 Vrms 50 Hz min. Electrical life with resistive load:- silver contacts (codes 1 or 2): 2 positions: 40,000 cycles 3 positions: 20,000 cycles- gold plated brass contacts (code 0): 60,000 cycles (0,4VA max.) Elec; Initial contact resistance: 10 mΩ; Insulation resistance: 1,000 MΩ min..

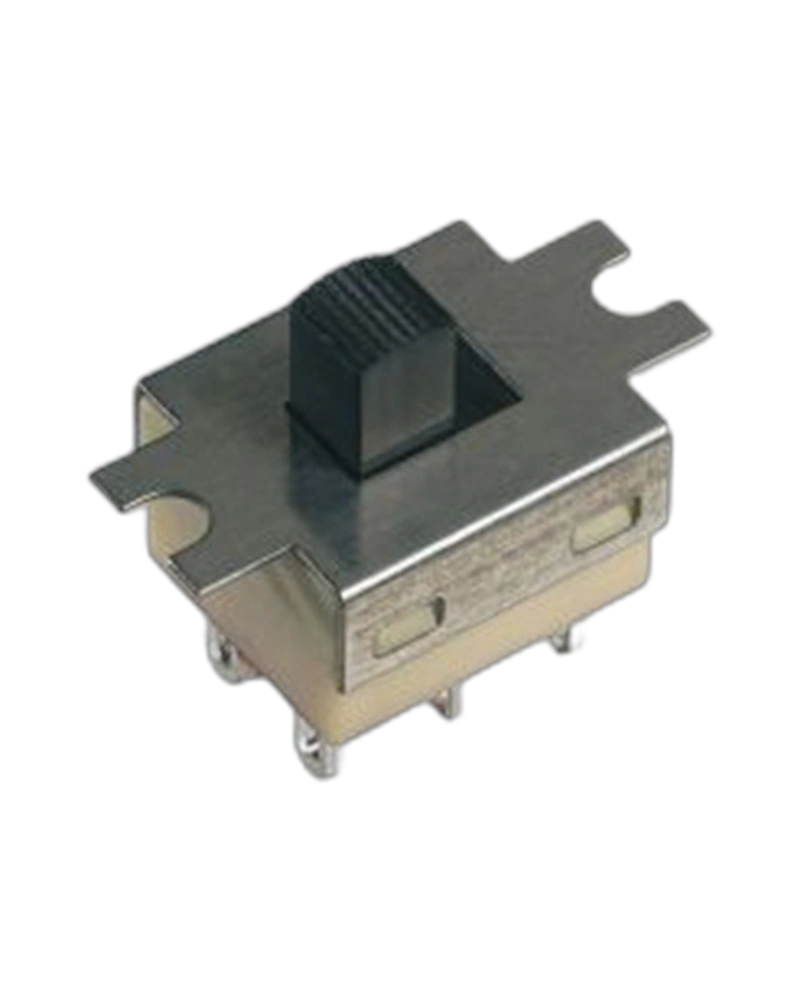

GN36S010011 Miniature telecom-grade slide switch, model GN36S010011, designed for compact applications. Select Quantity
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life with resistive load :- silver contacts (codes 1 or 2) : 2 positions : 40,000 cycles 3 positions : 20,000 cycles- gold plated brass contacts (code 0) : 60,000 cycles (0,4VA max.) Elec |
| Operating temperature | -30 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (codes 1 or 2) : 3 A 30 VDC- gold plated brass contacts (code 0) : 0,4 VA 20 VAC or DC max. |
