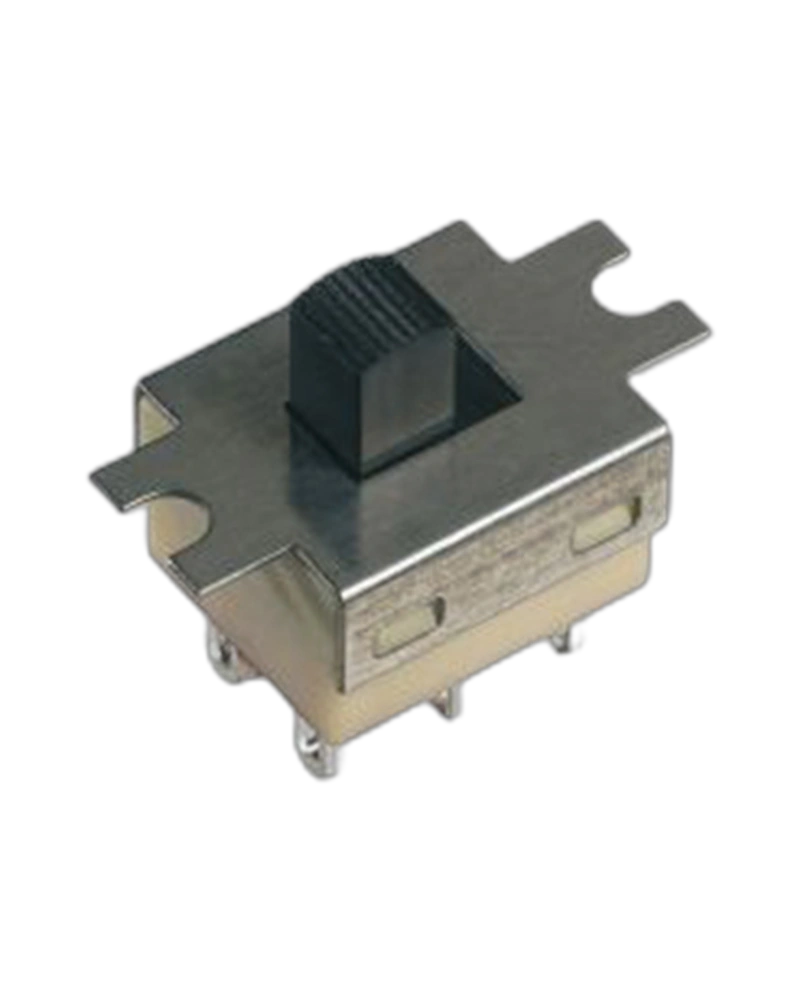

GL49Y021100 Miniature telecom-grade slide switch GL49Y021100, designed for compact applications with reliable performance.

Interested in this product? Slide Switches GL49Y021100

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

GL49Y021100 Miniature telecom-grade slide switch GL49Y021100, designed for compact applications with reliable performance. Select Quantity

Dielectric strength: 1,000 Vrms 50 Hz min. Electrical life with resistive load :- silver contacts (codes 1 or 2) : 2 positions : 40,000 cycles 3 positions : 20,000 cycles- gold plated brass contacts (code 0) : 60,000 cycles (0,4VA max.) Elec
Initial contact resistance: 10 mΩ
Insulation resistance: 1,000 MΩ min.
Operating temperature: -30 °C to +85 °C
Actuator: polyamide, glass filled Cover : stainless steel Contacts0 : brass, gold plated1 : silver2 : silver, gold plated5 : special contact, lower rating, minimum quantity : consult factory Terminal seal : epoxy Cover : stainless
Max. current/voltage rating with resistive load: - silver contacts (codes 1 or 2) : 3 A 30 VDC- gold plated brass contacts (code 0) : 0,4 VA 20 VAC or DC max.
Case: PES

Feature	Specification
Dielectric strength	1,000 Vrms 50 Hz min. Electrical life with resistive load :- silver contacts (codes 1 or 2) : 2 positions : 40,000 cycles 3 positions : 20,000 cycles- gold plated brass contacts (code 0) : 60,000 cycles (0,4VA max.) Elec
Operating temperature	-30 °C to +85 °C
Max. current/voltage rating with resistive load	- silver contacts (codes 1 or 2) : 3 A 30 VDC- gold plated brass contacts (code 0) : 0,4 VA 20 VAC or DC max.
