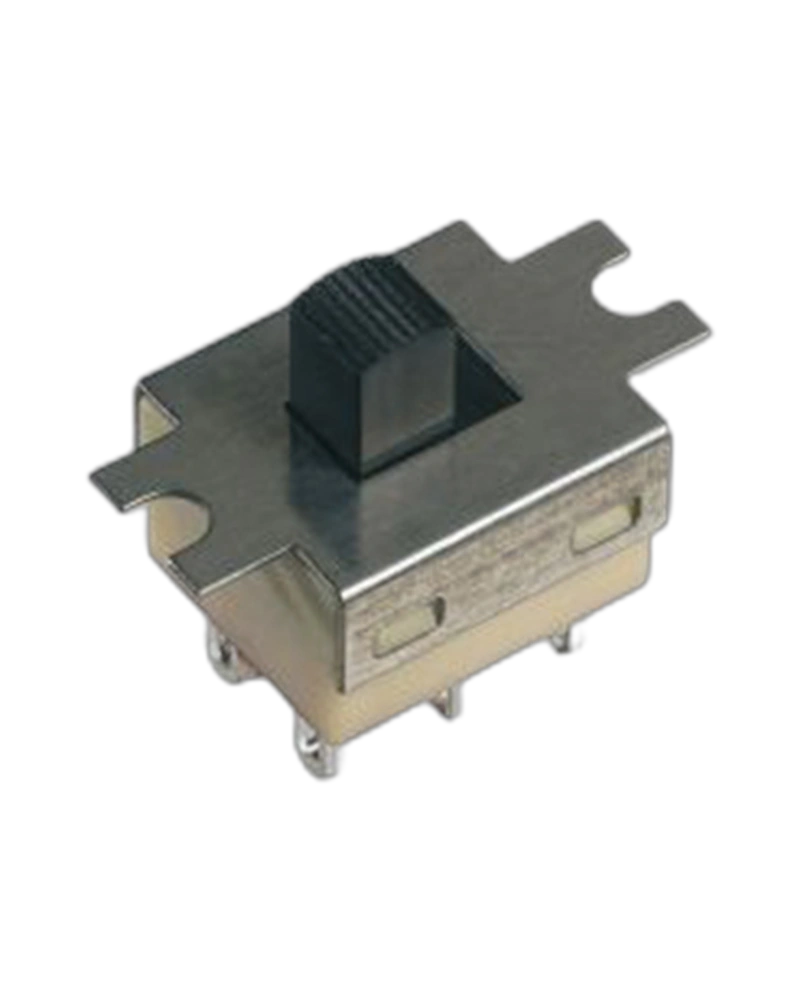

GB39Y021000 Miniature telecom-grade slide switches, model GB39Y021000, designed for compact applications and reliable performance. Select Quantity
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life with resistive load :- silver contacts (codes 1 or 2) : 2 positions : 40,000 cycles 3 positions : 20,000 cycles- gold plated brass contacts (code 0) : 60,000 cycles (0,4VA max.) Elec |
| Electrical functions | ON OFF ON Series: G Actuators: 7.65 mm (.301) Special options 1: Switch without ground plate Special options 2: No epoxy seal |
| Operating temperature | -30 °C to +85 °C |
| Max. current/voltage rating with resistive load | - silver contacts (codes 1 or 2) : 3 A 30 VDC- gold plated brass contacts (code 0) : 0,4 VA 20 VAC or DC max. |
