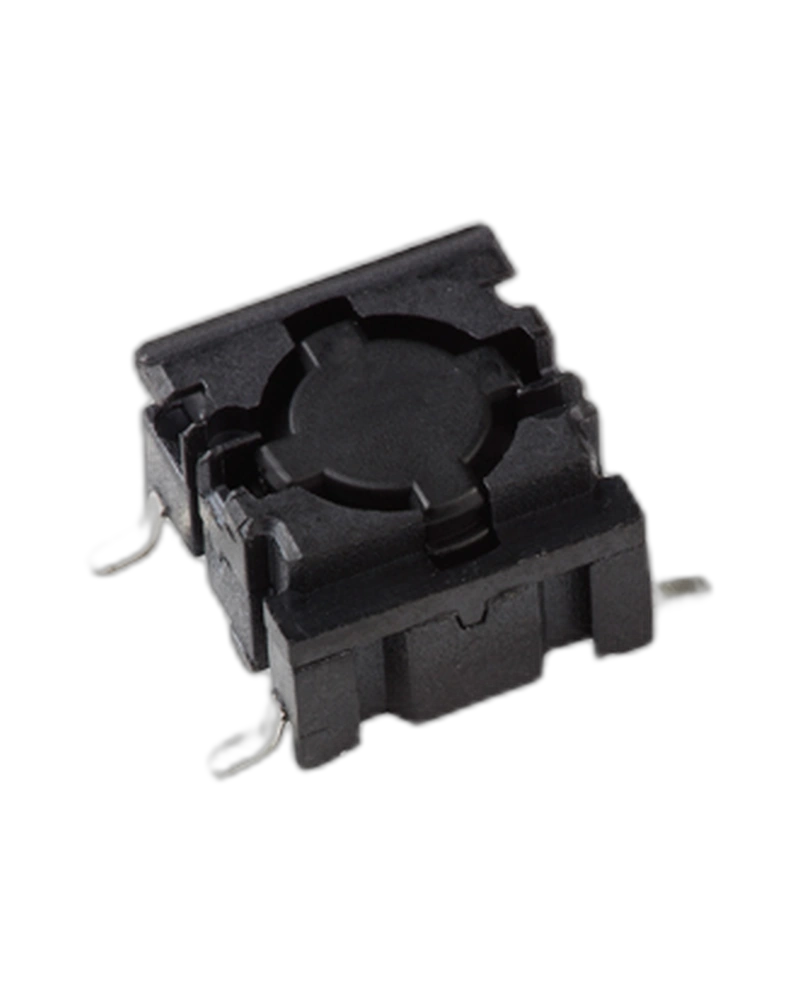

Slide Switches 5GTH9208222
The APEM Slide Switches 5GTH9208222 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: >10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Conta; Mounting: Through-hole,LED:Red/Green; Storage temperature: -40/+160°C.
Product Overview
5GTH9208222 Select Quantity
Key Features
- Insulation resistance: >10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Conta
- h=6.4 mm 10 x 10 mm Momentary NO or NC/NO (NC/NO function is not sold in Japan) IP67 sealing 10,000,000 cycles SMD, TH or through-hole RAS illumination possibility
- 50 mA / 24 VDC
- IP67 sealing
- 10,000,000 operations lifetime (NO function)
- : Large range of accessories Momentary switches with NO or NC/NO function Sealed to IP67 Single or bi-color illumination option Illumination with integrated chip-LEDs
- Mounting: Through-hole,LED:Red/Green
- Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole
- Single pole/momentary
- NO or NC/NO (NC/NO function is not sold in Japan)
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Contact resistance | 10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS |
Environmental Specifications
| Feature | Specification |
|---|
| Storage temperature | -40/+160°C |
Specifications
| Feature | Specification |
|---|
| Sealing | IP67 |
