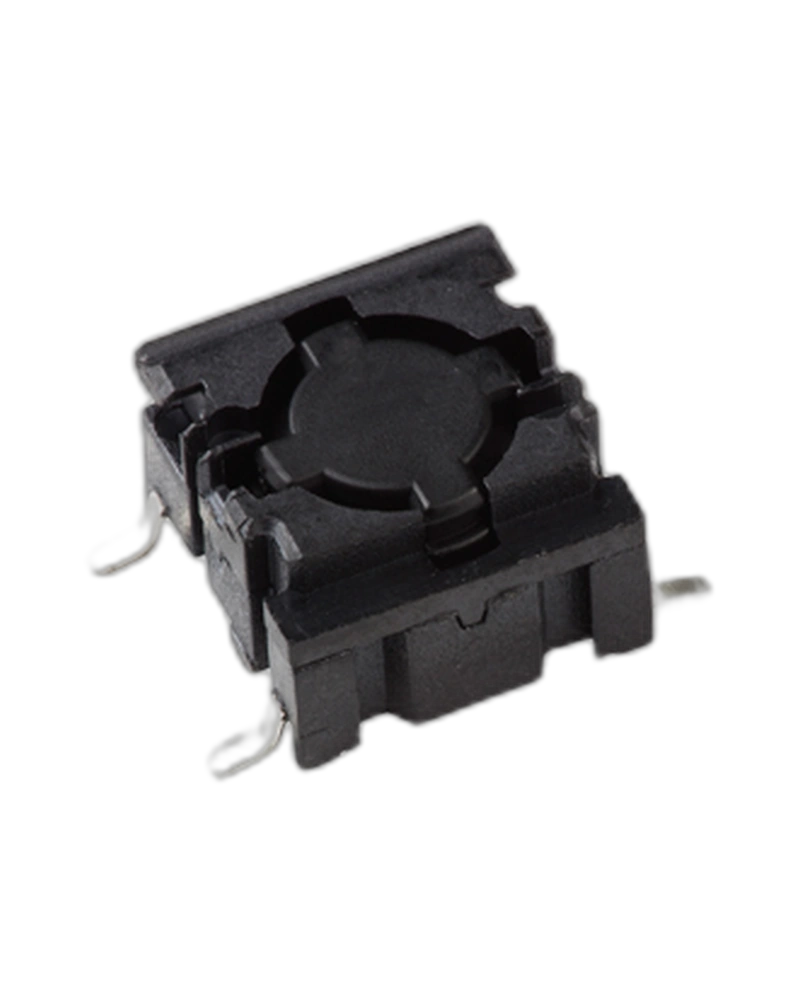

5GSH9358242 The 5GSH9358242 PCB Switch features a 35N actuation force and red/yellow LEDs for visual feedback, ideal for surface mount applications. Select Quantity
| Feature | Specification |
|---|---|
| Contact resistance | 10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS |
| Feature | Specification |
|---|---|
| Storage temperature | -40/+160°C |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Force | 35 N |
| Height | 7mm |
| Feature | Specification |
|---|---|
| Contact resistance | 10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS |
| Feature | Specification |
|---|---|
| Storage temperature | -40/+160°C |
| Feature | Specification |
|---|---|
| options | pad print or hard paint laser etched Panel cut-out: Ø 21.2 mm Standard colors:-solid colors: blue, grey, red, black & signal white-transparent color: frosted white-bottom part: transparent or frosted white Two standard p |
| Mounting | Surface Mount,Cap:10C,Legend:OK,Print Type:Hard Paint Laser Marked,Colour:Black,Color Top:Frosted White,Color Bottom:Frosted White,LED:Red/Yellow |
| Insulation resistance | >10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Conta |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Height | 7mm |
