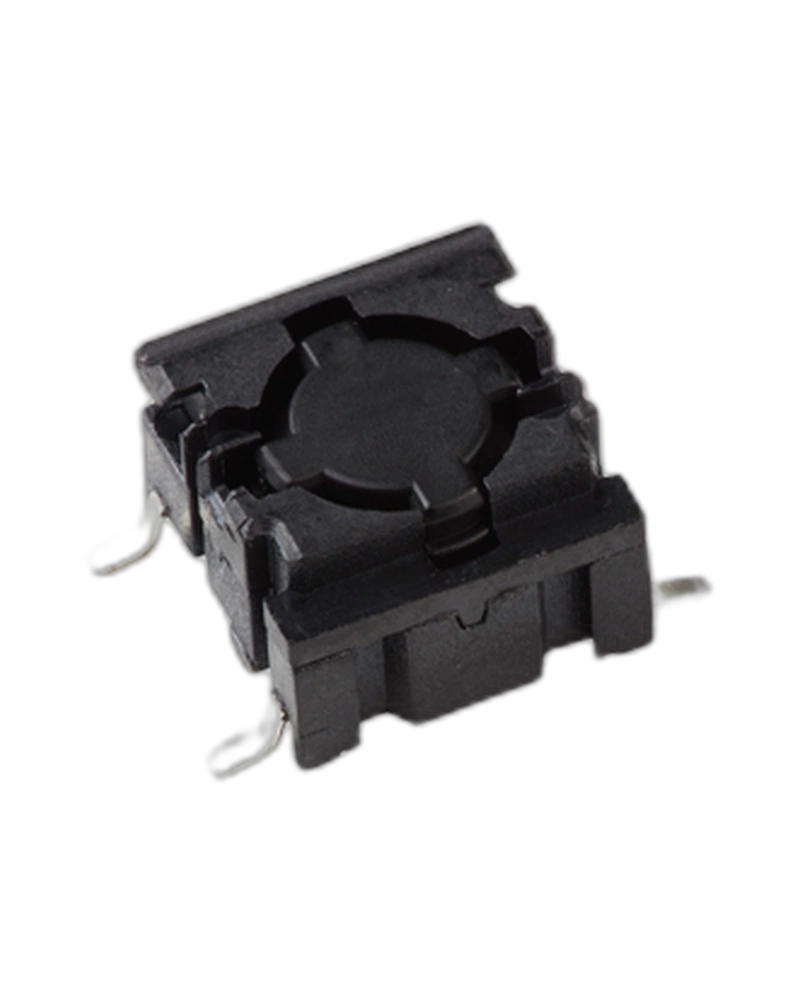

5GSH93582R 5GSH93582R PCB Switch: Versatile surface mount design, 35 N actuation force, and red LED for enhanced visibility and sophistication in electronic devices. Select Quantity
Key Features
- options: pad print or hard paint laser etched Panel cut-out: Ø 21.2 mm Standard colors:-solid colors: blue, grey, red, black & signal white-transparent color: frosted white-bottom part: transparent or frosted white Two standard p
- Mounting: Surface Mount,Cap:10C,Legend:OK,Print Type:Hard Paint Laser Marked,Colour:Black,Color Top:Frosted White,Color Bottom:Frosted White,LED:Red/Yellow
- Insulation resistance: >10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS Conta
- Large range of accessories Momentary switches with NO or NC/NO function Sealed to IP67 Single or bi-color illumination option Illumination with integrated chip-LEDs
- Momentary switches with NO or NC/NO function Sealed to IP67 Single or bi-color illumination option Illumination with integrated chip-LEDs
- Sealed to IP67 Single or bi-color illumination option Illumination with integrated chip-LEDs
- NO or NC/NO
- Single or bi-color illumination option Illumination with integrated chip-LEDs
- Illumination with integrated chip-LEDs
- Large range of accessories
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Contact resistance | 10M Ω Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC Contact bounce: <2mS - typically 0.5mS |
Environmental Specifications
| Feature | Specification |
|---|
| Storage temperature | -40/+160°C |
Specifications
| Feature | Specification |
|---|
| Sealing | IP67 |
| Force | 35 N |
| Temperature | +40°C Humidity: 93% RH Duration: 56 Days TEMPERATURE CYCLING IEC 68-2-14 Temperature limit: -55/+85°C Number of cycles: 200 Exposure time at each temperature: 10 min Recovery time before measurements: 16 hrs Sealing IEC |
| Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| General Specifications Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole 50mA/24VDC Single pole/momentary 10,000,000 operations lifetime (NO function) Temperature range | Switch: -40/+160°C LED: -40/+85°C IP 67 sealing Actuation force: 2.0N, 3.5N, 6.5N NO or NC/NO |
| Height | 7mm |
