Explore performance details, construction highlights, applications, and technical information in one clear overview.

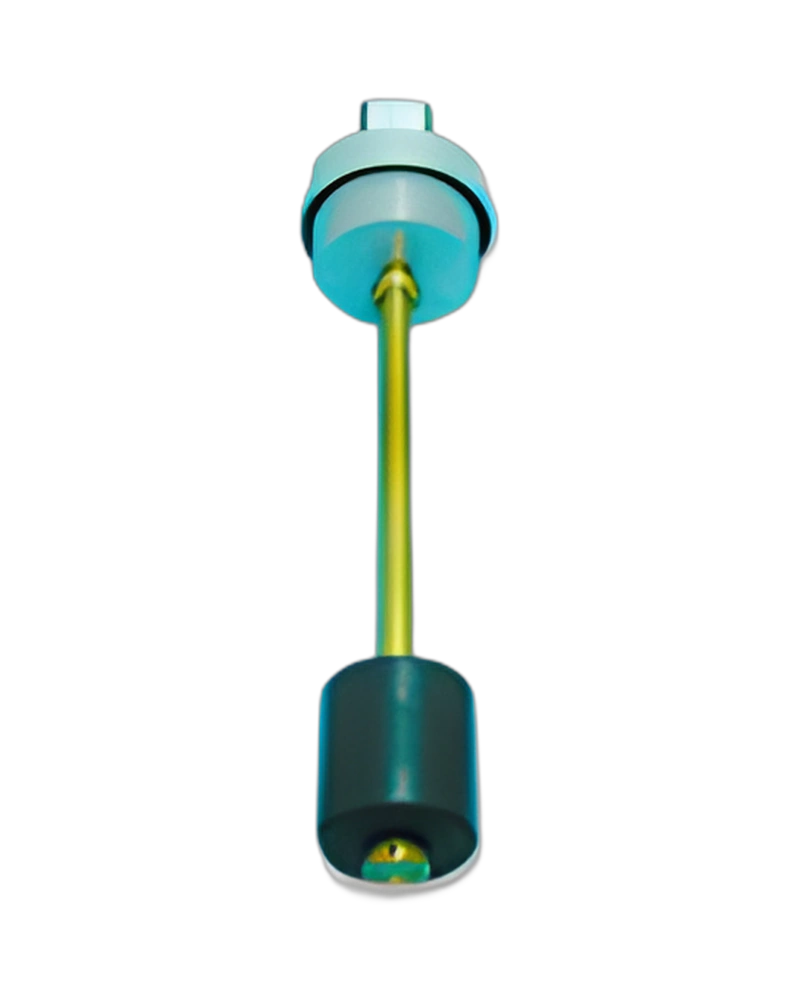

The ELETTROTEC SL1FA300B60 - SL - Level switches - SL - Level switches is a precision level switch designed for industrial applications. This stainless steel construction level switch features a 4-20 mA output, operates within -10°C to +80°C temperature range, and handles up to 10 bar pressure. With a 300 mm length and FIA/TIA mounting options, it ensures reliable fluid level detection in tanks and vessels with specific gravity of 0.8 kg/dm³ and viscosity of 150 cSt.
The ELETTROTEC SL1FA300B60 - SL - Level switches - SL - Level switches is a robust level switch engineered for demanding industrial environments. This model delivers precise fluid level detection with a 4-20 mA output signal, making it ideal for integration into control systems. Constructed from high-grade stainless steel with FKM seals and anodized aluminum mounting, it operates reliably across a wide temperature range (-10°C to +80°C) and withstands pressures up to 10 bar. The SL1FA300B60 - SL - Level switches is specifically designed for use with fluids having a specific gravity of 0.8 kg/dm³ and viscosity of 150 cSt, ensuring accurate performance in critical applications.
The ELETTROTEC SL1FA300B60 level switch is engineered with precise technical parameters to ensure reliable performance. It features a 4-20 mA output signal, operates within a temperature range of -10°C to +80°C, and is rated for up to 10 bar pressure. The switch has a minimum length of 300 mm and is constructed from stainless steel with FKM seals, suitable for fluids with a specific gravity of 0.8 kg/dm³ and viscosity of 150 cSt. Mounting options include FIA (Flange Ø 92) or TIA (Thread G2").
This level switch is ideal for industrial tanks, vessels, and process lines where precise fluid level monitoring is critical. Its design accommodates a wide range of fluids with specific gravity of 0.8 kg/dm³ and viscosity of 150 cSt, making it suitable for applications in chemical processing, oil and gas, and manufacturing environments where consistent level detection is required.
The SL1FA300B60 - SL - Level switches - SL - Level switches is an industrial Level. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Output | 4-20 mA |
| Power supply | 24 Vdc ±10% |
| temperature range | -10°C +80°C |
| Max. pressure | 10 bar |
| Size | Min. length 300 mm – Max. lenght 2500 mm |
| Mounting | FIA – Flange Ø 92 / TIA – Thread G2” |
| Distance | SL1 – 15 mm / SL2 – 10 mm |
| Fluid specific gravity | 0.8 kg/dm 3 |
| length | 300 mm |
| Thread | G2 |
| Seal material | FKM |
| Float material | Stainless steel |
| Mounting material | Anodized aluminium |
