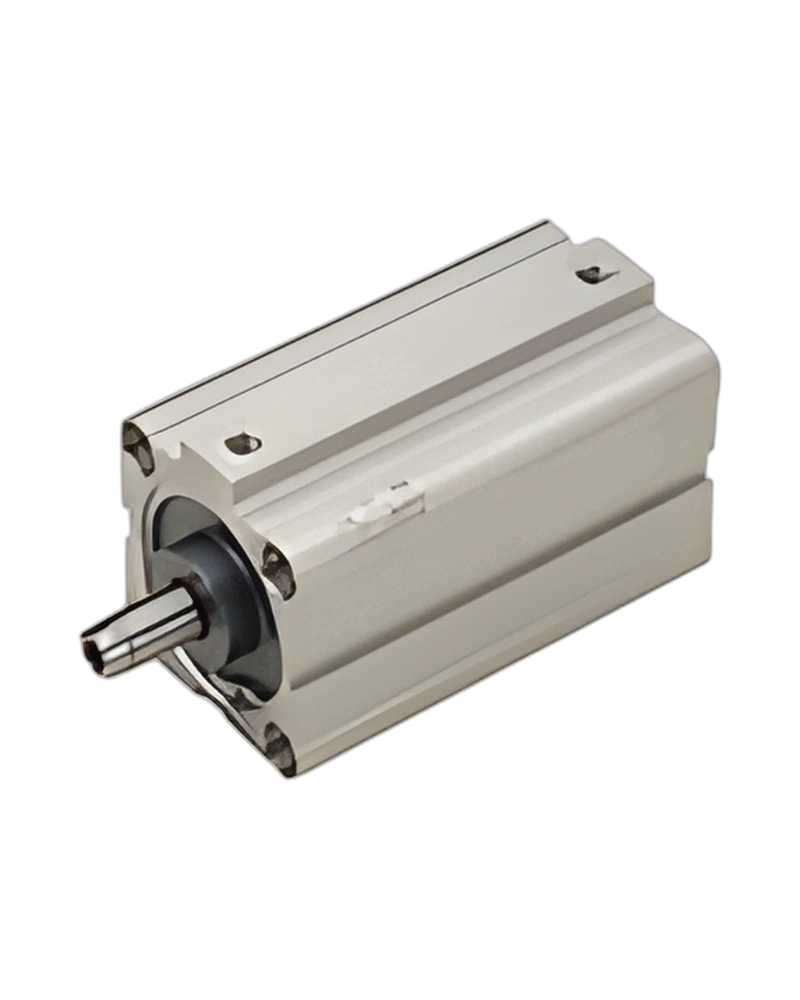

Short Stroke Cylinders Series SSCY is a Metal Work solution developed for pneumatic automation and compressed-air system integration. The family is intended to provide dependable motion, control, connection, flow management or valve functionality according to the selected configuration. Its catalogue structure makes it possible to select the relevant dimensions, interfaces and execution details for the application.
Bores: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 mm Maximum stroke: 165 mm Minimum stroke: 5 mm. The construction and configuration are matched to the product family so that the component can be integrated into compact machines, automated production equipment and industrial pneumatic circuits.
Bores: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 mm Maximum stroke: 165 mm Minimum stroke: 5 mm Double-acting and single-acting executions Anti-rotation and through-rod executions are available Not cushioned Seal options include FKM/FPM, low-temperature, NBR and polyurethane Magnetic, non-magnetic and non-rotating types are available
The available performance depends on the selected configuration, including bore or connection size, execution, sealing arrangement, actuation, flow path and mounting interface. The official Metal Work product/configurator page provides the selectable technical parameters and the associated CAD and documentation resources for this family.
Installation options are designed around the relevant pneumatic interface for the series. Depending on the product, this can include threaded ports, push-in tube connections, manifold or base mounting, sensor integration, actuator mounting or modular valve-bank connections. Accessories and compatible components are available through the corresponding Metal Work catalogue section.
This product family is suited to industrial pneumatic automation where controlled movement, directional control, flow regulation, air preparation, connection, sensing or machine safety is required. The exact application should be matched to the selected configuration and its published operating limits.
The official Metal Work product page provides access to configuration tools, technical information, CAD resources, manuals and applicable declarations or certificates where available. Configuration should be completed against the required bore, stroke, connection, pressure, temperature, sealing, electrical or mounting requirements before ordering.
For correct selection, compare the required operating pressure, temperature, dimensions, connection type, flow or motion requirement, sealing material, actuation method and mounting arrangement with the options available for the specific family. This approach keeps the selected component aligned with the machine design and the published technical limits.
| Feature | Specification |
|---|---|
| Bores | 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 mm |
| Maximum stroke | 165 mm |
| Minimum stroke | 5 mm |
| Double-acting and single-acting | Double-acting and single-acting executions |
| Anti-rotation and through-rod | Anti-rotation and through-rod executions are available |
| Not cushioned | Not cushioned |
| Seals | Seal options include FKM/FPM, low-temperature, NBR and polyurethane |
| Magnetic, non-magnetic and | Magnetic, non-magnetic and non-rotating types are available |
