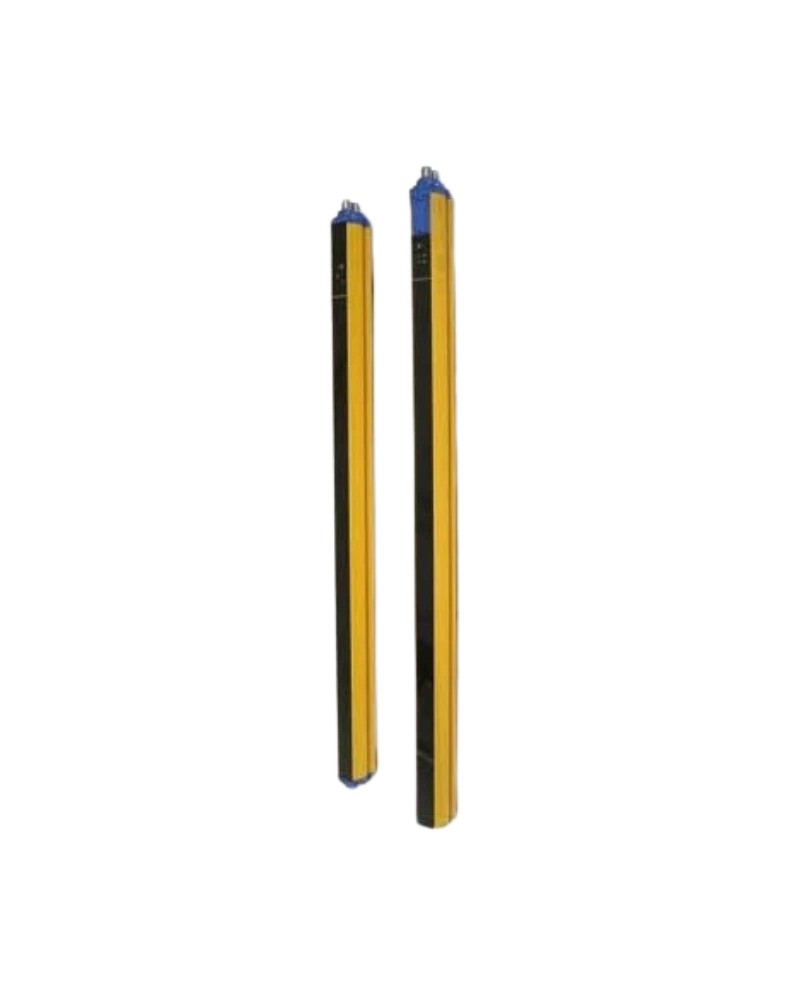

The SG4-S2-050-PP-W - 957851160 - Safety Light Curtain is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The documented configuration includes Resolution: 500mm; Response time: 14 ms; SG BODY COMPACT MUTING safety multiple beam type 4 2 beams h: 500 mm edm man/auto muting; Nominal sensing distance: 0,5 … 50 m; Emission: Infrared LED (880 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 2,2W (no load); Power Consumption - Emitter: ≤ 0,9W.
The documented configuration includes Dimensions: 35x41x662; Material: Painted aluminum / PMMA / PC Lexan 943A; Storage temperature: -25…+ 70°C; Dimensions: 35x41,2x664 mm; Operating Temperature: 0…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Standard "L" Mounting Brackets: 4 pcs kit.
The documented configuration includes controlled height: 500 mm; Humidity: 15 … 95 % (no condensation).
The documented configuration includes Available functions: Manual/Automatic Restart, EDM, L/T Muting, Override; Functions: Body protection 2 beams muting; Long operating distance: up to 50 m; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-4 poles + M12-5 poles (emitter) M12-8 poles + M12-5 poles (receiver); Effective Aperture Angle: ≤ ±2,5°; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Equivalent Resistive Load: ≥ 56Ω; Capacitive Load: ≤ 65nF; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 500mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 14 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 50m |
| Dimensions | 35x41x662 |
| Material | Painted aluminum / PMMA / PC Lexan 943A |
| Connections | M12-4 poles + M12-5 poles (emitter) M12-8 poles + M12-5 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 35x41,2x664 mm |
| Operating Temperature | 0…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| SG BODY COMPACT MUTING safety multiple beam type 4 2 beams h | 500 mm edm man/auto muting |
| Standard "L" Mounting Brackets | 4 pcs kit |
| Nominal sensing distance | 0,5 … 50 m |
| controlled height | 500 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Available functions | Manual/Automatic Restart, EDM, L/T Muting, Override |
| Functions | Body protection 2 beams muting |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (880 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 2,2W (no load) |
| Power Consumption - Emitter | ≤ 0,9W |
| Equivalent Resistive Load | ≥ 56Ω |
| Capacitive Load | ≤ 65nF |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Long operating distance | up to 50 m |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
