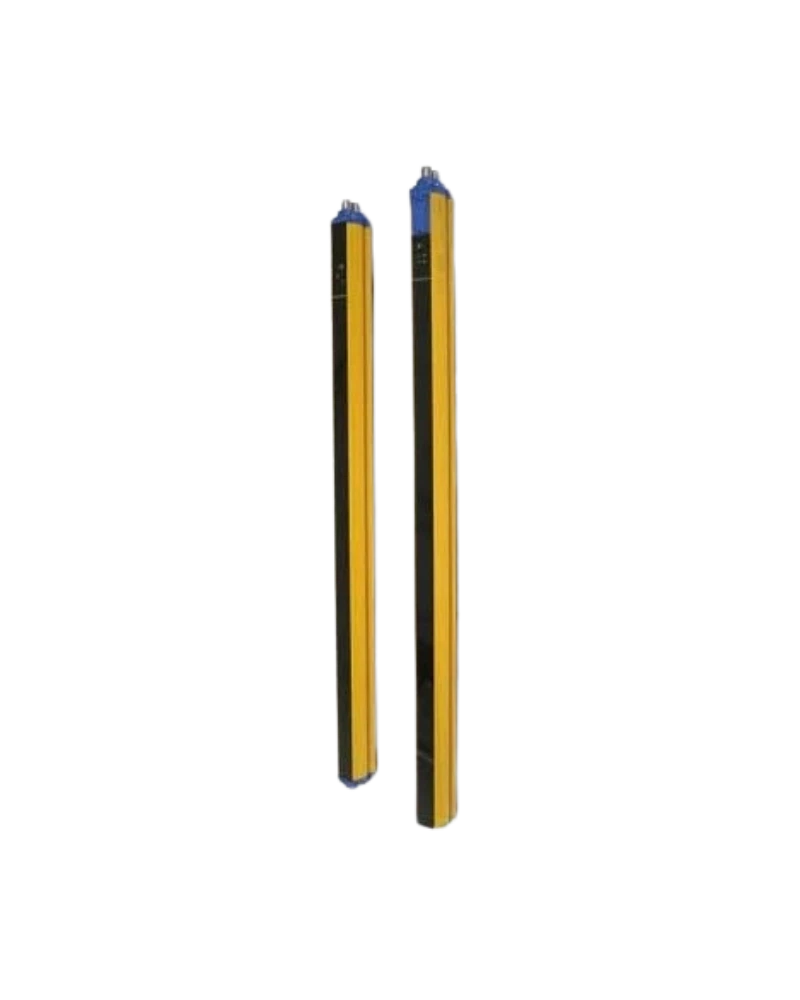

The Safety Light Curtains - SG BODY REFLECTOR BASE / MUTING - 957951100 (SG4-RDB2) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
Engineers can reduce wiring and installation costs by using one active and one passive unit. This configuration ensures reliable operation in industrial environments while maintaining robust performance across a wide temperature range. The system is engineered for applications where precise motion detection is critical, with a storage temperature range of 25°C to +70°C.
The documented configuration includes Resolution: 500mm; SG BODY REFLECTOR BASE 2 beams h: 500 mm passive side; Response time: n/a ms; Emission: n/a.
The documented configuration includes Load current: ≤ 500mA each output; Output type: n/a; Operating Voltage: n/a; Cabel Length (Power Supply/Output): n/a; Output type: Response time; Operating Voltage: Load current; ≤ 500mA each output: Emission; Power Consumption - Receiver: n/a.
The documented configuration includes Power Consumption - Emitter: n/a; Power Consumption - Receiver: Power Consumption - Emitter.
The documented configuration includes Dimensions: 52x57x520; Material: Painted aluminum / PMMA / PBT Valox 508; Storage temperature: -25…+ 70°C; Dimensions: 52x56,9x580,5 mm; Operating Temperature: 0…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; controlled height: 500 mm.
The documented configuration includes Humidity: 15 … 95 % (no condensation).
The documented configuration includes Functions: Body protection 2 beams; Function Principle: Passive side; Available functions: Passive Unit; Application: Function Principle.
The documented configuration includes Effective Aperture Angle: ≤ ±2,5°; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29); Connections: n/a; Connections: Storage temperature.
| Feature | Specification |
|---|---|
| Resolution | 500mm |
| Dimensions | 52x57x520 |
| Material | Painted aluminum / PMMA / PBT Valox 508 |
| Storage temperature | -25…+ 70°C |
| Dimensions | 52x56,9x580,5 mm |
| Operating Temperature | 0…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| controlled height | 500 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Functions | Body protection 2 beams |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Interference to external light | According to IEC 61496-2 |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| SG BODY REFLECTOR BASE 2 beams h | 500 mm passive side |
| Output type | n/a |
| Response time | n/a ms |
| Operating Voltage | n/a |
| Cabel Length (Power Supply/Output) | n/a |
| Connections | n/a |
| Output type | Response time |
| Operating Voltage | Load current |
| ≤ 500mA each output | Emission |
| Connections | Storage temperature |
| Function Principle | Passive side |
| Available functions | Passive Unit |
| Emission | n/a |
| Power Consumption - Receiver | n/a |
| Power Consumption - Emitter | n/a |
| Application | Function Principle |
| Power Consumption - Receiver | Power Consumption - Emitter |
