The Safety Light Curtains - SG BODY REFLECTOR BASE / MUTING - 957951060 (SG4-RB2L-050-OO-W) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

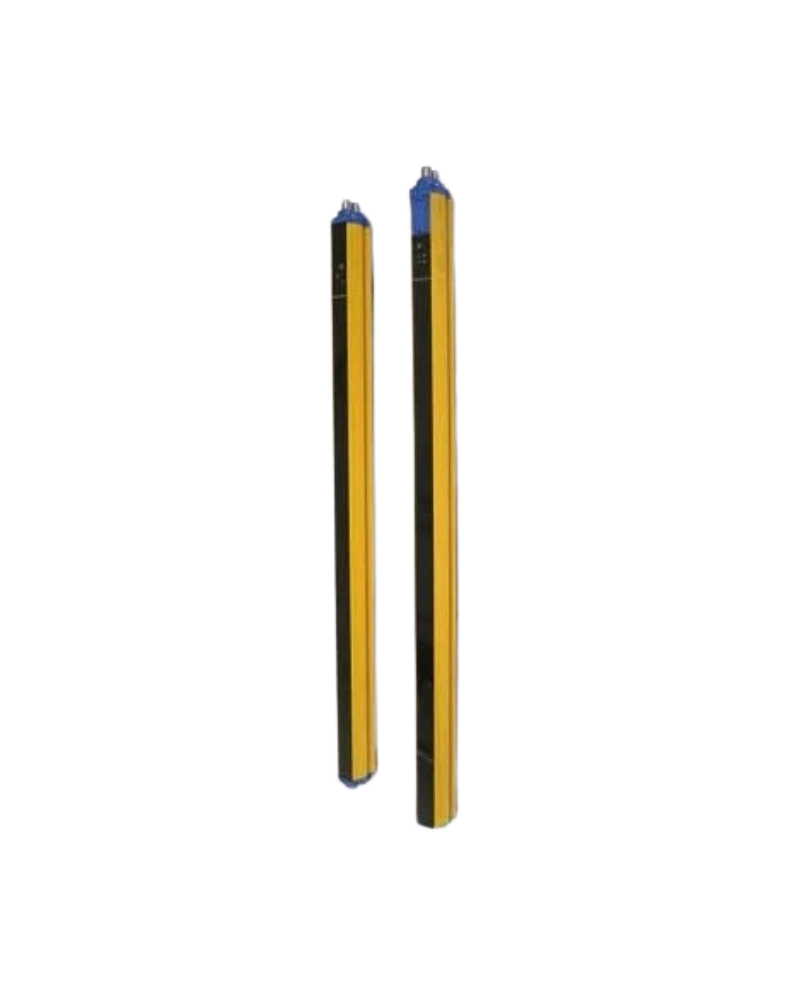

The Datasensing Safety Light Curtain SG BODY REFLECTOR BASE / MUTING model 957951060 (SG4-RB2L-050-OO-W) is a high-precision safety device designed for industrial automation. It features a 500mm resolution with 2 x PNP-NO OSSD safety outputs (EDM) to ensure reliable machine safety.
Engineered for robust performance, this unit operates within a storage temperature range of -25°C to +70°C. The active unit includes M12-12 poles and M12-5 poles connections, enabling simplified installation with one active and one passive unit to reduce wiring and costs.
The documented configuration includes Resolution: 500mm; Response time: 11 ms; SG BODY REFLECTOR MUTING safety multiple beam type 4 2 beams h: 500 mm edm man/auto muting active side L arms; Nominal sensing distance: 0,5 … 3 m; Emission: Infrared LED (950 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 70m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 6,5W (no load); Power Consumption - Emitter: n/a; Power Consumption - Emitter: Cabel Length (Power Supply/Output).
The documented configuration includes Dimensions: 52x57x609; Material: Painted aluminum / PMMA / PBT Valox 508; Storage temperature: -25…+ 70°C; Dimensions: 52x56,9x609,35 mm; Operating Temperature: 0…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; controlled height: 500 mm.
The documented configuration includes Humidity: 15 … 95 % (no condensation).
The documented configuration includes Available functions: Manual/Automatic Restart, EDM, L Muting, Override, Muting Enable, Muting Filter; Functions: Body protection 2 beams muting; Function Principle: Transceiver (Active side); Application: Function Principle.
The documented configuration includes Connections: M12-12 poles + M12-5 poles (Active Unit); Effective Aperture Angle: ≤ ±2,5°; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 500mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 11 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 70m |
| Dimensions | 52x57x609 |
| Material | Painted aluminum / PMMA / PBT Valox 508 |
| Connections | M12-12 poles + M12-5 poles (Active Unit) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 52x56,9x609,35 mm |
| Operating Temperature | 0…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| SG BODY REFLECTOR MUTING safety multiple beam type 4 2 beams h | 500 mm edm man/auto muting active side L arms |
| Nominal sensing distance | 0,5 … 3 m |
| controlled height | 500 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Available functions | Manual/Automatic Restart, EDM, L Muting, Override, Muting Enable, Muting Filter |
| Functions | Body protection 2 beams muting |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (950 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 6,5W (no load) |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Function Principle | Transceiver (Active side) |
| Power Consumption - Emitter | n/a |
| Application | Function Principle |
| Power Consumption - Emitter | Cabel Length (Power Supply/Output) |
