Explore performance details, construction highlights, applications, and technical information in one clear overview.

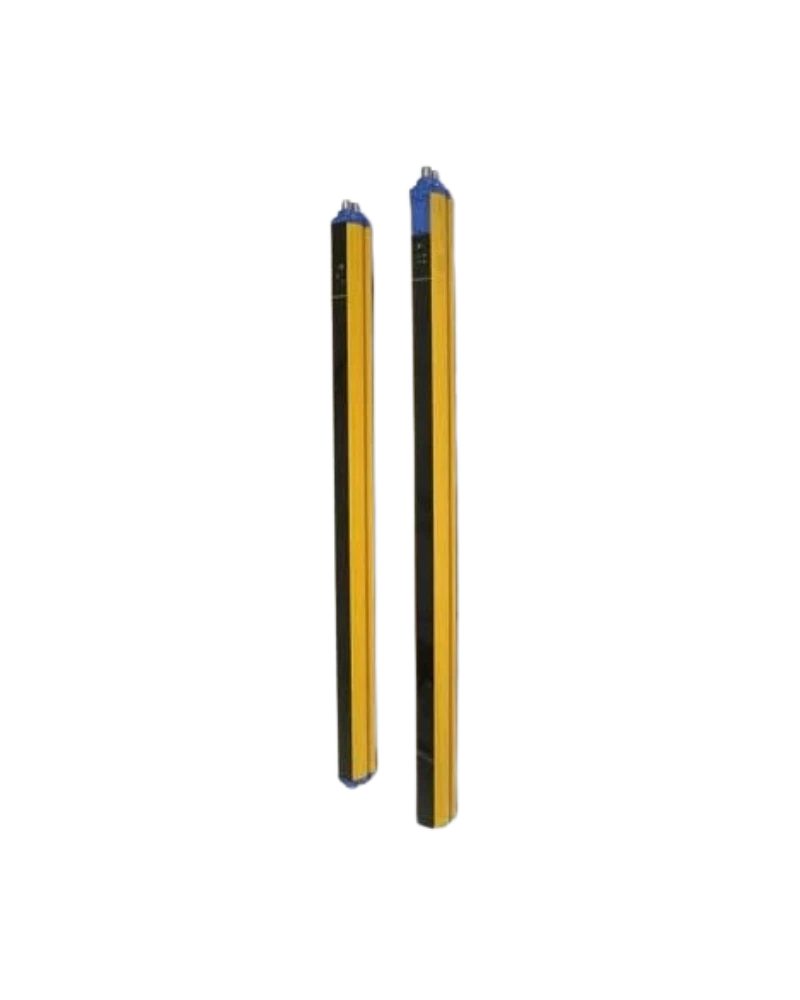

The Safety Light Curtains - SG BODY REFLECTOR BASE / MUTING - 957951000 (SG4-RB2-050-OO-E) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing Safety Light Curtain model SG BODY REFLECTOR BASE / MUTING - 957951000 (SG4-RB2-050-OO-E) provides precise industrial safety monitoring with a 500mm resolution. This active safety device features two PNP-NO OSSD outputs with EDM capability, ensuring reliable safety interlocks in demanding environments.
Engineered for industrial use, this unit operates within a storage temperature range of -25°C to +70°C. The active unit design reduces wiring and installation costs through a single active and passive unit configuration.
The documented configuration includes Resolution: 500mm; Response time: 11 ms; SG BODY REFLECTOR BASE safety multiple beam type 4 2 beams h: 500 mm edm man/auto active side; Nominal sensing distance: 0,5 … 8 m; Emission: Infrared LED (950 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 70m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 6,5W (no load); Power Consumption - Emitter: n/a; Power Consumption - Emitter: Cabel Length (Power Supply/Output).
The documented configuration includes Dimensions: 52x57x606; Material: Painted aluminum / PMMA / PBT Valox 508; Storage temperature: -25…+ 70°C; Dimensions: 52x56,9x606,35 mm; Operating Temperature: 0…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; controlled height: 500 mm.
The documented configuration includes Humidity: 15 … 95 % (no condensation).
The documented configuration includes Available functions: Manual/Automatic Restart, EDM, Active Unit; Functions: Body protection 2 beams; Function Principle: Transceiver (Active side); Application: Function Principle.
The documented configuration includes Connections: M12-8 poles (Active Unit); Effective Aperture Angle: ≤ ±2,5°; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 500mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 11 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 70m |
| Dimensions | 52x57x606 |
| Material | Painted aluminum / PMMA / PBT Valox 508 |
| Connections | M12-8 poles (Active Unit) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 52x56,9x606,35 mm |
| Operating Temperature | 0…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| SG BODY REFLECTOR BASE safety multiple beam type 4 2 beams h | 500 mm edm man/auto active side |
| Nominal sensing distance | 0,5 … 8 m |
| controlled height | 500 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Available functions | Manual/Automatic Restart, EDM, Active Unit |
| Functions | Body protection 2 beams |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (950 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 6,5W (no load) |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Function Principle | Transceiver (Active side) |
| Power Consumption - Emitter | n/a |
| Application | Function Principle |
| Power Consumption - Emitter | Cabel Length (Power Supply/Output) |
