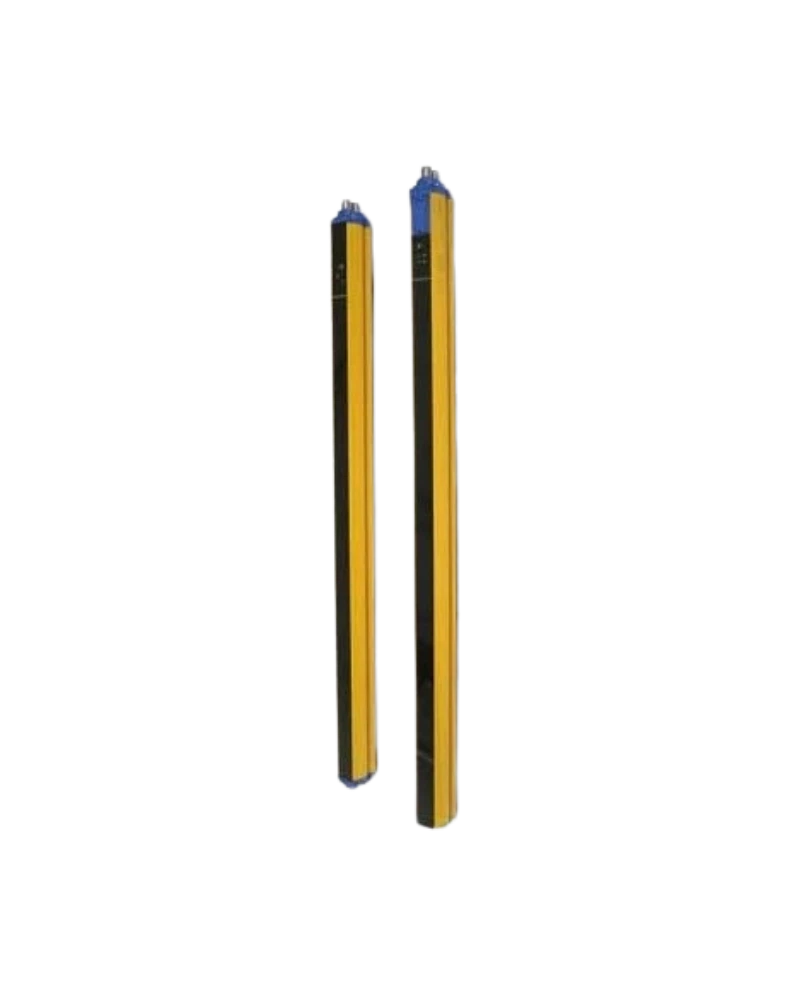

The Safety Light Curtains - SG4 Base - 957901190 (SG4-30-120-OO-E) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing Safety Light Curtain SG4-30-120-OO-E (957901190) is a high-precision safety device designed for industrial automation. It provides 30mm resolution with 2x PNP-NO OSSD safety outputs and a 35ms response time, ensuring reliable safety interlocks in demanding environments.
The documented configuration includes Resolution: 30mm; Response time: 35 ms; Nominal sensing distance: 0,2 … 19 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 3,5W (no load); Power Consumption - Emitter: ≤ 2,5W.
The documented configuration includes Dimensions: 33x37x1283; Storage temperature: -25…+ 70°C; Dimensions: 32,3x36,9x1283,2 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; Standard "L" Mounting Brackets: 6 pcs kit.
The documented configuration includes controlled height: 1200 mm; Humidity: 15 … 95 % (no condensation); Material: Painted aluminum / PMMA / PC MAKROLON; Material: Connections.
The documented configuration includes SG4 BASE safety light curtain type 4 res = 30 mm h: 1200 mm edm man/auto coded; Available functions: Manual/Automatic Restart, EDM; Functions: Hand protection res. 30 mm; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-5 poles (emitter) M12-5 poles (receiver); Effective Aperture Angle: ≤ ±2,5°; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 30mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 35 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 50m |
| Dimensions | 33x37x1283 |
| Connections | M12-5 poles (emitter) M12-5 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 32,3x36,9x1283,2 mm |
| Operating Temperature | -10…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| Operating Temperature | 10…+55°C |
| SG4 BASE safety light curtain type 4 res = 30 mm h | 1200 mm edm man/auto coded |
| Standard "L" Mounting Brackets | 6 pcs kit |
| Nominal sensing distance | 0,2 … 19 m |
| controlled height | 1200 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Available functions | Manual/Automatic Restart, EDM |
| Functions | Hand protection res. 30 mm |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 3,5W (no load) |
| Power Consumption - Emitter | ≤ 2,5W |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Material | Painted aluminum / PMMA / PC MAKROLON |
| Material | Connections |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
