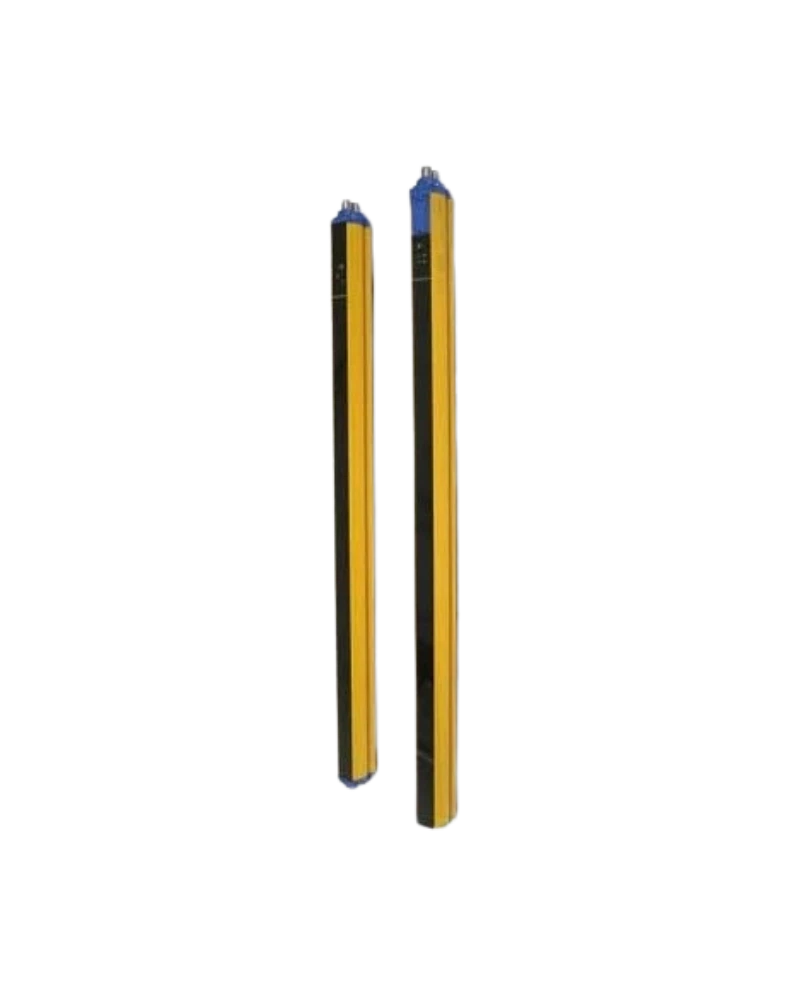

The Safety Light Curtains - SG4 Base - 957901000 (SG4-14-015-OO-E) is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
Engineered for industrial use, this safety light curtain features M12-5 pole connections for both emitter and receiver, ensuring secure and reliable installation. Its robust construction supports storage temperatures from -25°C to +70°C, making it suitable for extreme conditions.
The documented configuration includes Resolution: 14mm; Response time: 9 ms; Nominal sensing distance: 0,2 … 6 m; Emission: Infrared LED (850 nm wavelength).
The documented configuration includes Output type: 2 x PNP-NO (OSSD safety output) with EDM; Operating Voltage: 24 Vdc ± 20%; Cabel Length (Power Supply/Output): ≤ 50m; Load current: ≤ 500mA each output; Power Consumption - Receiver: ≤ 3,5W (no load); Power Consumption - Emitter: ≤ 2,5W.
The documented configuration includes Dimensions: 33x37x233; Storage temperature: -25…+ 70°C; Dimensions: 32,3x36,9x233,3 mm; Operating Temperature: -10…+55°C; Mechanical Protection: IP65; Storage temperature: 25…+ 70°C; Operating Temperature: 10…+55°C; Standard "L" Mounting Brackets: 4 pcs kit.
The documented configuration includes controlled height: 150 mm; Humidity: 15 … 95 % (no condensation); Material: Painted aluminum / PMMA / PC MAKROLON; Material: Connections.
The documented configuration includes SG4 BASE safety light curtain type 4 res = 14 mm h: 150 mm edm man/auto coded; Available functions: Manual/Automatic Restart, EDM; Functions: Finger protection res. 14 mm; Function Principle: Emitter + Receiver; Application: Function Principle.
The documented configuration includes Connections: M12-5 poles (emitter) M12-5 poles (receiver); Effective Aperture Angle: ≤ ±2,5°; Type: Type 4 safety light curtain (A/M); Interference to external light: According to IEC 61496-2; Vibrations: Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6); Shocks: 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29).
| Feature | Specification |
|---|---|
| Resolution | 14mm |
| Output type | 2 x PNP-NO (OSSD safety output) with EDM |
| Response time | 9 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Cabel Length (Power Supply/Output) | ≤ 50m |
| Dimensions | 33x37x233 |
| Connections | M12-5 poles (emitter) M12-5 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Dimensions | 32,3x36,9x233,3 mm |
| Operating Temperature | -10…+55°C |
| Mechanical Protection | IP65 |
| Storage temperature | 25…+ 70°C |
| Operating Temperature | 10…+55°C |
| SG4 BASE safety light curtain type 4 res = 14 mm h | 150 mm edm man/auto coded |
| Standard "L" Mounting Brackets | 4 pcs kit |
| Nominal sensing distance | 0,2 … 6 m |
| controlled height | 150 mm |
| Effective Aperture Angle | ≤ ±2,5° |
| Available functions | Manual/Automatic Restart, EDM |
| Functions | Finger protection res. 14 mm |
| Type | Type 4 safety light curtain (A/M) |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 3,5W (no load) |
| Power Consumption - Emitter | ≤ 2,5W |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Humidity | 15 … 95 % (no condensation) |
| Material | Painted aluminum / PMMA / PC MAKROLON |
| Material | Connections |
| Function Principle | Emitter + Receiver |
| Application | Function Principle |
